Laser Diameter Measuring Gauge
US$ 1,700 - 1,900
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
worldsafety
Model Number:
ST-05B
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wire/pipe/tube Laser Diameter Measuring InstrumentUS$ 1,800 - 2,100MOQ: 1 Unit -
Wire/pipe/tube Laser Diameter Measuring DeviceUS$ 1,800 - 2,100MOQ: 1 Unit
-
Wire/Pipe/Tube Laser Diameter Measuring GaugeUS$ 1,800 - 2,100MOQ: 1 Unit
-
Wire/Pipe/Tube Laser Diameter Measurement Quality ChoiceUS$ 1,800 - 2,100MOQ: 1 Unit
-
Wire/Pipe/Tube Laser Diameter Measurement ToolsUS$ 1,800 - 2,100MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
worldsafety
Model Number
ST-05B

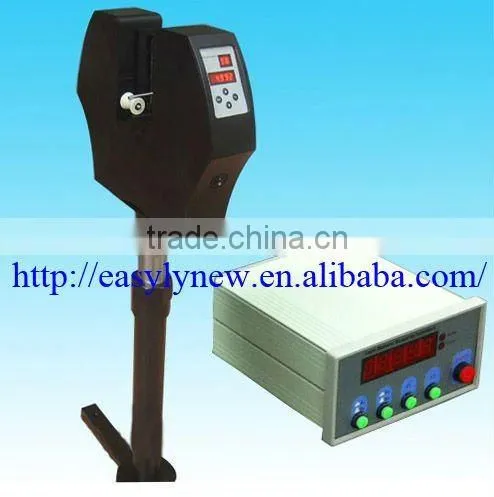

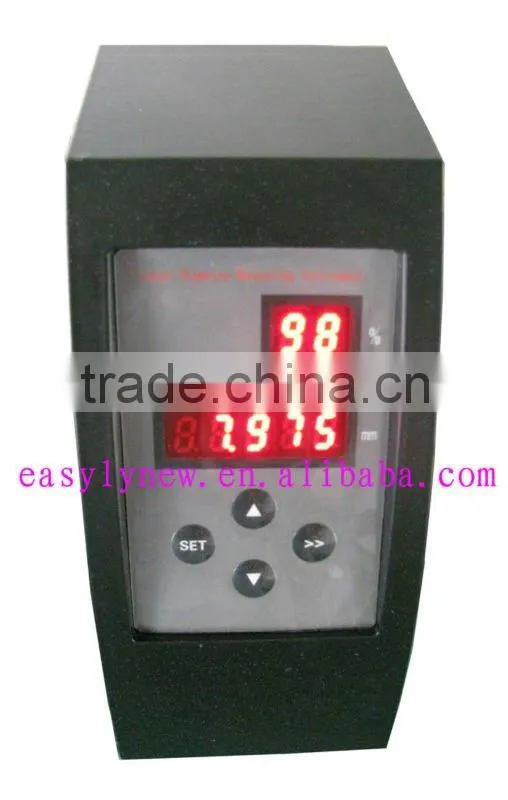

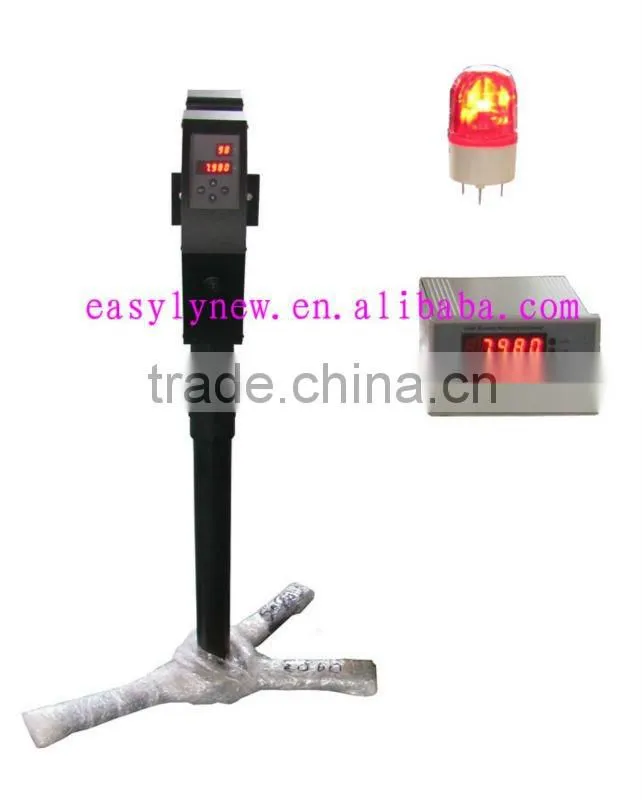

| ST-05B Laser Diameter Measuring gauge | |||
|
Features: Laser two-dimensional scanning: Two bunches of lasers to do outer diameter measurement of non-contact ,non-damage from the different angle, it can effectively eliminate error caused by work vibration; DSP data processing technique: The sampling speed is quick ,precision is high and the performance is stable; The reaction control integration module with PID constitute the online outer diameter closed loop observation and control system (e.g.: diameter of the object measured is slight big or small, transmission rate is big or small), which can change the transmission rate to control the outer diameter be tested through adjusting the power supply with PID. Its easy to operate, user can setup a boundary numerical value, main engine will give an alarm automatically while the test result exceeds the set value. | |||
| Introduction: | |||
| The ST-05B Laser Diameter Instrument is a high accuracy one without contacting designed on the basis of the laser scan measuring principle. The 2-dimension measuring mode is applied to the instrument, and the 2-way laser beam is in the positive cross design in the measuring field, thus effectively eliminating testing errors caused by work piece shocks. It is special suitable for real-time measurement of the production field, and widely used in the test of round wire materials such as communication cables, optical cables, co-axial cables and power cables, and the test of various kinds of other round work piece diameters. | |||
| Technology Parameter: | |||
| Measure Range(mm) | 0.2~30 | ||
| Measure Precision(um) | ±2.0 | ||
| Sensitivity(um) | 1.0 | ||
| Feedback Output | DC-2.5V~2.5V | ||
| Relative Humidity | no dew than 85% | ||
| Environment Temperature | 4~40 | ||
| Power Consumption(W) | 50 | ||
| Scanning speed(m/s) | 50 | ||
| Packing Specification(mm) | Main Engine:441×170×546 | ||
| Product Allocation | Laser Diameter Measuring Instrument:1 unit; Calibrating stand:1 set | ||
