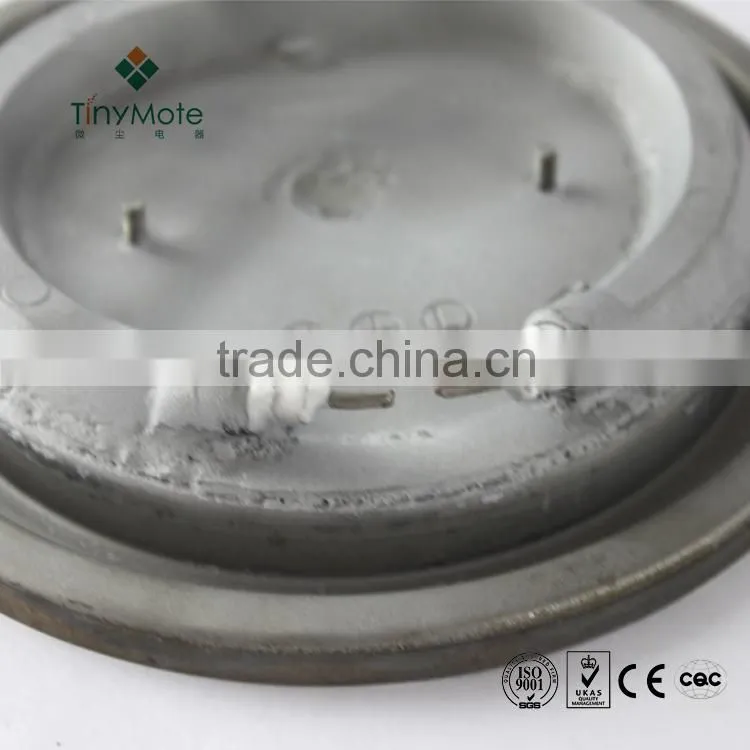

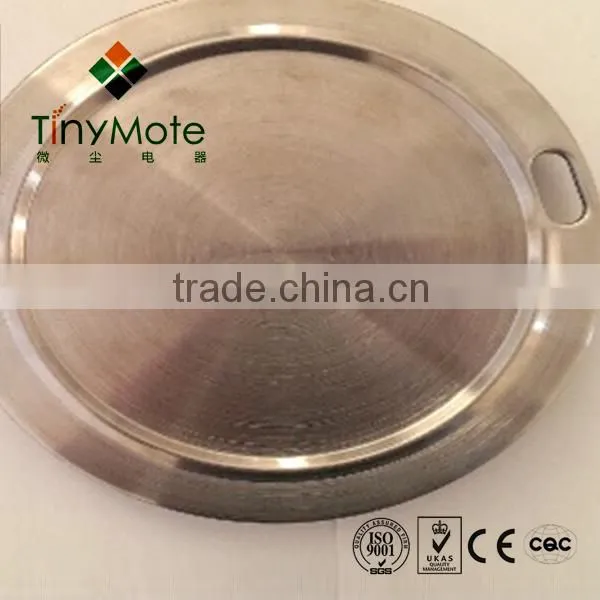

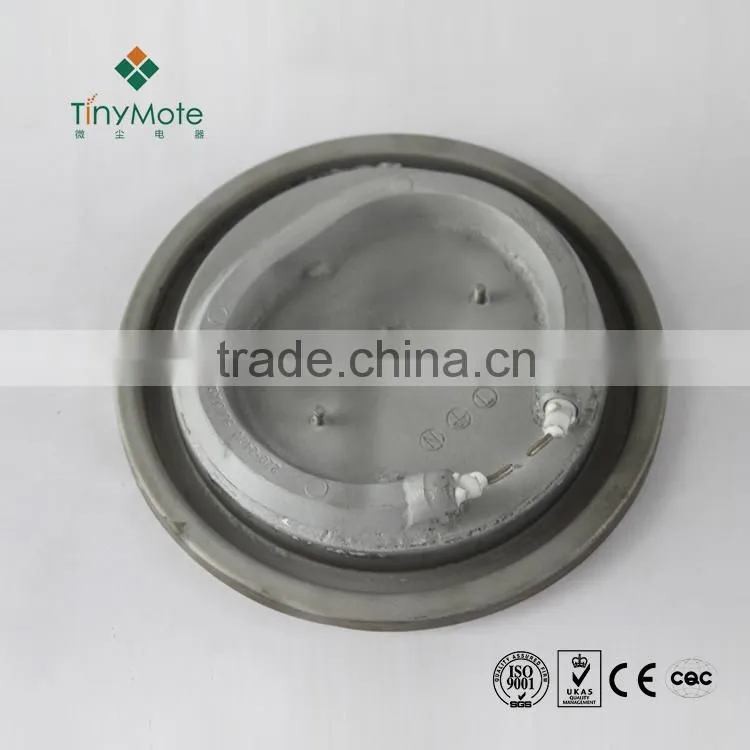

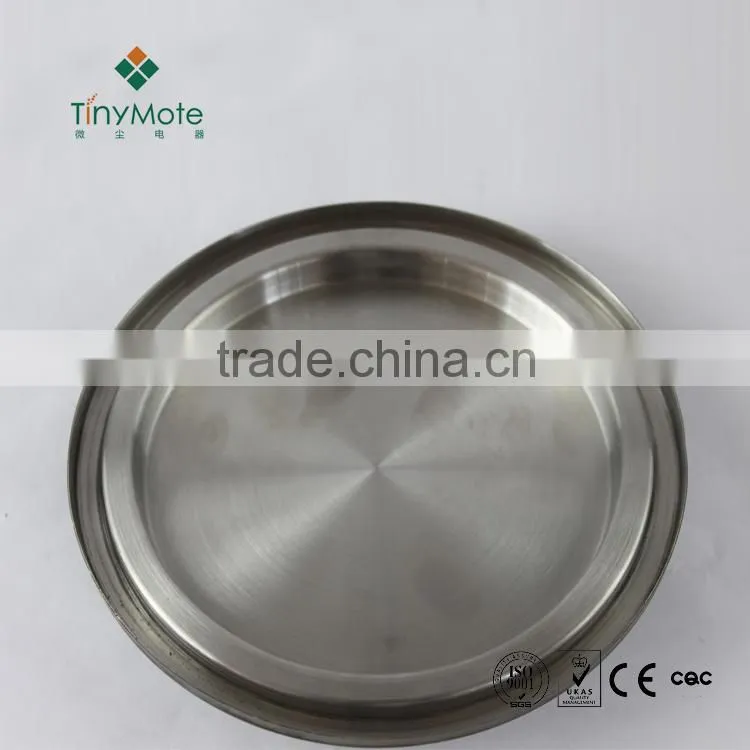

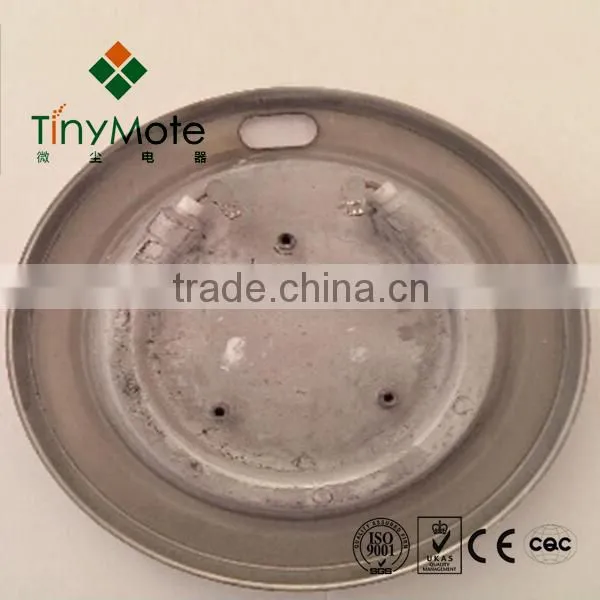

Help CenterJiangsu Casting Heating Plate for Electric Kettle
Related Products
-
Aluminum Heating Plate for KettleUS$ 2 - 10MOQ: 1000 Pieces -
Stainless Steel Kettle Heating Plate 1500W 230VNegotiableMOQ: 1000 Pieces
-
Customized Stainless Steel Electric Kettle Heating PlateUS$ 2 - 10MOQ: 1000 Pieces
-
Stainless Steel Kettle Heating Plate 2000W 230VNegotiableMOQ: 1000 Pieces
-
Stainless Steel Kettle Heating Plate 1500W 230VNegotiableMOQ: 1000 Pieces
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||
| Packing | |||||||||||||||||||||||||||||||||||||||||||||
|
| |||||||||||||||||||||||||||||||||||||||||||||
Technical Parameter | |
Electric kettle heating plate | |
Body Material |
SUS304;Heating pipe material:manganese-aluminum |
Pipe Size |
Φ11.0 |
Tube wall thickness |
1.0~1.5mm |
Terminal Size |
187#terminal plug or direct wire welding |
Thermostat system |
OTTER control,Satisfying the compatibility test of thermostat |
Watt |
Customized |
Voltage |
Customized |
Overall Dimensions |

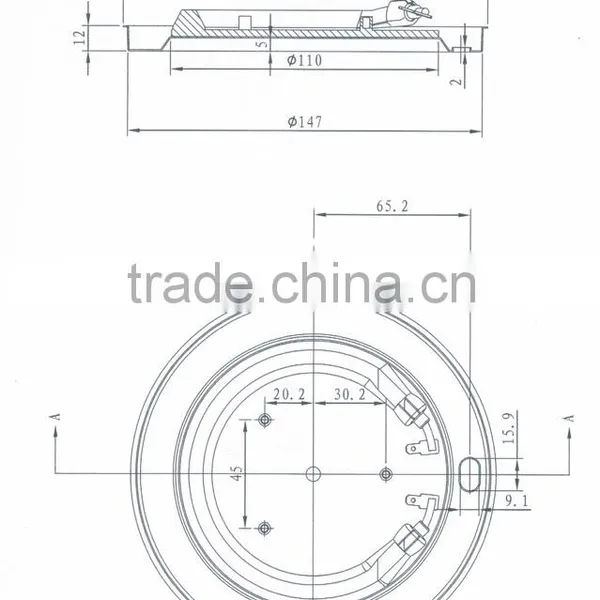

Round type,OEM,design in order.OD:147±0.5mm |
Electrical Performance |
AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA |
Life Time |
Under the 1.15 rated power,dry boiled more than 100 hours,the thermostat will continuously open circuit loop ,test after cooling should satisfy the cold insulation resistance and pressure requirement,heating plate without cracking.Under the 1.15 rated power,dry quenching more than 100 times,test after cooling should satisfy the cold insulation resistance and pressure requirement,heating plate without cracking.Under rated voltage,add 1.2L room temperature water,boiled water more than 10000 times in cycle,test heating plate work in normal. |
Warranty |
TWO year |
High- pot test |
1500V/2mA/1S |
Resistance insulation |
100MΩ MIN |
Leakage current |
0.5mA MAX |
Surface Treatment |
Sanding or mirror lighting,salt spray test without rust |
Hydraulic testing |
Wire rod terminal withstand 8kg tension without loose,M3 thread withstand 6kg torsion 5 times without screw slippage. |
Flange material |
SUS304 or SUS430 |
Welding of flange technique |
Flange and pipe joint with tinning welding |
|
1.Q: Are you a trading company or .a factory? A:We are a factory. |
|
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Changshu of Suzhou city, Jiangsu province, China. It is about 100 km far from Changshu to Shanghai,drive only need 2 hours to our factory. All the client, from home or abroad, are warmly welcome to visit us. |
|
3.Q:How can I get some samples? A:We are honored to offer you samples,will send to you by express. |
|
4.Q:Are your products customized? A:Yes, the products in the website are only common type or the customized types ordered by our customers, we can supply products according to your samples and drawings. |
|
5.Q: How does your factory control quality? A:Quality is priority, our QC always keep step to quality control during production process,all of the orders will be delivery after QC passed. |
