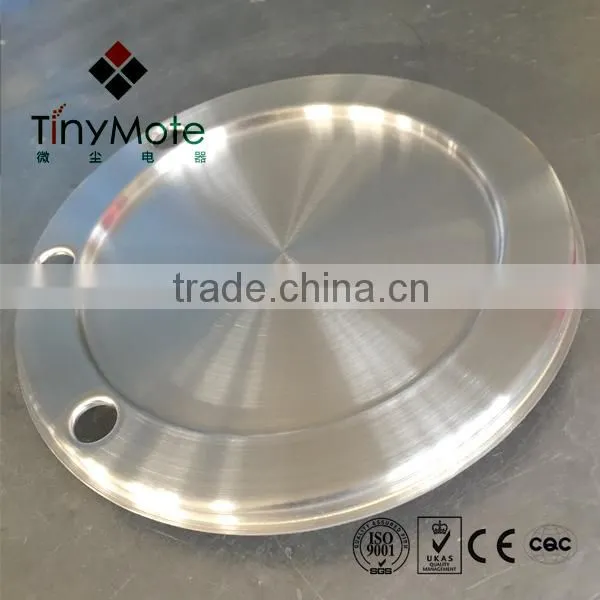

Help CenterStainless Steel Heating Plate for Electric Kettle1800W 230V
Related Products
-
Popular and Widely Used Custom Made Aluminum Plate Heating ElementUS$ 2 - 10MOQ: 10 Pieces -
Custom Made Kettle Heating PlateUS$ 2 - 10MOQ: 1000 Pieces
-
Electric Water Boiler Heating Element With Aluminum Heating PlateUS$ 1 - 5MOQ: 1 Piece
-
110V 220V Heating Element for Kettle ULUS$ 2 - 10MOQ: 10 Pieces
-
Aluminium Heating PlateUS$ 5 - 10MOQ: 100 Pieces
| |||||||
|
Changshu Tinymote Electrical Appliance Co., Ltd. is the professional manufacturer of heating element with more than 10 years experience.Our factory total area 3000 square meters,which is located at Suzhou City, near by Shanghai,only 50 kms far from our factory to Shanghai and 200 kms to Ningbo.
Our main products are water heating element for water heater, solar energy heating element and ALCI( capability of leakage protective plugs.).we introduced many advanced technology and equipment so that we can provide higher quality product to customer, and the delivery time will be shorter. Our products are accpeted by many customer.
| |||||||
| |||||||
| Our Product Experience | |||||||
| Tiny mote is the professional manufacturer of electric heater,with experienced design team, specialized in the production of high quality electric heating element, which mainly sales at: South Africa,the Middle East,Latin America and so on. | |||||||
| |||||||
|
|
Technical Parameter | |
stainless steel heating plate for electric kettle | |
Plate Material |
SUS304 |
Heating pipe material |
Manganese-aluminum |
Pipe Size |
Φ11.0mm |
Tube Thickness |
1.0~1.5mm |
Terminal Size |
187#terminal plug or direct wire welding |
Thermostat Flatness |
≤0.4mm |
Thermostat system |
OTTER control,Satisfying the compatibility test of thermostat |
Watt |
Customized |
Voltage |
Customized |
Overall Dimensions |
OEM, customized in drawing or samples. |
Electrical Performance |
AC1500V/0.5mA.3S;DC500V 100MΩ;Leakage current<0.5mA |
Life Time |
Under the 1.15 rated power,dry boiled more than 100 hours,the thermostat will continuously open circuit loop ,test after cooling should satisfy the cold insulation resistance and pressure requirement,heating plate without cracking.Under the 1.15 rated power,dry quenching more than 100 times,test after cooling should satisfy the cold insulation resistance and pressure requirement,heating plate without cracking.Under rated voltage,add 1.2L room temperature water,boiled water more than 10000 times in cycle,test heating plate work in normal. |
Warranty |
TWO year |
High- pot test |
1500V/2mA/1S |
Resistance insulation |
100MΩ MIN |
Leakage current |
0.5mA MAX |
Surface Treatment |
Sanding or mirror lighting,salt spray test without rust |
Wire rod terminal |
Withstand 8kg tension without loose |
The concentricity of installation |
≤0.3m |
Connection |

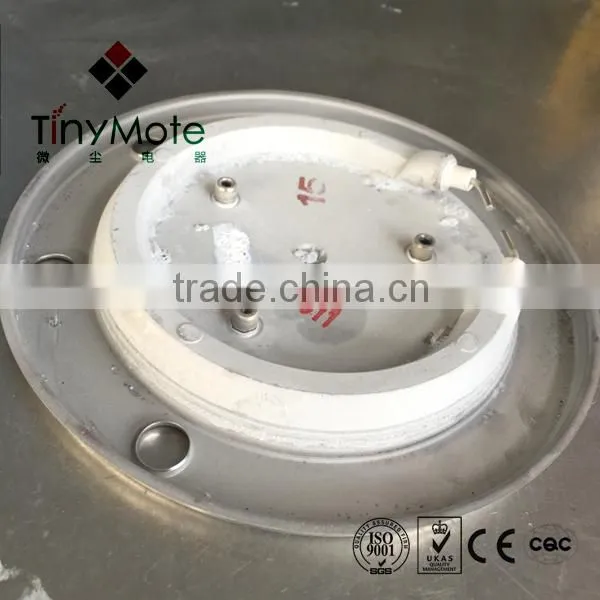

Heating pipe and aluminum sheet brazing joint with composite bottom steel plate |
| ||||||||
| ||||||||
| ||||||||
|
|
|
|
1.Q: Are you a trading company or .a factory? A:We are a factory. |
|
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Changshu of Suzhou city, Jiangsu province, China. It is about 50 km far from Changshu to Shanghai,drive only need 30 mins to our factory. All the client, from home or abroad, are warmly welcome to visit us. |
|
3.Q:How can I get some samples? A:We are honored to offer you samples,will send to you by express. |
|
4.Q:Are your products customized? A:Yes, the products in the website are only common type or the customized types ordered by our customers, we can supply products according to your samples and drawings. |
|
5.Q: How does your factory control quality? A:Quality is priority, our QC always keep step to quality control during production process,all of the orders will be delivery after QC passed. |
