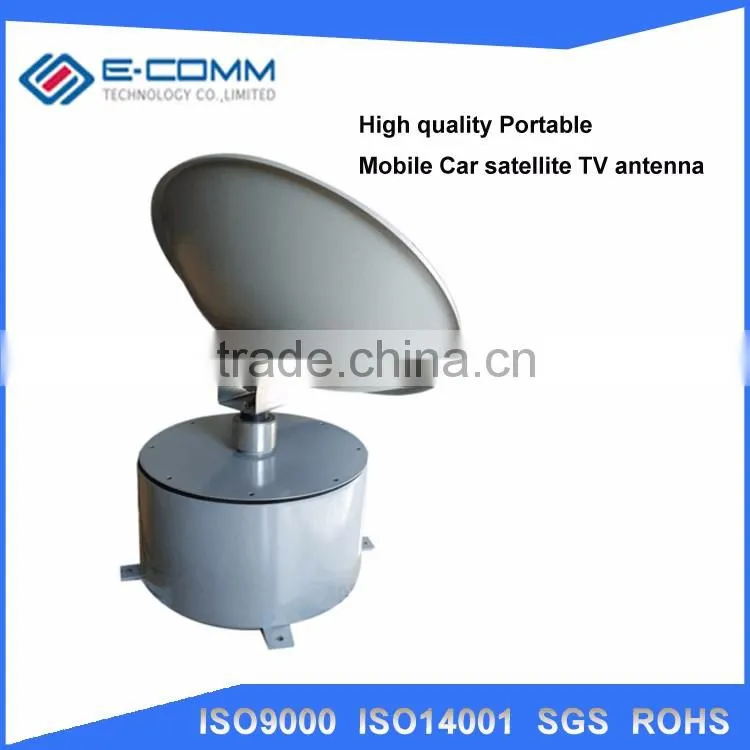

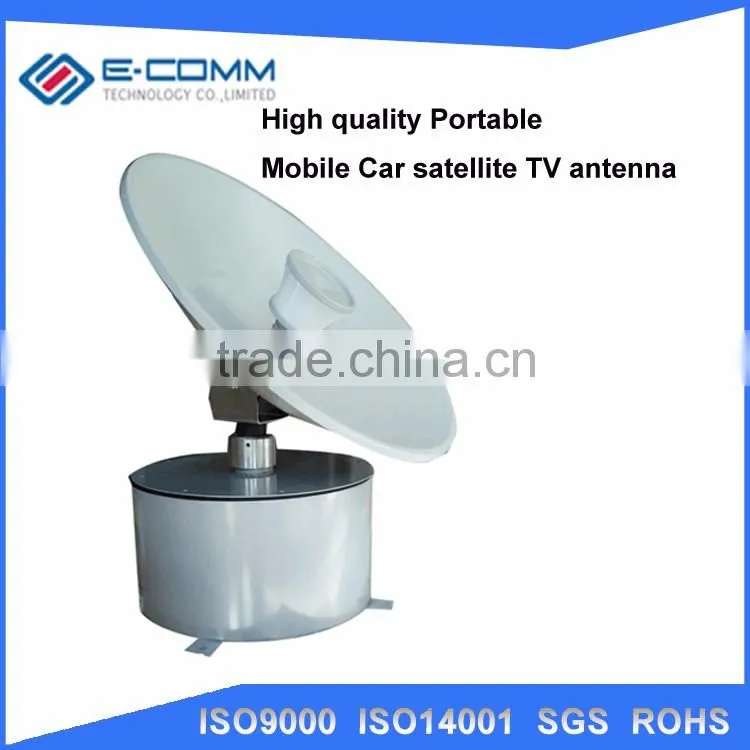

Hot sale!! mobile satellite antenna for car E-YM180 with gyro tracking and stability receiving
The antenna has three motors to control the elevation, the azimuth and the polarization. when the ship is parking or driving. There are two Gyro. in the PCB, they can read the ship drive locus,then adjust the antenna to direct the satellite. We can write four satellites into the controller. Meanwhile, customer can increase or change one satelliteby himself. GPS included.
Feature:
1 It can quickly track satellite in 60 seconds at first time.
2.It can output MPEG2,MPEG4,H.264 Type video picture, compatible for DVB-S2.
3. It can receive satellite TV in the area over 52dBw.
4.It include three motors to control antenna's azimuth,elevation and polarization.
5. Build in GPS.
6.Gyro. included, it can record the car's driving locus. Then let the antenna track satellite immediately.
7.Easy installation for you.
Specification:
Item |
Content |
Item |
Content |
Antenna type |
32cm dish |
weight |
5.2kg |
Mini. EIRP |
52dBw |
Workingtemperature |
-20℃~5 5℃ |
Frequency range |
10.75-12.75GHz Ku band |
Accessory |
IDU,cable |
Antenna gain |
31dBi |
Update port |
USB2.0 |
polarization |
RHCP/VHCP,V&H |
shell material |
plastic |
Track speed |
50°/s |
Polarization angle |
-45°~+45° |
Tracking type |
2-axis |
Waterproof |
IPX65 |
Elevation range |
10°~135° |
Install type |
bolt |
Azimuth range |
750° |
Package material |
paper |
GPS |
Build in |
Package weight |
25kg |
Power supply |
AC210-240V 0.5A |
Package dimension (L*W*H) |
82cm * 82cm * 100cm |
Diameter x height |
Φ40cm x 35 cm |
|
|

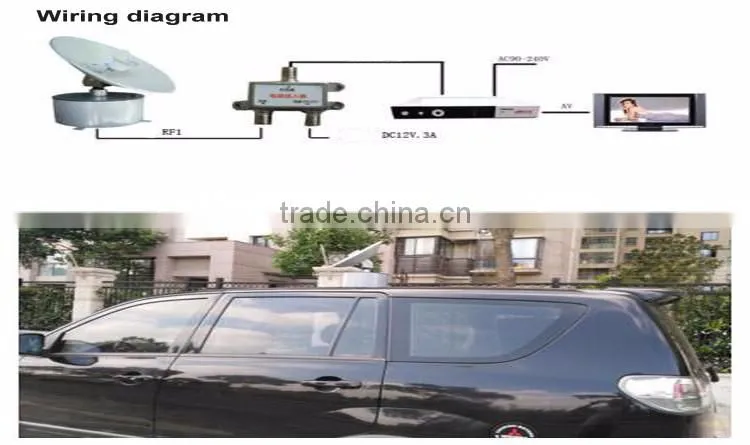

Connection figure:
Whether your application is commercial or leisure, with us, you never
have to miss out on your favorite programs, regardless of whether your
vessel is at anchor or pounding through the waves!
Can use for anywhere around the world!
Ours workshops:
We have assembly work shop with 9 lines
Singinal Sample room with more than 20 peoples
Hard ware work shop with 5 lathe lines
Plastic injection workshop with 5lines
Wire cutting work shop with 4lines
Singile product tesiting room with the QA team
The most Professional Lab
The professional QA team
The most professional RD team.
The most sales team
