1.Description of Borehole Treatment - ultrafiltration RO Water Treatment Systems
UF system is composed of high-pressure pump, UF system and chemical cleaning device.
During running, UF membrane may form some deposit and chemical cleaning device is equipped for periodical cleaning to ensure stable running of UF system.
High-pressure pump is the power source of UF system. To UF system on sound running condition, high-pressure pump equips inlet/outlet pressure switch. When inlet pressure is less than set value (water lack P‰¤ 0.05Mpa) or outlet pressure is higher than set value, pressure switch send signal to PLC programming system and high-pressure pump and UF system will stop in avoidance of destroying to UF membrane because of water pressure.
UF system can wash surface of UF membrane by low-pressure timely and periodically.
RO filtration is achieved by using high pressure to overcome the osmotic pressure and drive pure water out of the concentrated solution through semipermeable membrane. RO filtration removes suspended solids, large ions, bacteria, viruses, colloids, organic matter, and up to 98% of soluble salts. It can be used for several purposes from basic water purification to separating and concentrating various solutions for manufacturing or research applications. RO filtration is an advanced treatment method with low operating cost, high efficiency, and small footprint.
2.Flow chart of Borehole Treatment - ultrafiltration RO Water Treatment Systems
3.Feature o Borehole Treatment - ultrafiltration RO Water Treatment Systems
| 3.1.Imported parts over 90% |
| 3.2.Fully-auto system; auto stop when water is full and auto start when no water. Auto backwash.IC microcomputer control system, auto backwash RO film, raw water and well water conductivity is displayed on line |
| 3.3.Well water conductivity d≤10us/cm |
| 3.4.Reverse osmosis desalination rate≥99%,system desalination rate≥97%,filtrating rate of organic matter, colloids ,bacteria≥98% |

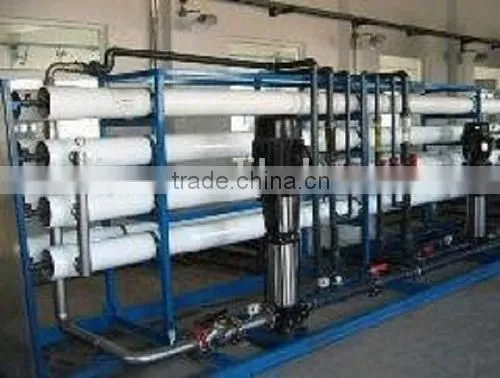

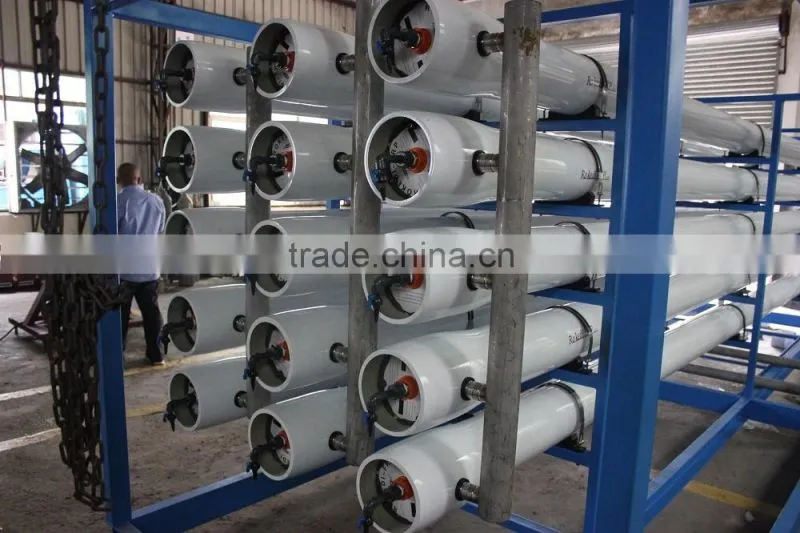

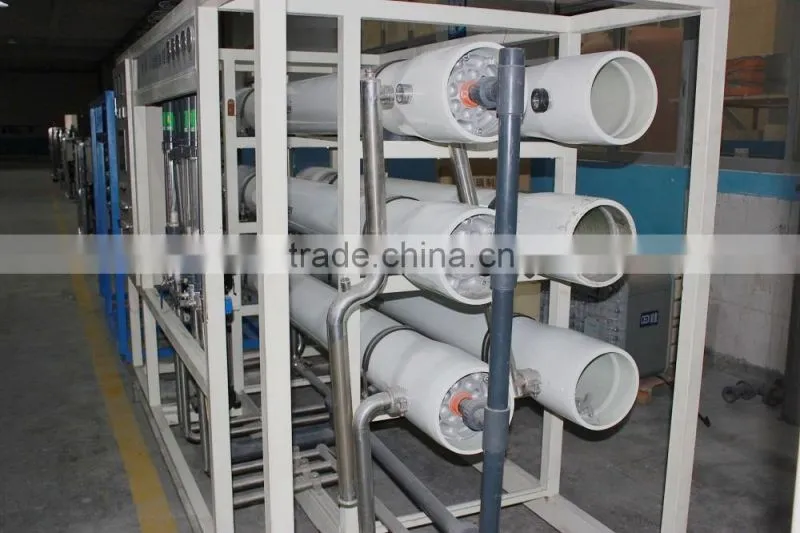

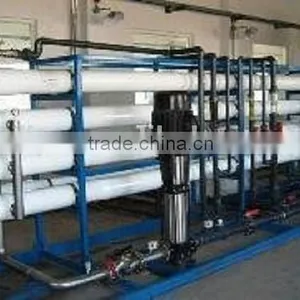

Borehole Treatment - ultrafiltration RO Water Treatment Systems
