Specifications
vehicle tracking system1.SOS,Geo fence
2.Door,ACC,shock sensor,fuel alarm
3.SMS GPS GPRS track
4.Real time online track
TK103-A+ GPS chip fuel alarm SMS GPRS vehicle tracking system
vehicle tracking system
1.GEO-FENCE,SOS
2.real time tracking
3.Door,ACC,shock sensor alarm
4.Web based online tracking
vehicle tracking system
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
specification
Feature:

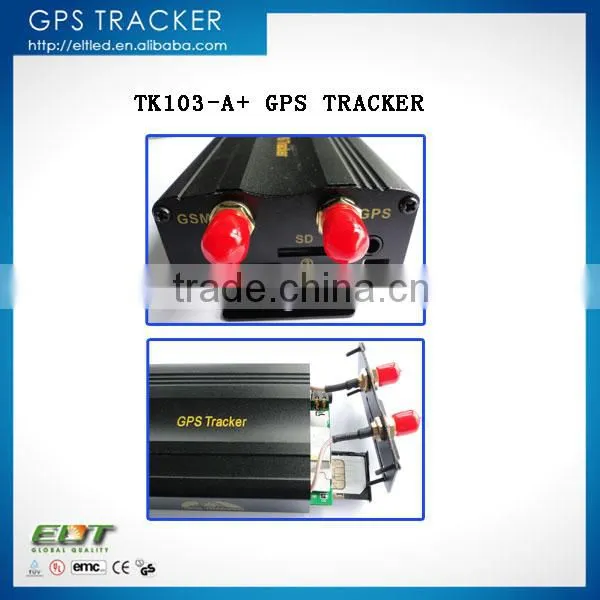

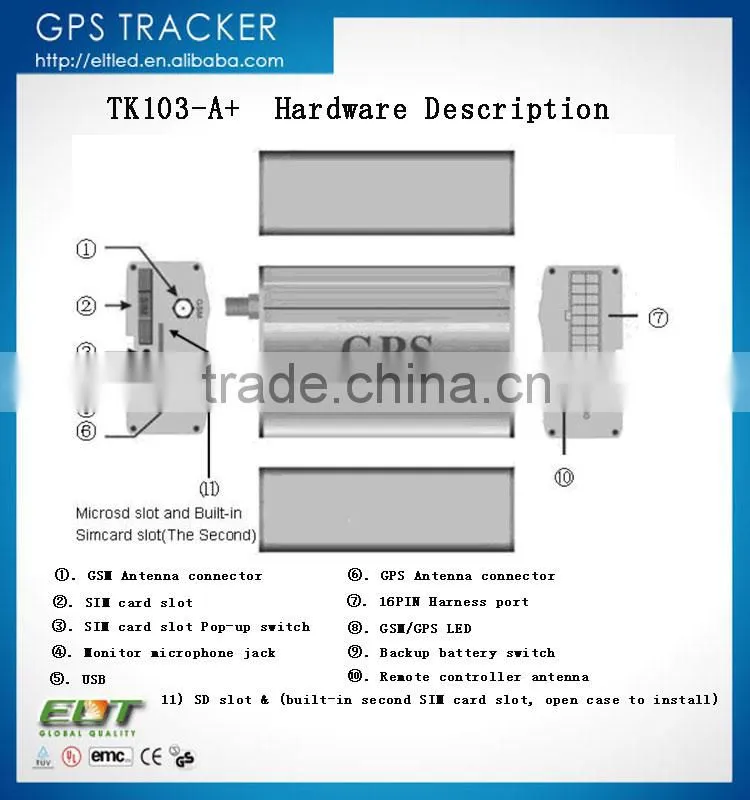

Hardware descrip
1 GSM Antenna connector
2 SIM card slot
3 SIM card slot Pop-up switch
4 Monitor microphone jack
5 USB (Option for Model B+ only)
6 GPS Antenna connector
7 16PIN Harness port
8 GSM/GPS LED
9 Backup battery switch
10 Remote controller antenna
11 SD slot & (built-in second SIM card slot, open case to install)

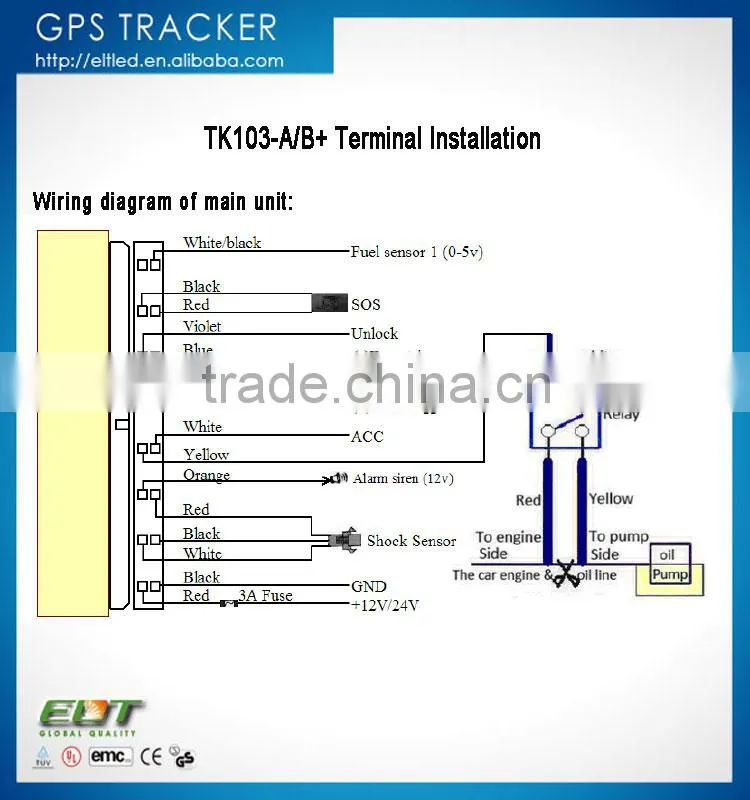

terminal installation
1 Please ask the qualified engineers to install.
2 Do not install it in an environment which is over GSM performance and please pay attention to fix the antennas in a position with good signals.
3 Pay attention to make installation location preventing water and dust.
4 Find the 16 PIN harness and insert it into the corresponding holes of the products, and connect the wires with the original car circuit showing below:
5 Note: The orange wire can be connected to the car original horn; or connected to the siren you buy with the tracker. (Siren is Option)
6 Knowing about the type of the door trigger is positive or negative trigger. Please connect the green wire to the door control circuit if it is positive, and connect blue wire if it is negative.
7 When wiring central lock system to control the door lock, the default settings of the device is for electric lock, if the vehicle is air compressor lock, please refers to the switch command described later.
8 Please install the SOS button on the place driver can touch.
9 Connect the GPS and GSM antenna to the right connector, and find an appropriate place to fix the antennas for good reception.

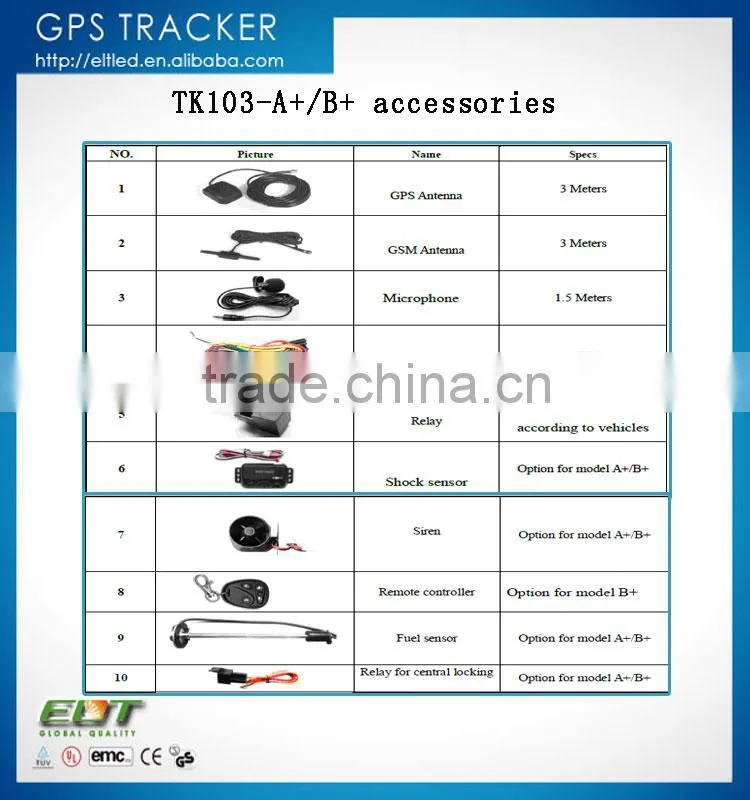

accessories

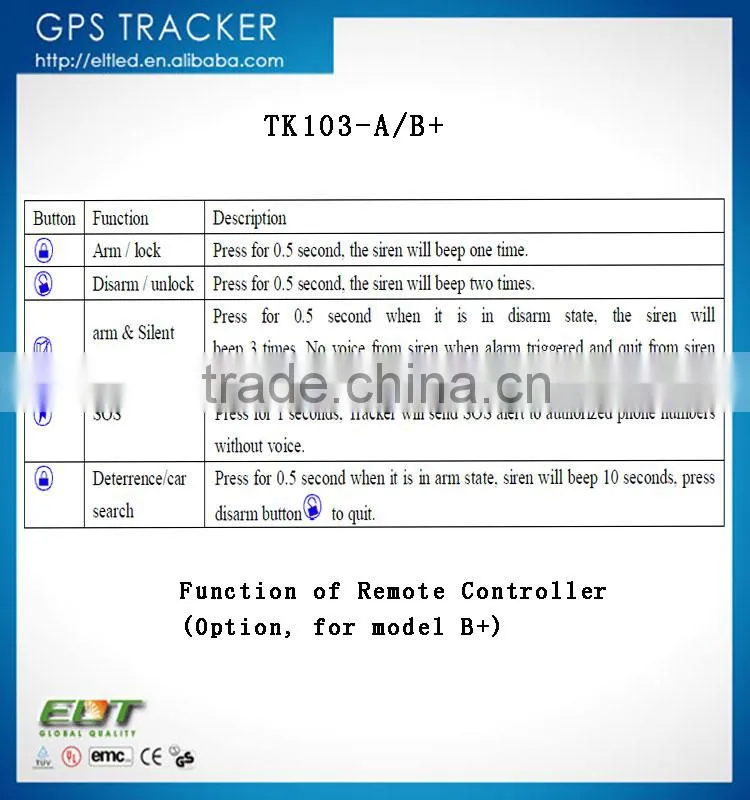

funtion of remote contronller

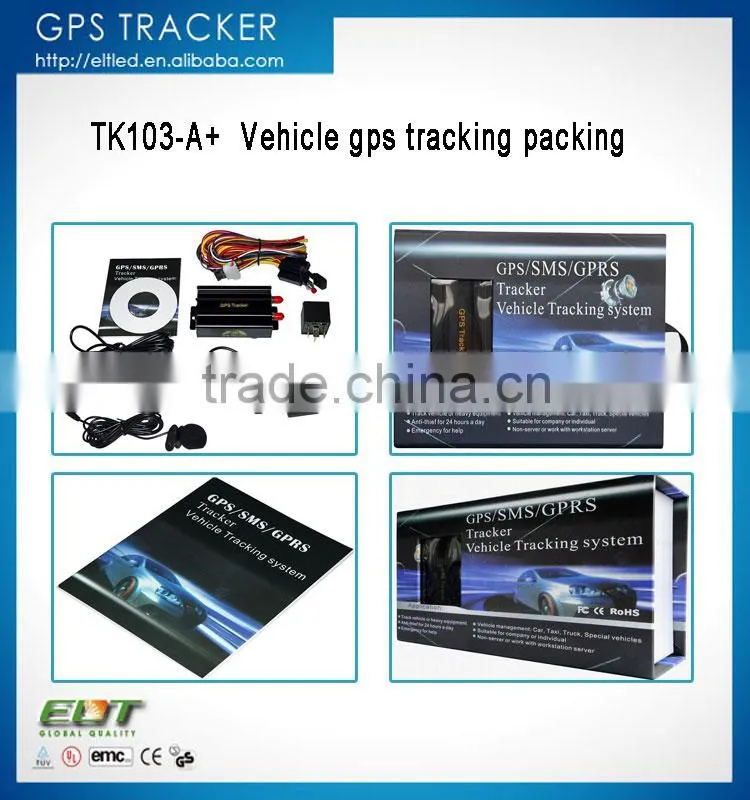

packed in color box or plain box
