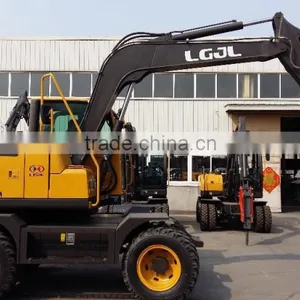

Excavator Track Link Assembly, Mini Excavator Prices, Mini Wheel Excavator,8T Wheel Excavator, Mini Excavator, Excavator
Cab:
Bright and spacious cab, with front hanging and humanized gearshift system, top-grade cushion seat, silicone rubber shock absorber and excellent driving environment.
Electric system:
There is color liquid monitor, which owns features of self check, monitor and emergency failure warning and perfect man-machine interaction. Moreover, there is electrically controlled software with higher reliable configuration than ordinary one.
Hydraulic system:
Hydraulic system applies South Korea imported components, which have characteristics of pilot operation, well-cooperated complex actions. Energy efficiency as well as high reliance.
Fixture auxiliary configuration:
It applies electromagnetism inverting technology, and equips with Italy electron-guided handle. Therefore, it is easy to operate it, thus improving work efficiency.
|
Item |
Specifications |
1 |
Model |
LG680BM (LG680BA) |
2 |
Operating weight |
7500KG |
3 |
Volume of Bucket |
0.28M3 |
4 |
Engine model |
YD4JZG |
5 |
Power |
55Kw |
6 |
Fuel Tank |
110L |
7 |
Travel Speed |
35Km/h(20Km/h) |
8 |
Swing Speed |
12r/min |
9 |
Gradeability |
35 (24) |
10 |
Bucket digging force |
44KN |
11 |
Hydraulic pump model |
SGPIA27(T5VP2D27) |
12 |
Maximum flow |
2X50L/min (2X54L/min) |
13 |
Pressure |
20Mpa |
14 |
Hydraulic oil tank |
120L |
15 |
Overall length |
5935mm |
16 |
Overall width |
2170mm |
17 |
Machine height |
2115mm |
18 |
Total height |
2870mm |
19 |
Ground clear ance bob-weight |
1016mm |
20 |
Min. ground clearance |
417mm |
21 |
Rear-end seing radium |
1980mm |
22 |
Wheel shaft diameter |
2638mm |
23 |
Tyre gauge |
1660mm |
24 |
Tyre width |
235mm |
25 |
Table width |
2015mm |
26 |
Max. Digging height |
6685mm |
27 |
Max.dumping height |
4680mm |
28 |
Max. digging depth |
3503mm |
29 |
Max. vertical wall digging depth |
3199mm |
30 |
Max. digging reach |
6300mm |
31 |
The largest mining in stopping distance |
6115mm |
32 |
Min. swing radius |
2117mm |
33 |
Minimum turning radius at maximum height |
4993mm |
34 |
Arm length |
1850mm |
35 |
Boom length |
3250mm |
36 |
Boom cylinder bore*stroke at piston rod |
Φ110*Φ60*Φ695 |
37 |
Arm cylinder bore*stroke at piston rod |
Φ100*Φ60*Φ650 |
38 |
Bucket cylinder bore*stroke at piston rod |
Φ90*Φ55*Φ520 |
