2016 Best Selling Uncompressed lossless 20km HDMI Fiber Optical Extender Cable
Introducton of 2016 Best Selling Uncompressed lossless 20km HDMI Fiber Optical Extender Cable :
This HDMI Extender Over Fiber is a perfect solution for high-definition video and audio through fiber optic transmission, the equipment package including an hdmi sender and an hdmi receiver. Signal over Single optical fiber at 1310nm/1510nm, up to distances at 2km-20km, at a resolution of 4Kx2K.This hdmi extender using an optical fiber to transmit high-definition video, built-in infrared IR remote control function, and Bi-directional RS232. This hdmi extender could make images clearer, more stable transmission.
Features of 2016 Best Selling Uncompressed lossless 20km HDMI Fiber Optical Extender Cable :
1) Support HDMI 1.4a
2) Support HDCP
3) Support optical fiber transmission and Ethernet transmission.
4) Supports 4Kx2Kx30 resolution
5) Transmission Distance: 2km-20KM
6) Support 3D
7) Support DDC, CEC, HDP Signal.
8) Bi-directional RS232.
9) IR pass through
10) Hot pluggable
11) 1310nm/1510nm VCSEL and PIN photo detector
Specifications of 2016 Best Selling Uncompressed lossless 20km HDMI Fiber Optical Extender Cable :
| Signal Input/Output | |
| Input/Output port of transmitter | HDMI Female x1 |
| Fiber Female x1 | |
| DC 5V Female x1 | |
| Input/Output port of receiver | HDMI Female x1 |
| Fiber Female x1 | |
| DC5V Female x1 | |
| Operating Frequency | |
| Vertical Frequency Range | 50/60HZ |
| Video Amplifier Bandwidth | Max up to 10.3Gbps |
| Resolutions(HDTV) | |
| Interlaced(50&60HZ) | 480i ,576i,720i,1080i,4kx2k for HDMI |
| Progressive(50&60HZ) | 480P,576P,720p,1080P,4kx2k for HDMI |
| Mechanical | |
| Size(L-W-H) | 182X100X37mm |
| Weight(Net) | 460gx2pcs |
| Environmental | |
| Operating Temperature | 0 °C-70°C |
| Operation Humidity | 10%-85%RH(no condensation) |
| Storage Temperature | -10 °C+80°C |
| Storage Humidity | 5%-90%RH(no condensation) |
| Power Requirement | |
| External Power Supply | DC 5V 1A |
| Power consumption(Max) | 5W |
| Accessories Adapter | |
| Use manual | English Version |

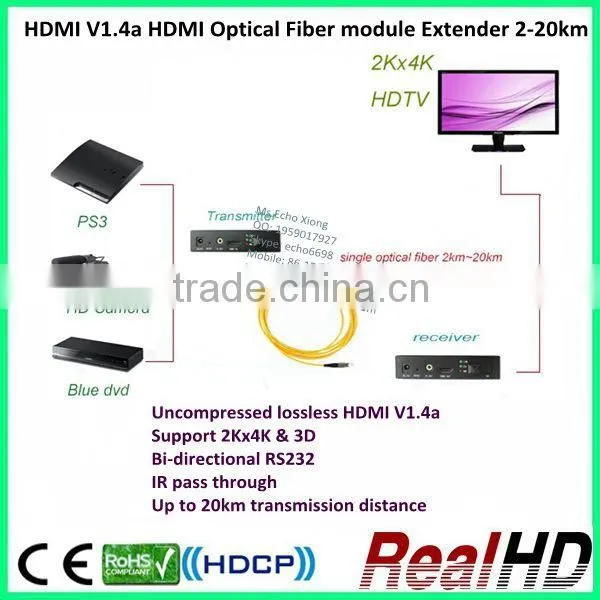

Connection of 2016 Best Selling Uncompressed lossless 20km HDMI Fiber Optical Extender Cable :

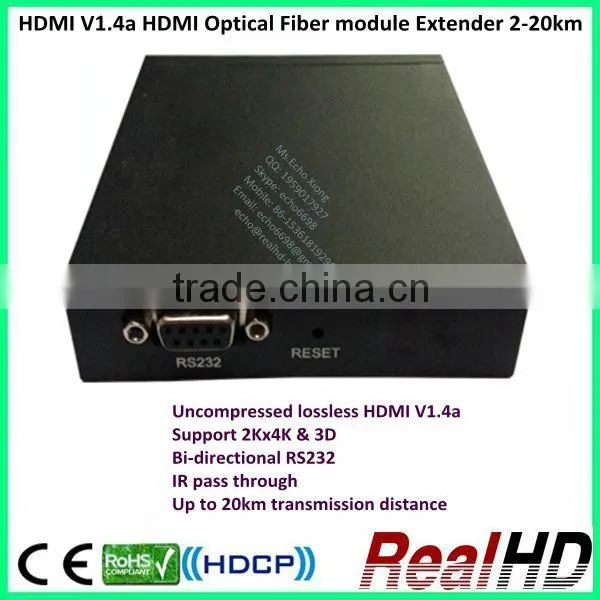

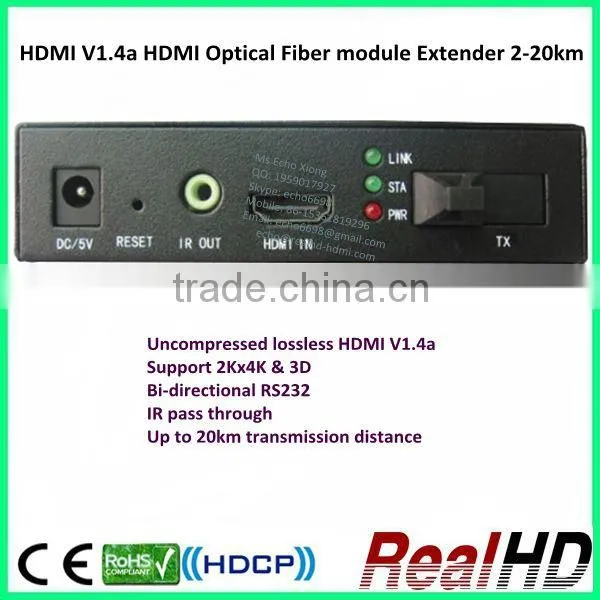

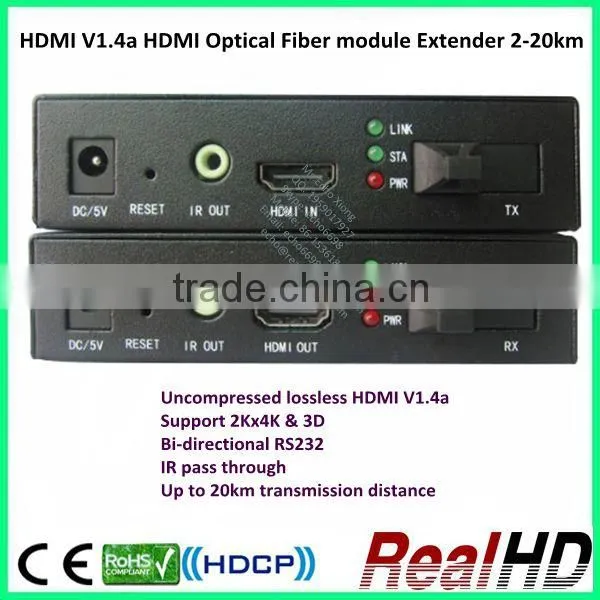

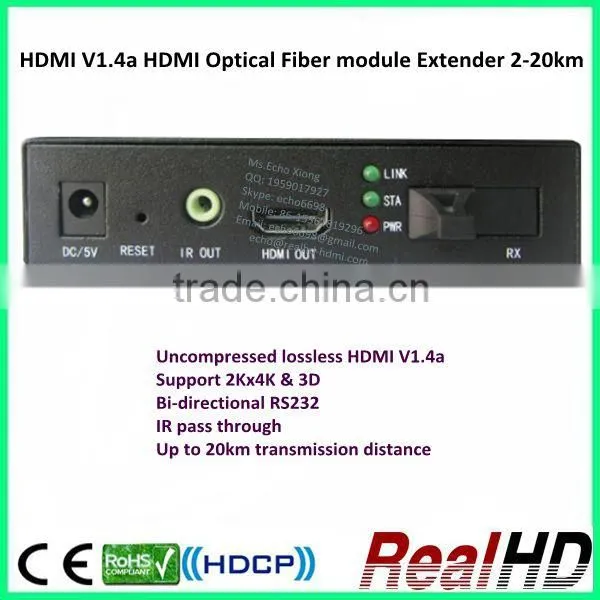

Pictures of 2016 Hottest Uncompressed lossless 20km HDMI Fiber Optical Extender:
Packing of 2016 Hottest Uncompressed lossless 20km HDMI Fiber Optical Extender:
1) One HDMI Fiber Transmitter
2) One HDMI Fiber Receiver
3) Two Power Adapters
4) One User's Manual
Payment of HDMI Extender, HDMI Converter, HDMI Matrix, HDMI Splitter, HDMI Switcher:
1) We could accept T/T and Western Union and Paypal Order. If you want other payment terms please let us know before you order.
2) Full payment should be made within 7 days after placing your order.
3) Make sure that you have completed all the detailed information like contact person, address, post code and telephone number when filling in your buyer's information.
Shipping of HDMI Extender, HDMI Converter, HDMI Matrix, HDMI Splitter, HDMI Switcher:
1) UPS, DHL, Fedex and EMS, TNT are available.
2) The goods will be sent within 3 business days after the full payment has been confirmed. If payment is not available, your order will be closed automatically.
3) The products could be marked as "gifts" or "sample" for your easy custom clearances and less charge if you need. If you want to declare the goods as other item name, or specify an value for custom, please inform us when making the order.
Note: DHL/UPS/Fedex Express usually takes about 4-6 days to the destination, and about 5-8 work days by EMS or TNT. Hongkong Post Air Mail and Hongkong Post Air Parcel takes 7-30 days to ship to worldwide.
1. All products have proceeded aging test before shipping and we guarantee it's safety to use.
2. OEM and ODM are welcome, and could imprint your logo.
2. 3 years warranty for all products, and If not man-made problem, replace or repair are ok.
Contact person of our HDMI Extender, HDMI Converter, HDMI Matrix, HDMI Splitter, HDMI Switcher:
RealHD Established in 2009 by a group of rich experienced engineers, it is a professional manufacturer engaged in the research, development, production, sale and service of HDMI splitters, switchers, matrixes, converters, extenders and cables, our products are well saled in Europe, North America, Brazil, Australia.
