1.We offer 24 hour online technical support to help our customer choose the pump they need and solve any techincal problem occured when using the pump.
2.We offer 18 month warranty time for our hydraulic pump. Should any quality problem occurs during warranty time, we will provide spare parts to our customers for charge free.
Q1. How about quality stability?
Our products has a long service life up to 6-8 years when used properly.
Each set of hydraulic motor is fully tested on our hydraulic system to ensure product quality before we send them to our customers.
Q2.What about delivery time?
We offer 7 day production lead time. Normally we have most of the products in stock. 5-7 days is enough for delivery.
Our company specialize in manufacturing and supplying Rexroth series hydraulic pump and hydraulic motor.
Main products: A2F.A4V.A4VSO.A4VG.A4VTG.A4VSG,A6V,A7V.A8V.A10V.A10VSO.A10VG pump & spare parts, A2FM,A6VM,MCR03,MCR05 motor & spare parts.
Good quality, fast delivery and competitive pricing.
The A6VM--63 series Variable motors are made
in china with higher quality and competitive cost.
This A6VM series variable motors’ function and the overall size along with
all of the spare parts are as the same as the Original A6VM series motors
It can replace original A6VM series motors very well.
The Variable motors A6VM--63 series used for:
The Implement hydraulics of Agricultural and Forestry Machinery,Material Handling,On- Highway and Commercial Vehicles: Skidders, Mobile cranes, Crawler cranes, , Drilling rigs, Municipal vehicles, and so on...
The Variable motors A6VM--63 series used for the Travel Drive systems of Construction Machinery, Agricultural and Forestry Machinery,Material Handling, On- Highway and Commercial Vehicles : Wheeled excavators,Standard excavators,Mining excavators,Compact excavators, Wheeled loaders,Backhoe loaders, Telehandlers, ROLLER, Pavers and road milling machines, Concrete mixers,Dumpers, Combine and forage harvesters, Harvesters, Forwarders, Feller bunchers, Skidders, Mobile cranes, Underground and mining machines, Municipal vehicles, Airport equipment, Heavy duty vehicles and so on.

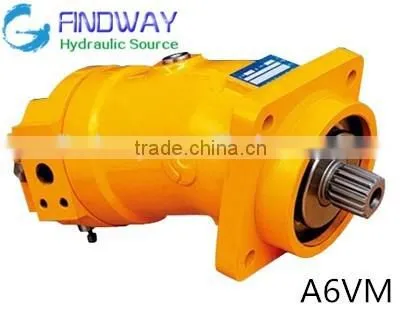

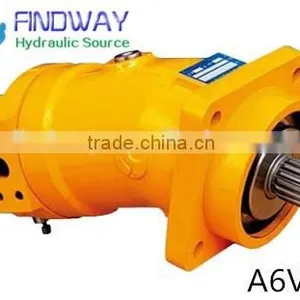

Rexroth A6VM hydraulic piston motor.
1. Completely interchangeable with original
Rexroth A6V of A6V28,A6V55,A6V80,A6V107,A6V140,A6V160,A6V225,A6V500 hydraulic piston motor 1. High speed hydraulic motor
2. A complete control assembly for a maximum swivel range of Vmax/Vmin=3.47 is fitted
3. Large control range with hydrostatic transmissions
4. Secondary control regulation with various control devices
5. Increased maximum output.speeds at reducing swivel angle
6. Cost-saving due to the possibility of using smaller pumps
7. Obviates the multispeed ratio gear drives
8. High power density
9. Optional mounting position
10. High efficient, excellent starting characteristics and low inertia
11. For engineering machinery, maritime and boat and industrial machinery etc.
Technical Specifications
Size |
A6V Series Variable Piston Motor |
|||||||||
28 |
55 |
80 |
107 |
140 |
160 |
200 |
||||
Displacement |
Vgmax |
cm2
|
28 |
55 |
80 |
107 |
140 |
160 |
200 |
|
Vgmin |
cm2
|
0 |
0 |
0 |
0 |
0 |
0 |
0 |
||
Max geometry Displacement max.speed |
Vgmax |
r/min |
5300 |
4200 |
3750 |
3350 |
3000 |
3000 |
2750 |
|
Vg<Vg |
r/min |
8000 |
6300 |
5600 |
5000 |
4500 |
4500 |
4100 |
||
Max.permissible.Swept volome |
l/min |
49 |
230 |
300 |
353 |
420 |
480 |
550 |
||
Torque constants |
Vgmax |
N.m/105Pa |
0.446 |
0.87 |
1.27 |
1.7 |
2.23 |
2.54 |
3.18 |
|
Vgmin |
N.m/105Pa |
0.092 |
0.18 |
0.26 |
0.35 |
0.45 |
0.52 |
0.65 |
||
|
Max geometry Displacement:
max.torque(ΔP=35Mpa)
|
N.m |
156 |
305 |
446 |
594 |
779 |
889 |
1114 |
||
|
Max.Swept volome:
Max.output power(ΔP=35Mpa)
|
KW |
87 |
134 |
175 |
206 |
245 |
280 |
321 |
||
Moment |
Kgm2
|
0.0014 |
0.0042 |
0.0080 |
0.0127 |
0.0207 |
0.0253 |
0.0353 |
||
Mass |
Kg |
16 |
26 |
34 |
45 |
60 |
64 |
80 |
||
|
Fuel injection
|
1 |
0.5 |
0.75 |
1.2 |
1.5 |
1.8 |
2.4 |
2.7 |
||
We use wooden case that can endure long time sea shipment. Our package can prevent products from damaged during shipment at maximum extent.
We also have professional forwarder who not only offer competitive price in freight but also provide fast custom clearance service to our customers.
Hydraulic testing system of hydraulic pump:
Each set of hydraulic pump is fully tested by our hydraulic system to ensure product 100 % quality before we send them to our customers.
Spray room of hydraulic pump and hydraulic motor:
Our spray room is dust free which ensures a perfect surface of our hydraulic pump and hydraulic motor.
Assembly line of hydraulic pump and hydraulic motor
Our assembly line is also dust-free which keeps the cleanliness of inner parts of our hydraulic pump and hyrdaulic motor.
Three-dimensional Measuring Instrument:
The three-dimension measuring instrument ensures our hydraulic pump and motor spare parts are the same to original ones.
Nitriding furnace of hydraulic pump and hydraulic motor:
The Nitriding funace ensures the hardness and abradability of our spare parts.
Hydraulic pump and motor spare parts stock
Machining center:
