Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > Muti-functional Liquid Packaging Machine

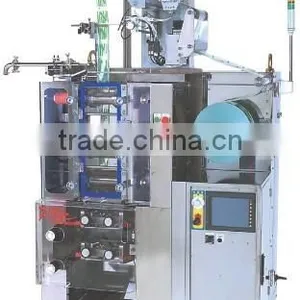

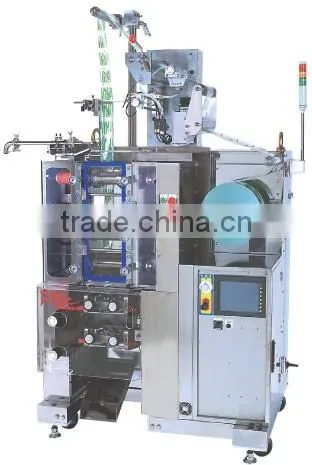

Muti-functional Liquid Packaging Machine

Name: Muti-functional Liquid Packaging Machine
Brand: CUIWANG
SKU: 104114879

Muti-functional Liquid Packaging Machine thumbnail-1

Muti-functional Liquid Packaging Machine photo-1

US$ 4,000 - 8,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Function:

Embossing, Filling, Labeling, Sealing

Application:

Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

Contact Supplier Request Quote Chat Now

Shanghai Cuiwang Industry&Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Function Embossing, Filling, Labeling, Sealing

Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

Packaging Type Bags, Bottles, Cans, Capsule, Cartons, Case, Film, Pouch, Stand-up Pouch

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 3-phase 380V

Power 6.5kw

Place of Origin Shanghai, China

Brand Name CUIWANG

Model Number ERL-1300

Dimension(L*W*H) 1117mm(L)*942mm(W)*2035mm(H)

Certification CE &SGS&ISO

After-sales Service Provided Engineers available to service machinery overseas

Liquid packaging machine

ERL-1300 HIGH SPEED AUTOMATIC LIQUID & PASTE FILLING AND PACKAGING MACHINE

Product Specification:

This machine is the compact packaging machine for liquid and paste, which emphasizes the versatility, operability and the ease of maintenance. The allaxis servo control manages the data including the pitch, sealing temperature, filling volume and the timing of each drive axis, and the data of 100 or more products can be stored. The touch panel shows the menu items, such as the “administrative items”, ”data storage” and “initial settings”, which are colored differently according to the purpose, and it is excel in operability. Equipped with the deviation correction device, it enables the stable feeding of various types of film. The driving section is visible through the clear cover. Each heat roller can be easily maintained from the front or rear of the machine. The entire cutter device can be taken out by unlocking the four locks, so that the overhaul can be easily done.

SPECIFICATIONS:
Filling Product:	Liquid & Paste
Pouch Pattern:	3-side seal & 4-side seal
Pouch Height Range:	2divisions100~200mm 3divisions 80~150mm 4divisions 55~100mm 5divisions 45~80mm 6divisions 40~60mm According to the width of horizontal sealing pouch height range is different.
Pouch Width:	25-130mm 4-side seal when pouch width is 130mm.
Packaging Capacity:	20-300 pouches per minute (depending on pouch height,film composition,product property,etc)
Filling Capacity:	1-200c.c. (depending on product property and filling device to be used)
Applicable Film Width:	50-260mm
Maximum Film Roll Dia:	400mm
Power Consumption:	3-phase 380V 6.5kw
Machine Dimensions:	1117mm(L)×942mm(W)×2035mm(H)
Machine Weight:	Approx.700kg

Application:

This machine is broadly used in packaging liquid soup,cosmetics,cleansing liquid and mayonnaie,which require high filling precision.

Advantage:

1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.

3. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.

4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.

5. The part where touch to the materials is made of stainlesss steel is accord with the request of GMP.

Auto Package process

Packing Sample:

After Service:

The seller guarantee to solve all problems which may occur due to manufacture’s mistakes or wrong design, a

nd to provide all necessary spare parts and in case if the problem is serious and can’t be solved by buyer, The

seller has to send his technician on the buyer’s account.
