Help CenterHYF-W API Bottom Loading Valve
US$ 1 - 130
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
AILE
Model Number:
HYF-W-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
AILE
Model Number
HYF-W-01
Specifications

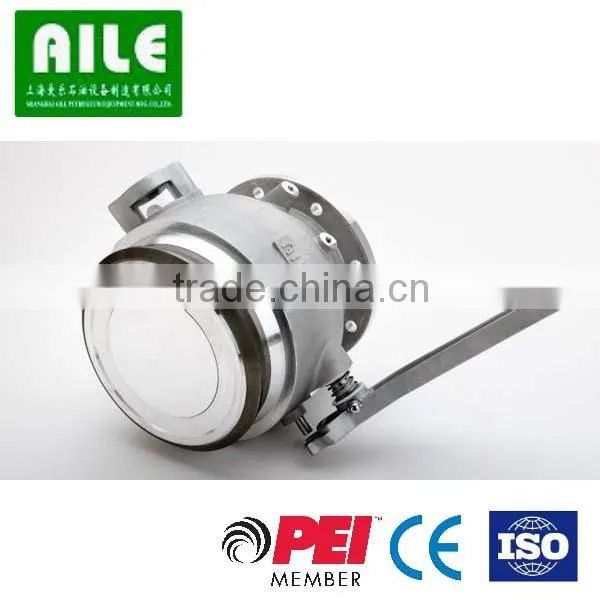

HYF-W API Bottom Loading Valve with protectable sightglass.Durable than the HYF-U
API Bottom Loading Valve is used in tank truck for loading petrol kind of liquids.
HYF without handle is normally used for loading only.
The light weight and heavy-duty valve is designed and teated to meet API standards.
The outer nose end is hard-coated aluminum and rotates to prevent uneven wear sometimes caused by terminal and off-loading couplings. The adaptor is constructed with TTMA standard 4-inch tank truck flange and mounting lugs for Aile interlock.
Materials:
a) Body: aluminum alloy
b) API adaptor end: hard-coated aluminum
c) Poppet: stainless steel
d) Shaft and latch plate: stainless steel
e) CAM: brass
f) Handle: aluminum alloy
g) Seals: viton& buna-N
h) Standard: meets API RP 1004 specifications, the TTMA standard;
Features Benefit:
1) Heat-treated, aluminum alloy body and flange
2) Hard-coated aluminum API adaptor end
3) Stainless steel poppet, shaft and latch plate
4) H62 brass cam
5) Cast Aluminum Alloy handle
6) Viton seals
7) Meets API RP 1004 specifications
8) TTMA Standards
9) Two-stage fixed aluminum handle gives positive indication of valve position
10) Sight glass for detecting liquids
11) Conforms to API RP 1004 for total compatibility with API couplers
12) Lightweight die cast aluminum construction with high-octane fuels and additives
13) Viton seals are standard for compatibility with high-octane fuels and additives
14) Hydrodynamic design minimises pressure drop for high flow rates
15) Stainless steel operating shaft, cam and poppet stem for durability
16) Top mounting for hose interlock
Replacement parts:
a) Shaft seal
b) Cover seal
c) Flange seal
d) API adaptor end
Ordering specifications:
a) Products: HYF-W
b) Type: standard
c) IN.: 4.00
d) Weight: 5.80kg
