Specifications

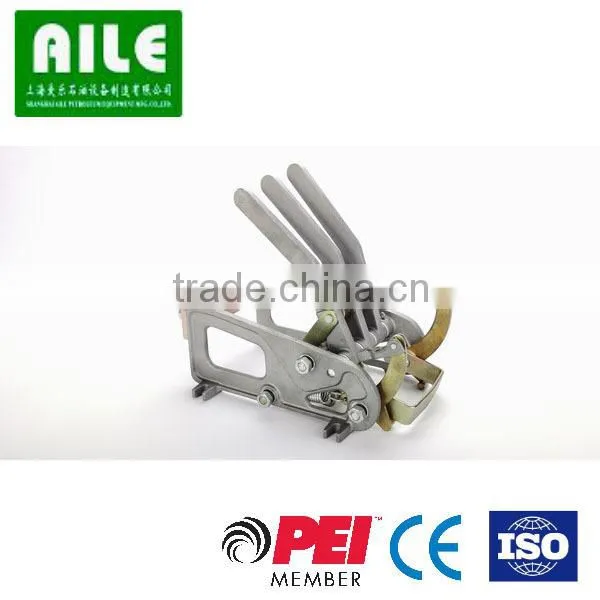

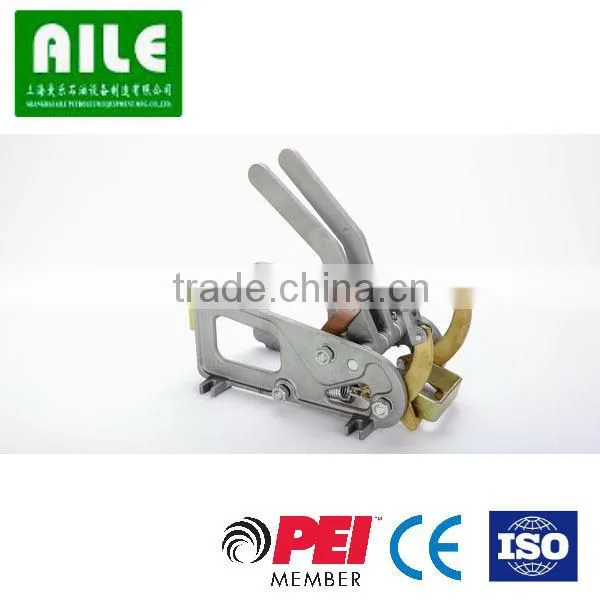

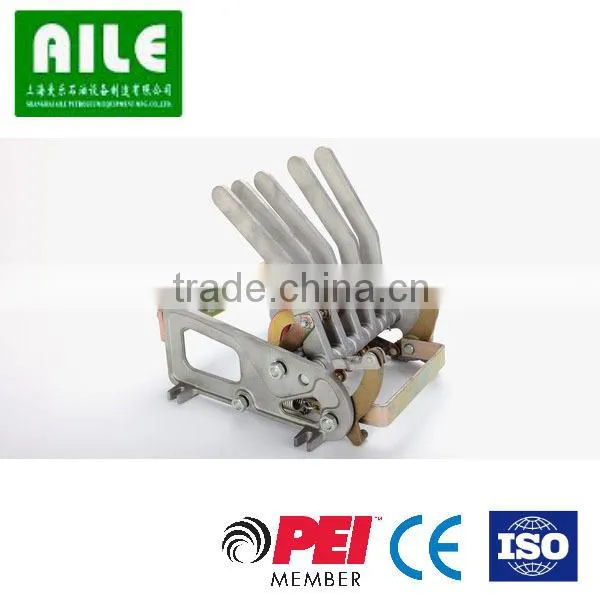

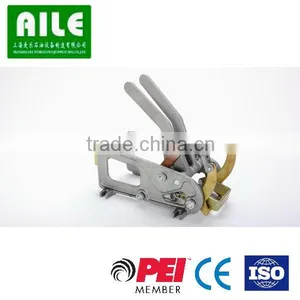

Emergency Valve Bottom Operators function cable operated emergency valves from a central location on a cargo tank.Emergency Valve Bottom Operator
1) AILE MO-FV Compact Mechanical Operators function cable operated emergency valves from a central location on a cargo tank.Available trom 1 up to 5 compartments in powder coated steel;each compartment is supplied with a fusible link designed to melt at not more than 2500F as well as non-slip cable connectors that allow cable to be cut to length after installation.
2) Features:
a. Compact Design
b. Powder Coated Steel
c. Lever arms provide 2-3/8stroke and 5.6:1 mechanical adventage
d. Two trip levers provided for flexibility in locating cable remote control
or for attaching two remotes
e. Solid Handles
f. Non-Lubricated Stainless Shaft
3) Ordering Specifications
product# No.of Compts Weight(lb) Wide(inch)
MO-FV-1 1 7.1 4.2
MO-FV-2 2 9.5 4.2
MO-FV-3 3 12.7 7.75
MO-FV-4 4 15.1 7.75
MO-FV-5 5 17.5 7.75
