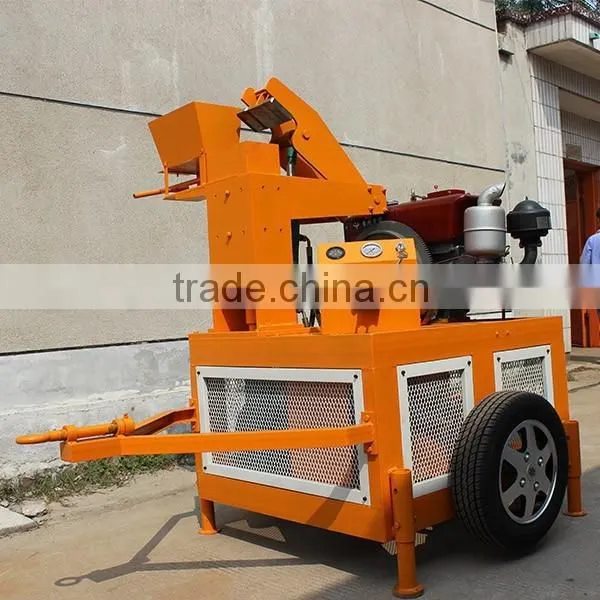

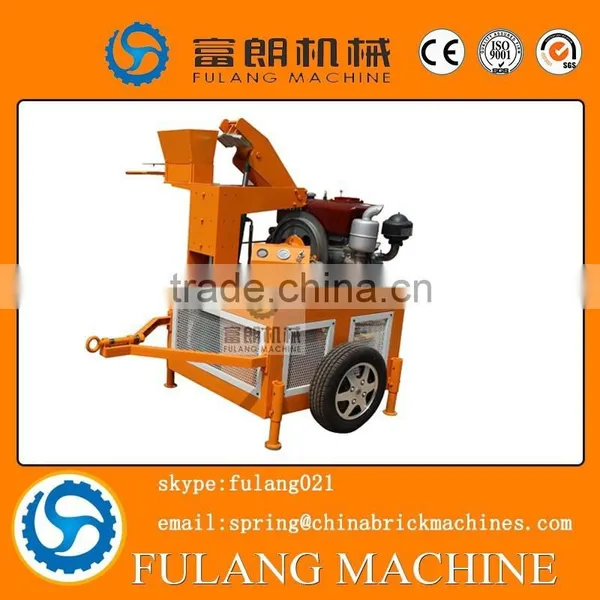

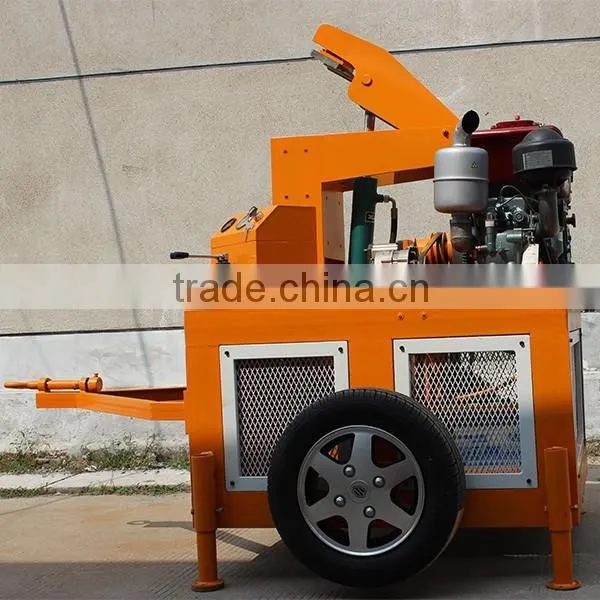

FL1-20 Mobile Compressed Earth Interlock Brick Making Machine with Car Tire
| Mould: | carburizing treatment, long service life (3 months - a year). |
| Packing: | MDF wood carton package (wooden cases need extra packing charge) |
| Engine | electrical engine |
| product overall siez | 1250*1250*1500mm |
| Mould material | heat treated ,longer life span |
| Production: | 2600-3000 a day |
| Cutting type | precise line cutting,not flame cutting |
| Weight | about 500kg including package |
| Brick size | 240*220*115 |
| Oil pressure | 16MPa |
| The mixing ratio of cement and soil | 8%-10% |
| Tire | Car tire |

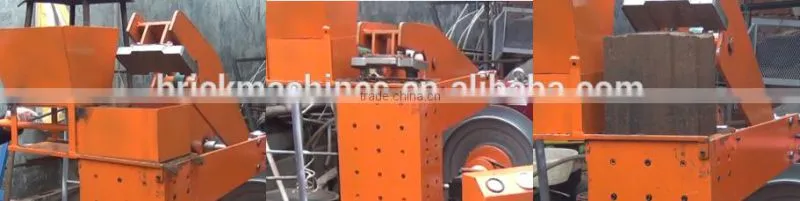

Processing of FL1-20 Compressed Earth Interlock Brick Making Machine Price with Car Tire
By hydraulic pressure.the two oil cylinder will give a powerful pressing for the block.after material feeding,the two oil cylinder will press the middle block,final up mold rise, the block will come out
BLOCKS MEASURE of FL1-20 Compressed Earth Interlock Brick Making Machine Price with Car Tire
Length 23cm, width 22cm, height up to 11.5cm.
The length, the width and height are not fixed dimensions,but if customer want one machine with some molds, these molds should have similar size.
| photo | size |
|
(120-240)x (140-220) x 115mm |
|
(120-240)x (140-220) x 115mm |
|
(120-240)x (140-220) x 115mm |
|
(120-240)x (140-220) x 115mm |
Components of FL1-20 Compressed Earth Interlock Brick Making Machine Price with Car Tire
| Hydraulic System | Tank | Hydraulic Command |
|
|
|
|
| Diesel engine | Wheel | Control panel |
|
|
|
|
MDF wood carton package or as customer’s request
LINYI FULANG TRADING CO., LTD supplier and manufacturer of kinds of block machine in Shandong of China.
Our main products are Automatic Burn-free brick making machine , aerated concrete block production line,
the aerated concrete wall panel production line, autoclaved lime sand brick production line, autoclave etc.
A and second-class pressure vessel, aerated concrete blocks, sand-lime brick, panel products, Oxygenated
diesel, dimethyl ether , plant asphalt nine series,more than 60 varieties
Welcome to Linyi.
Welcome to visit our factory with sincerity.
....
