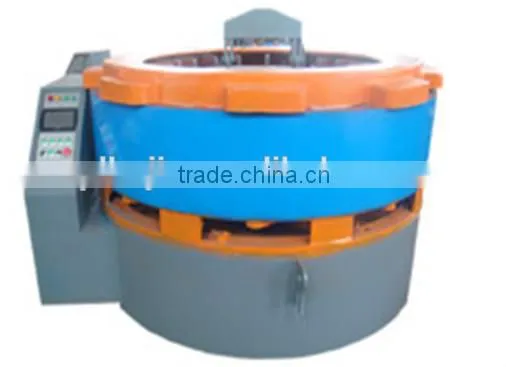

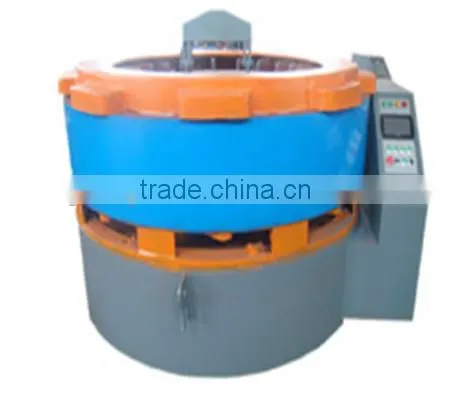

OTR tyres vulcanizing machine
Product name
Active mold curing machine(Internal model can change)
Model and specification
1. Model:GHJ1860-25
2. Motor power: 18.5KW, 50HZ, 380V
3. Inner diameter: 1860cm
4. Section height: 85cm
5. Curing temperature: 136°-160°
6. Curing pressure: 26kg
7. Heating method: steam, thermal oil
8. Weight: 20T
9. Overall dimensions: 4.5m*3.3m*3.5m
10. Curing time: 5 hours
(simultaneously heating inside and outside: 2.5 hours)
11. Specification: 29.5-25
Component
Active mold curing machine for OTR tyres, it is made up of pedestal, lift cylinder, mould clamping cylinder, central organization, curing chamber and down hot plate.
1. By hydraulic brake, locking cylinder to drive the clamp ring for mould locking and opening. Mode-locked accurately and reliably.
2. This machine is equipped with central organization. Adopting the rubber pneumatic bag can obviously improve the quality of tire vulcanization.
3. With the manipulator, easily operating.
4. Separately configuring the electric box control cabinet, adopting PLC control, automatically controlling and recording for the temperature, time and pressure in the process of the vulcanization.
Feature
1. Equipped with central organization and manipulator.
2. Designing a variety of practical pattern according to
different road surface.
3. With internationalization of automatic performance,
improving the qualified rate of the tire in the process of
vulcanization , User Trust Product.
4. Making according to the customer's requirements.
Configuration
1. Material: cast steel
2. Motor: HUALI ELECTRIC MOTOR
3. PLC: HAIWELL touch screen
4. Inverter: DELTA
5.Contactor: CHINT
(Configuration can also according to customer's requirements)
