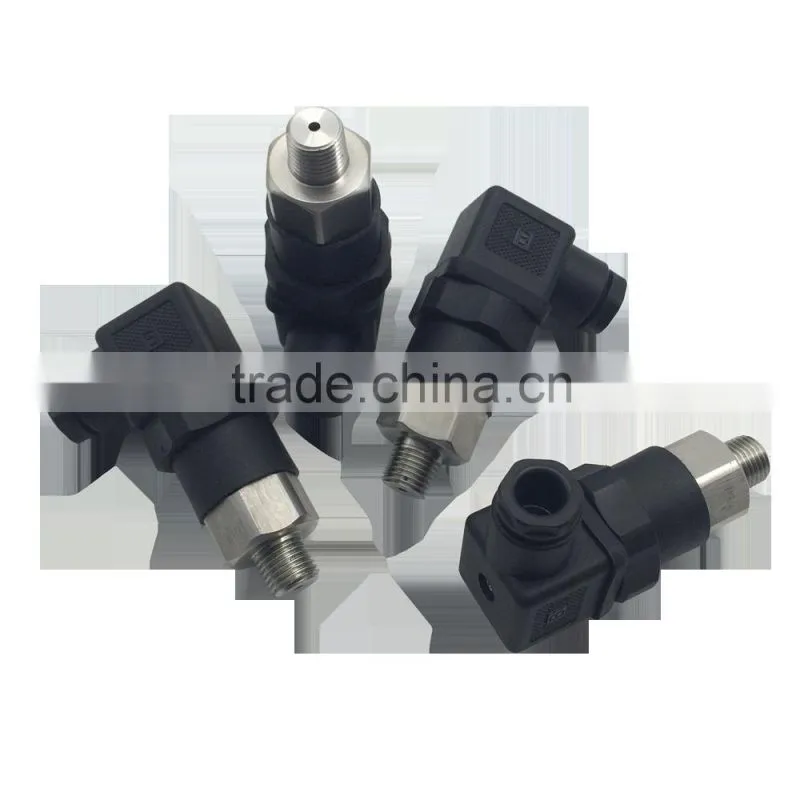

Micro hydraulic oil pressure switch
Description of pressure switch

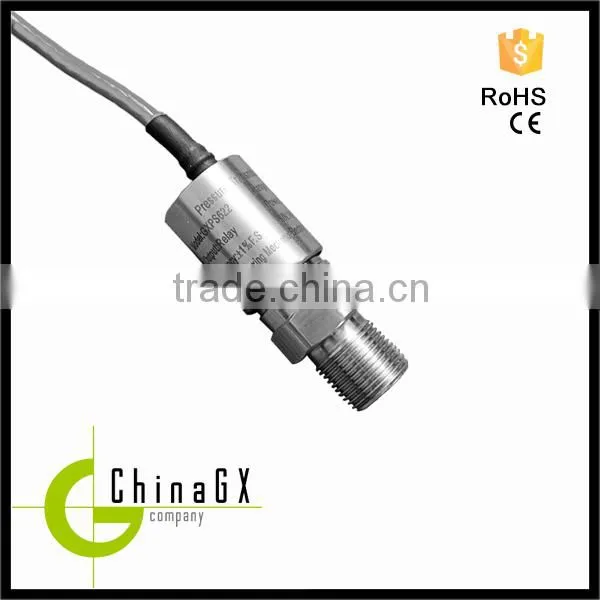

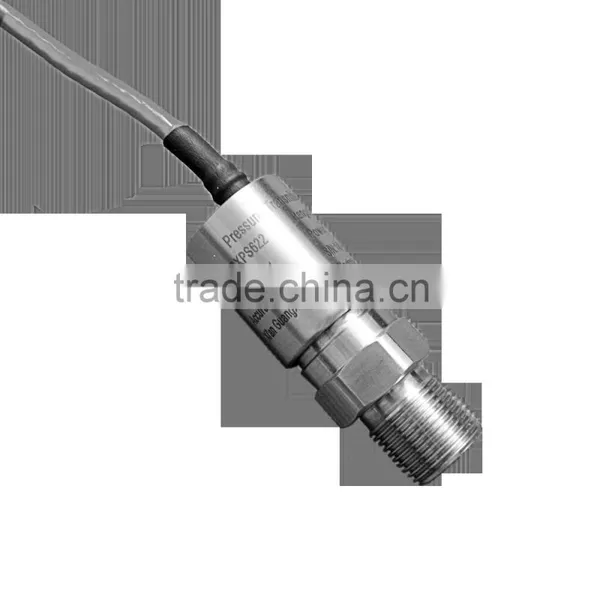

GXPS622 series is a band live alarm lamp, alarm point adjustable pressure switch. Having the characteristics of high reliability, high stability, highly accuracy. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases.
The product uses 1Cr18Ni9Ti stainless steel structure, with user adjustable alarm points can be adjusted via potentiometer, real-time light-emitting diode display the working status of the switch output.
Features of oil pressure switch
- Adjustable alarm output
- With on-site switch indicator
- Accuracy 0.5%F.S, 1%F.S, 2%F.S
- Various pressure range and switch output
Applications of hydraulic pressure switch
- Petrochemical
- Machine control
- Hydraulic control
- Pressure Instruments
- Metallurgical and Chemical
- Automatic detection system
Parameter of micro hydraulic oil pressure switch
Spec. |
Value |
|
|
Pressure range |
0~0.1MPa......60MPa; 1bar…600bar; 14.5psi…8700psi 10000MmH20…6118000mmH2O 0.98atm…592stm |
|
Load pressure |
1.5times nominal value pressure (1.5X) |
|
Rupture pressure |
3times nominal value pressure (3X) |
|
Accuracy |
±0.5%F.S, ±1%F.S, ±2%F.S |
|
Stability |
Typical value 0.25%F.S, Max.: 0.5%F.S |
|
Operating temperature |
-20°C~60°C |
|
Medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti |
|
Output signal |
The relay output |
|
Power supply |
24Vdc |
|
Contact load |
0.5A 125VAC/1A 30VDC |
|
Insulation |
>100M Ω@50V |
|
Pressure port |
M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
|
Pressure type |
G,S |
Response time: 10ms |
EMI/EMC |
EMI: EN50081-1/-2; EMC: EN50082-2 |
|
Electronic interface and signals definition
Electric connection | |||
Color |
Red |
Black |
White |
Definition |
Power+ |
Power - |
Common terminal |
Color |
Blue |
Green |
Grey |
Definition |
Normally Closed |
Normally open |
Shield |
GXPS623 pressure switch
Our Services
Sensor can be customized by your special request, We can supply technical consulting service for your user.
The quality principle: Quality is the best sales
Payment: We accept T/T, PayPal, Western Union, MoneyGram , Escrow
Shipping:
1. All parts will be shipped out within 1 - 3 working days after confirm the payment
2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex
3. We are not responsible for force majeure accidents, delays or other issues, like the shipping service.
After-sales service
We can offer good technical support and good warranty for you after service as professional manufacturer.
Warranty: One year
During the warranty, if the goods after delivery are damaged with error caused only by itself quality problem, the goods can be returned for free repair and maintenance. however, if the goods is damaged with error caused by user’ s man-made and force majeure factor, we will be not responsible for free repair and maintenance.
