Specifications
1.Door to door survice2.24 hour survice
3.Professional technology
4.factory price

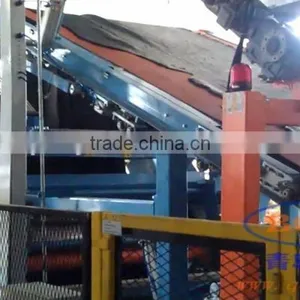

Factory price High technology XKFG-Automatic rubber folding back device
Specifications
1.Power:hydraulic type and electrodynamic type.
2. reducing labor intensity, improving production efficiency
l Application
By mechanical folding back rubber to replace artificial cutting rubber, triangle package and folding back rubber, making it more mechanical and reducing labor intensity, also improving production efficiency. Power of folding rubber have hydraulic type and electrodynamic type.
l Function
1.This device can replace manual cutting, picking, inverting and swaying rubber, rubber sheet or rubber material falling on conveyor belt under drum from roller, and then conveying to top of roller by conveyor belt, also can sway rubber automatically from falling off conveyor belt which can meet the requirements of automatic picking, conveying and swaying rubber. It’s optional for automatic cutter.
2.This device can achieve three or four multi machine linkage, and one person is enough for routing inspection after parameter setting. The whole line realizing computer parametric operation which is convenient for the regulation of rubber mixing process, making the rubber mixing stable and uniformal, avoiding nonuniform of rubber mixing and mixing time shortages by errors of workers; The whole rubber mixing process does not need manual operation.
l Technical parameters
Model |
XKF-400 |
XKF-450 |
XKF-550 |
XKF-560 |
XKF-660 |
The pull roll dia(mm) |
165 |
165 |
240 |
240 |
240 |
Linear speed for the pull roll (m/min) |
2.0-21.65 |
2.7-27.67 |
3-33.72 |
3-33.72 |
30/37 |
Rubber round trips(each time/min) |
2.5 |
2.5 |
2.65 |
2.65 |
1.93 |
Folding back amplitude (mm) |
684 |
900 |
1188 |
1188 |
1680 |
Roller moving distance (mm) |
72 |
72 |
72 |
72 |
72 |
Motor power for the pull roll (kw) |
2.2 |
2.2 |
2.2 |
3 |
4 |
Motor power for the pendulum roller(Kw) |
1.1 |
1.1 |
1.5 |
1.5 |
2.2 |
Folding back way |
Hydraulic/screw |
Hydraulic/screw |
Hydraulic/screw |
Hydraulic/screw |
Leading screw |
Overall dimensions(L×W×H)(mm) |
2200*850*900 |
2400*1100*900 |
2800*1200*900 |
2800*1200*900 |
3320*1200*930 |
Weight(kg) |
900 |
1000 |
1500 |
1500 |
1900 |

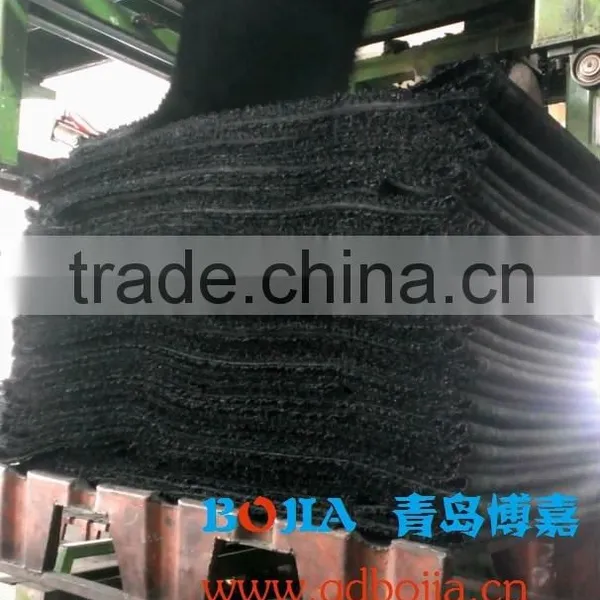

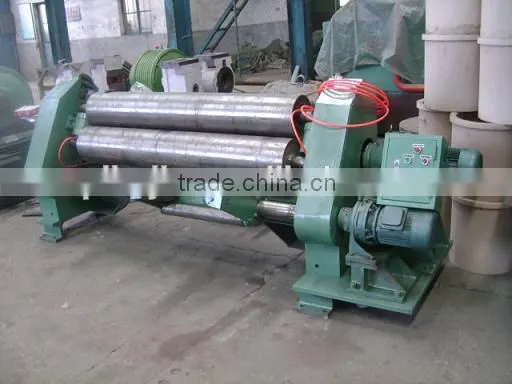

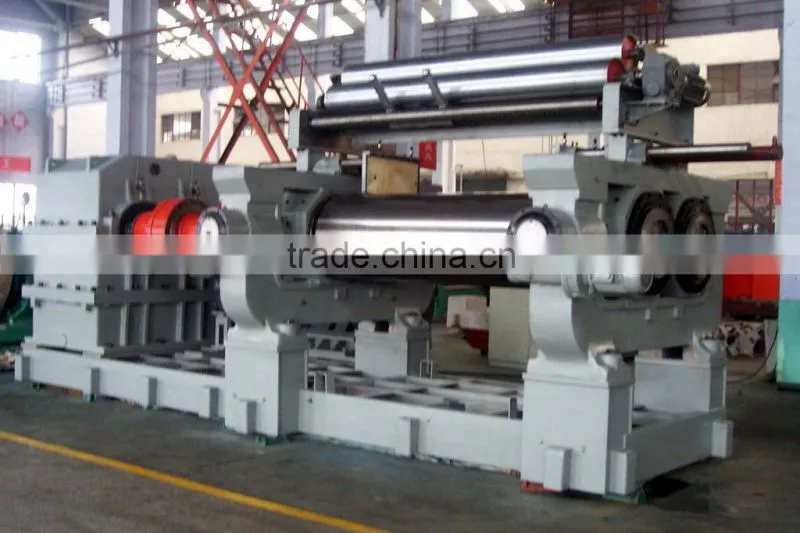

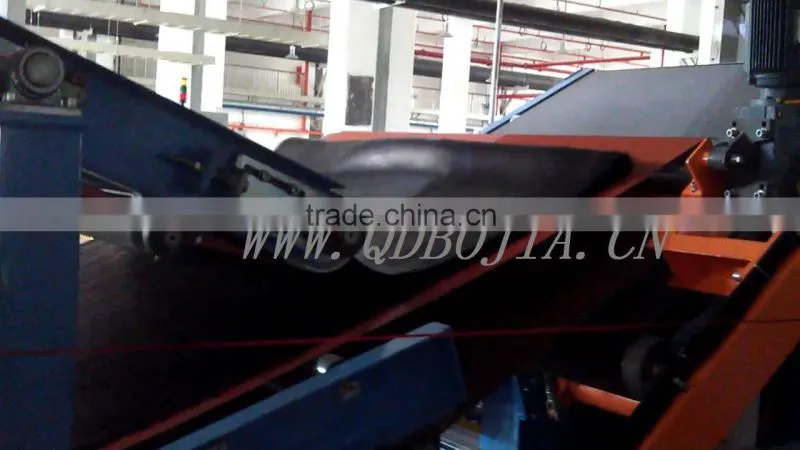

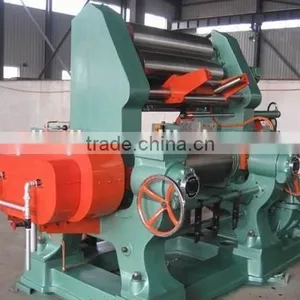

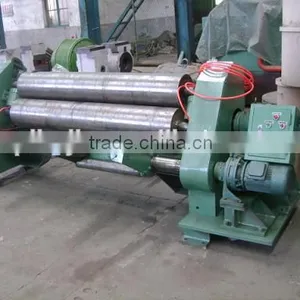

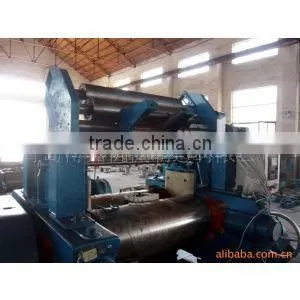

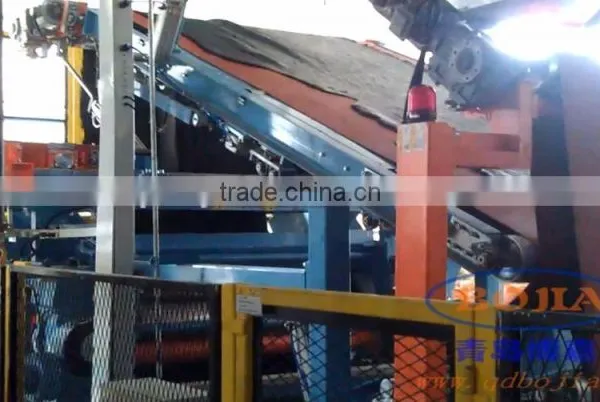

l Pictures
Our company:
Welcome to our factory anytime~~
