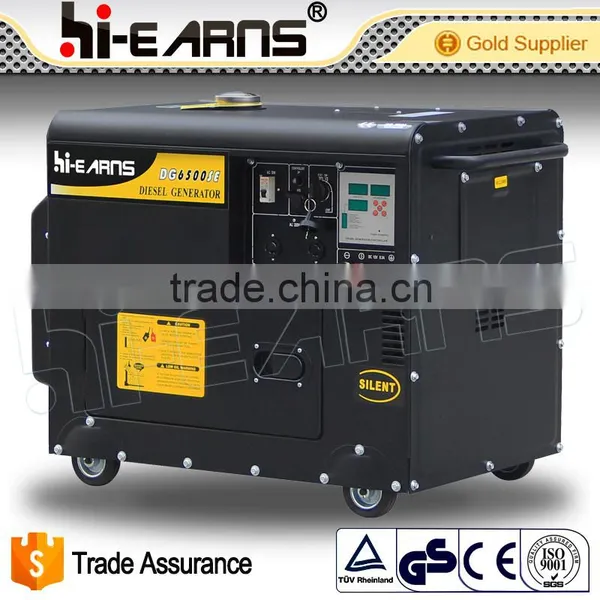

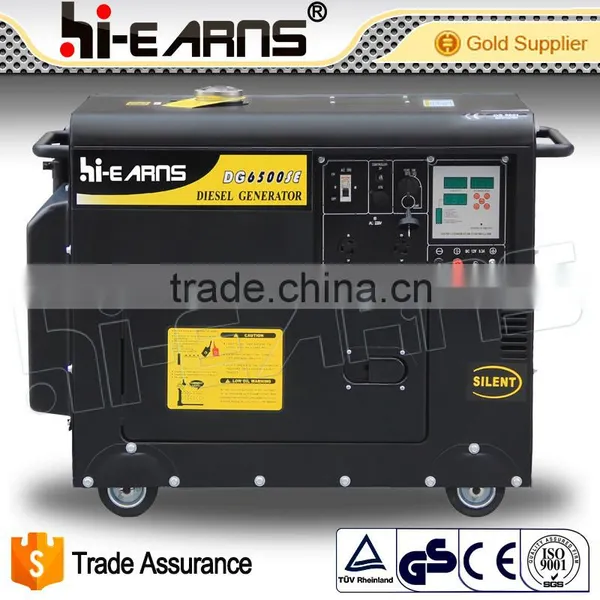

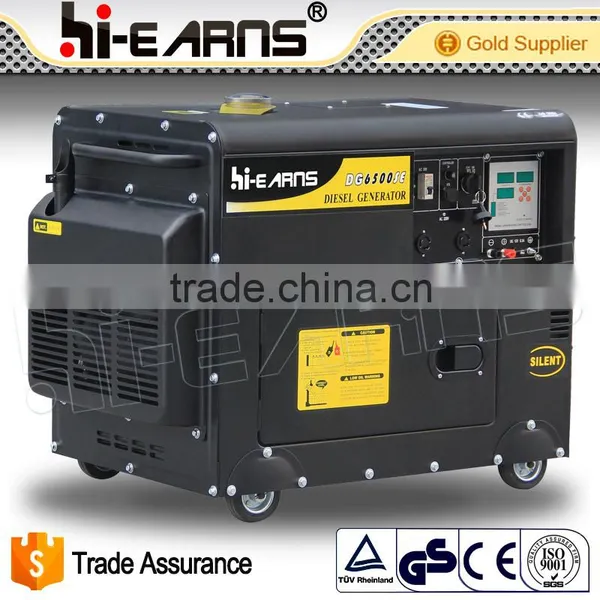

AC three phase 5KVA silent generator for home use
DG6500SE model: With 10 HP HR186FA diesel engine and 100% copper wire alternator ensure a 4.6KVA rated output, and 5KVA max. output!
| Model | DG6500SE | ||
| GENERATOR | Frequency (HZ) | 50/60HZ | |
| Max.output (KW) | 5/5.5 | ||
| Rated output(KW) | 4.6/5 | ||
| Rated AC Voltage(V) | 120,220,230,120/240,220/380 | ||
| Power Factor | 1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single Phase | ||
| Alternator Type | Self-excited,2-pole, Single alternator | ||
| Starting System | electric | ||
| Noise Level (Dba/7m) | 68-72 Db | ||
| Fuel Tank Capacity (L) | 16 | ||
| Continuous Running Time (hr) | 8.5/7.8 | ||
| ENGINE | Engine Model | HR186FA | |
| Engine Type | single-cylinder, vertical,4-stroke air-cooled diesel engine | ||
| Bore×Stroke | 86×72 | ||
| Fuel Consumption rate g/kw/h | ≤280 | ||
| Fuel | 0# or -10# light diesel oil | ||
| Lubrication Oil Volume (L) | 1.65 | ||
| Combustion System | Direct Injection | ||
| STANDARD FEATURES | Voltmeter | YES | |
| AC Output Socket | 2 | ||
| AC Circuit Breaker | YES | ||
| Oil warning Light | YES | ||
| Oil Alert | YES | ||
| OPTIONAL FEATURES | Dccircuit breaker | OPTIONAL | |
| Calculagraph | OPTIONAL | ||
| Big wheel | OPTIONAL | ||
| Three phase voltage | Yes | ||
| Current meter | Yse | ||
| ATS | OPTIONAL | ||
| Remote control | Yes | ||
| Welding | NO | ||
| DIMENSIONS | Dimention(LxWxH)(cm) | 95*56*76 | |
| Net Weight(kgs) | 160 | ||
| 20FT loading pcs | 72 | ||
♦ Strict and Accurate incoming raw material quality control systemd(IQC), ensure the engine running in the best condition.
♦ Modern Production Workshop, stict producing process, ensure a fast and high-quality products output;
♦ Flow card ro record each details carefully;
♦ From the engine to generator, we all use 7 layer corrugated carton packing, plywood pallet, Ensure a portable and safety transport!
♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.
♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!
♦ ISO, CE, GS, ROHS certification for all over the world customer.
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
