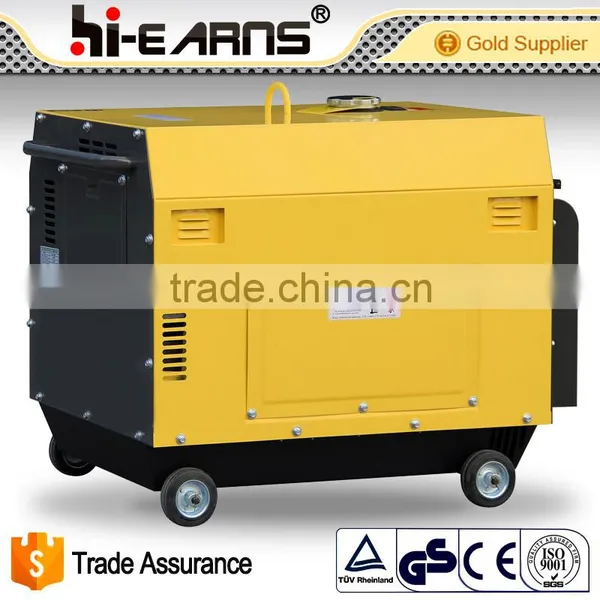

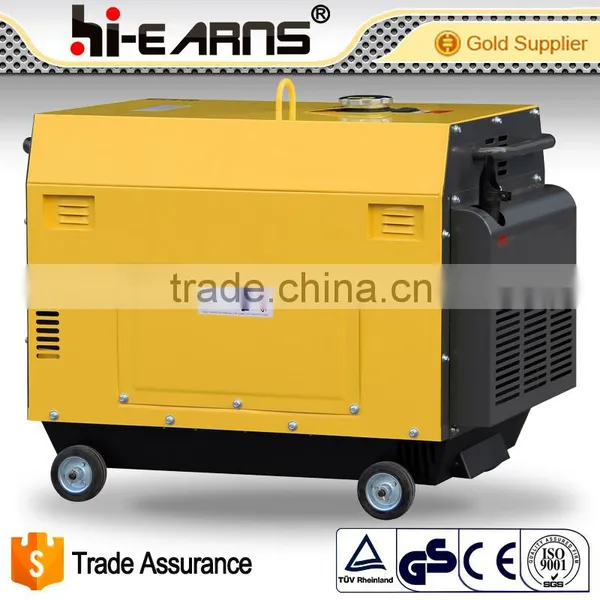

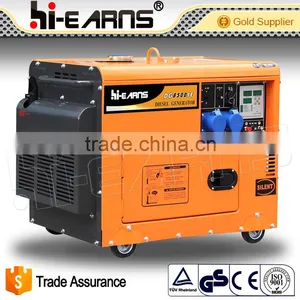

Silent type copy Kipor canopy silent diesel generator 5kw kipor generator

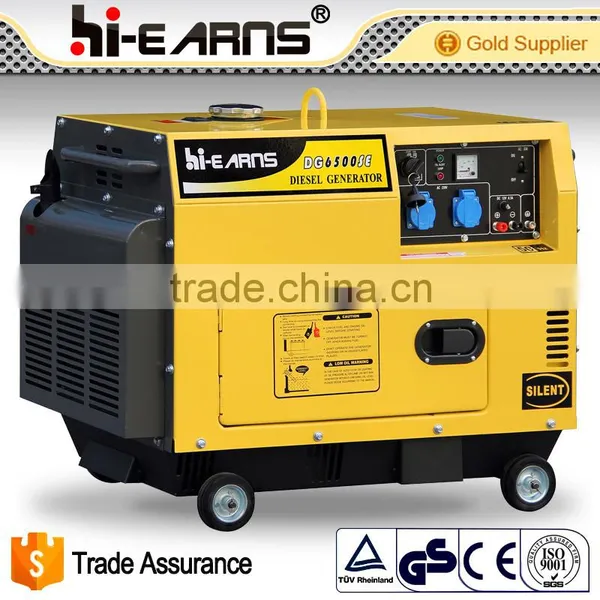

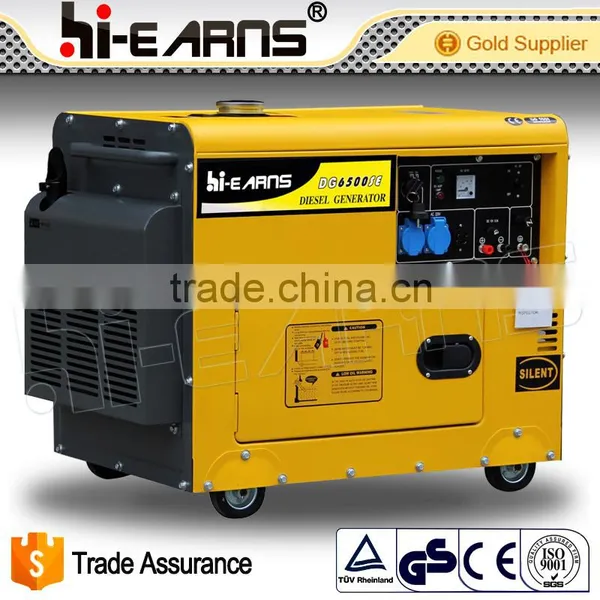

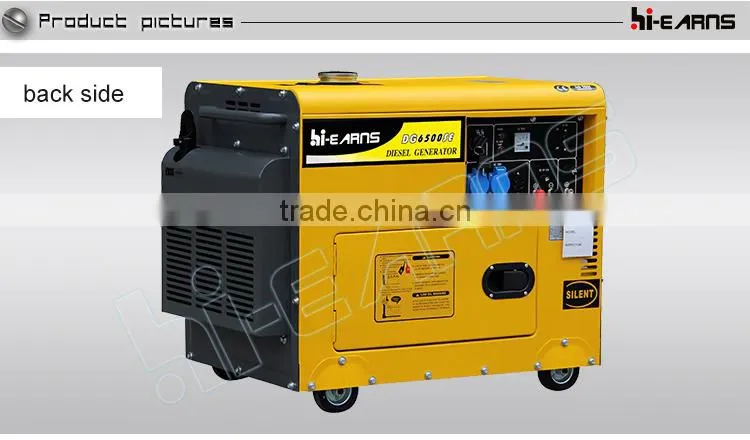

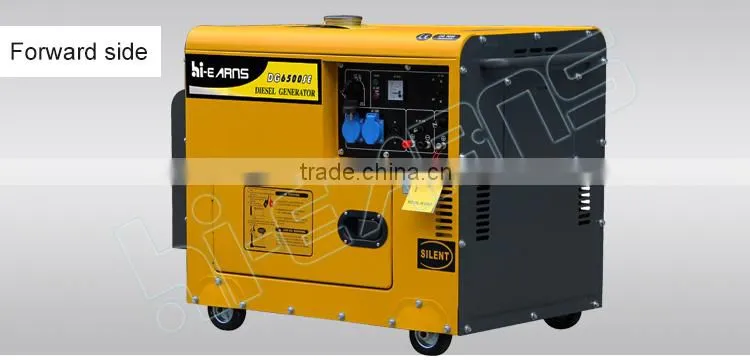

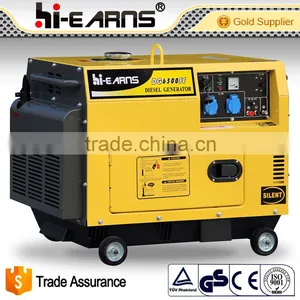

5KVA silent diesel generator DG6500SE
*10HP diesel engine HR186FA~
*100% copper wire alternator~
*Silent canopy, portable model~
*5KVA rated output~
*Four wheels ensure easy moving~
*Electric start with 30AH battery~

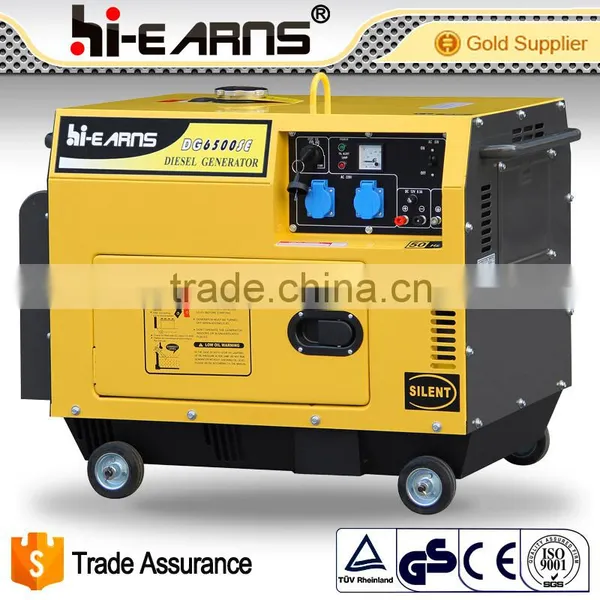

♦DG6500SE model: With 10 HP HR186FA air cooled diesel engine and 100% copper wire KETE alternator ensure a 4.6KW rated output, and 5KW max. output! diesel generator
♦Electric start with 30AH battery; Silent canopy with 4 wheels ensure easy moving; Best designed muffler; portable model for home use! diesel generator
♦Also have open frame model DG6000E, the noise maybe little bigger, and the price can have a discount!
♦For air-cooled models we can produce 2 to 10KW, also water cooled models we can do 8 to 500KW, so just inform me some details about what you need, I can give you best quotation asap.
| GENERATOR | Model | DG6500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max. output(kw) | 5 | 5.5 | |
| Rated output(kw) | 4.6 | 5 | |
| Rated. AC voltage(v) | 120, 220, 230, 240, 380, 400 | ||
| Power factor(cosΦ ) | cosΦ =1 | ||
| DC output (v) | 12V/8.3A | ||
| Phase | Single phase or Three phase | ||
| Alternator type | self-excited | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68-72DB | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 9.4 | 8.4 | |
| ENGINE | Model | HR186FA | |
| Engine type | Single cylinder, vertical, 4-stroke air-cooled diesel engine | ||
| Bore× stroke(mm) | 86× 72 | ||
| Fuel | 0# or -10# light diesel fuel | ||
| Lubrication oil volume(L) | 1.65 | ||
| Combustion system | Direct lnjection | ||

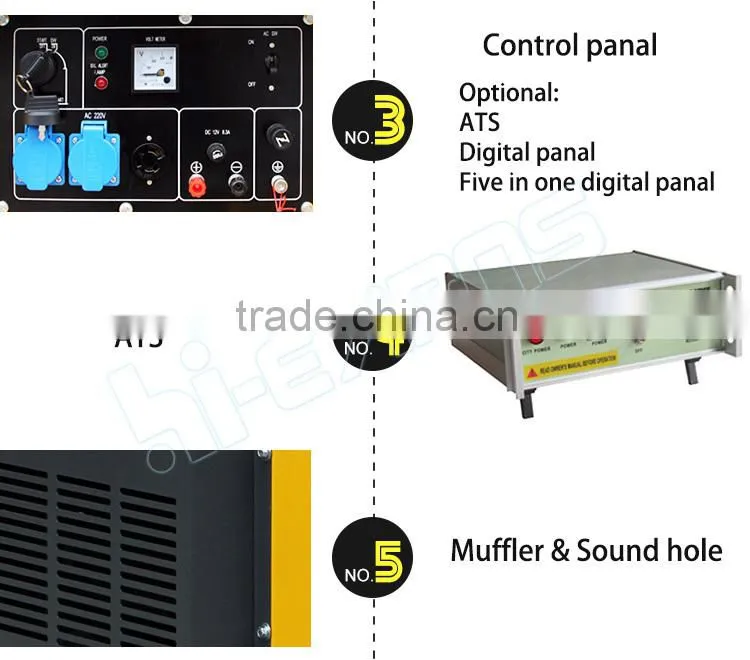

| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | no | ||
| DIMENSIONS | Dimension(L× W× H)(mm) | 950× 560× 710 | |
| Net weight(kg) | 147 | ||
| 20FT | 72 | ||
♦ From the engine to generator, we all use 7 layer corrugated carton packing, plywood pallet, Ensure a portable and safety transport!

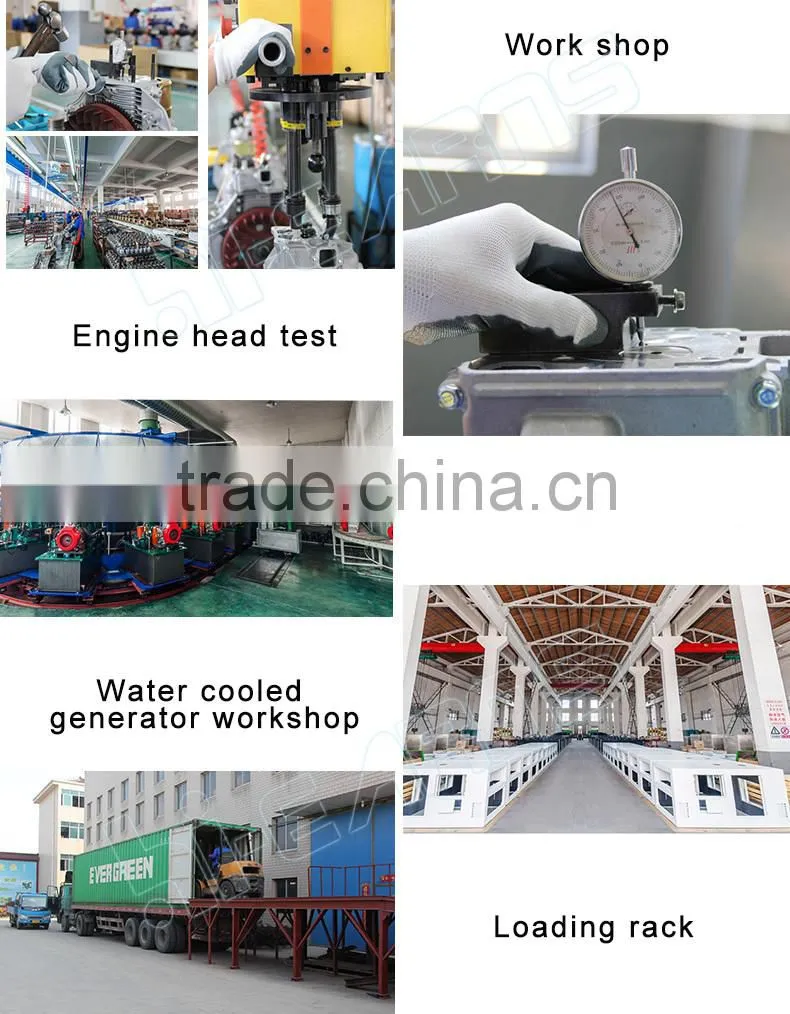

♦ We are professional manufacture of air-cooled diesel engine(3-20HP), diesel generator sets(2-1000KW), diesel water pump(1.5-6Inch), small construction machines and so on.

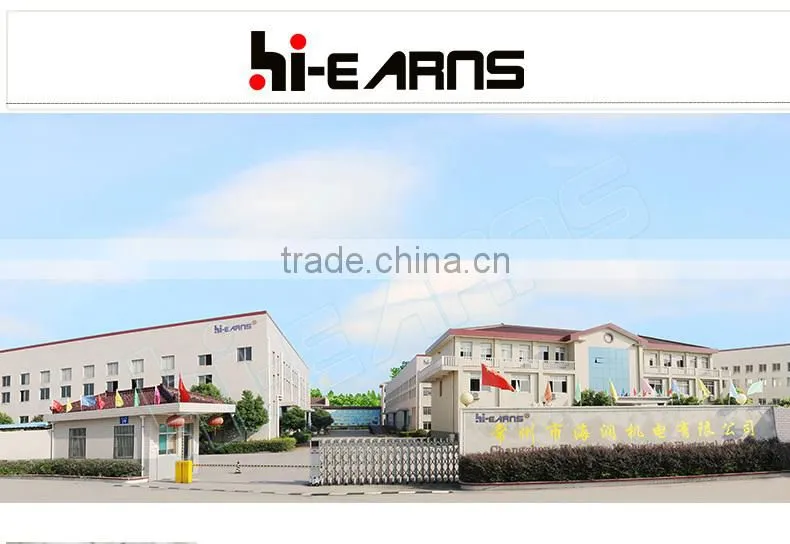

♦ Morden and beautiful factory of Changzhou Hi-earns, warmly welcome YOU from all over the world have a visit to us! (Only 2 hours drive from Shanghai!)
♦ We attended every Canton Fair and some oversea Exhibition!

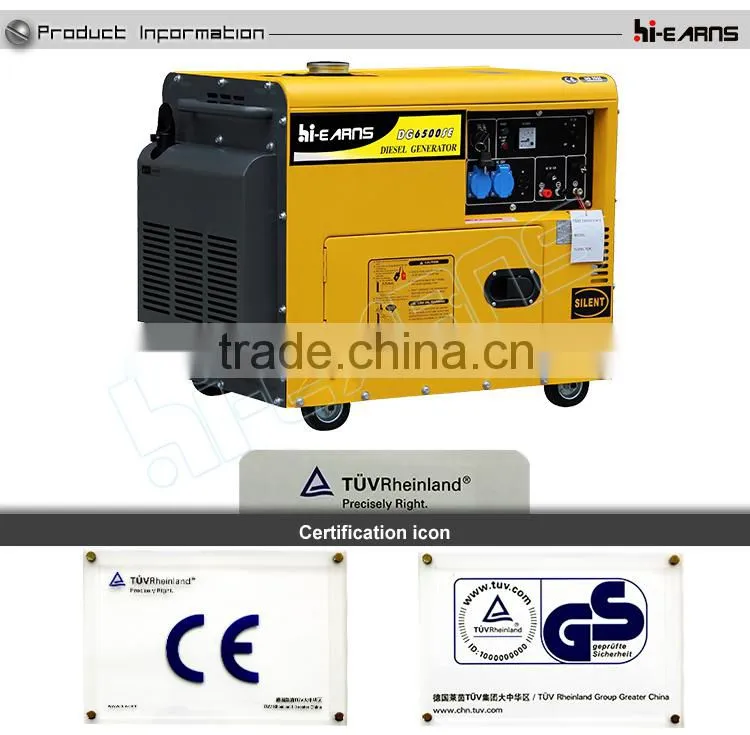

♦ ISO, CE, GS, ROHS certification for all over the world customer.
♦ With all the advantages described above, so we DARE to supply 1 year warranty!
♦ Low price spare parts provided beyond warranty period.
