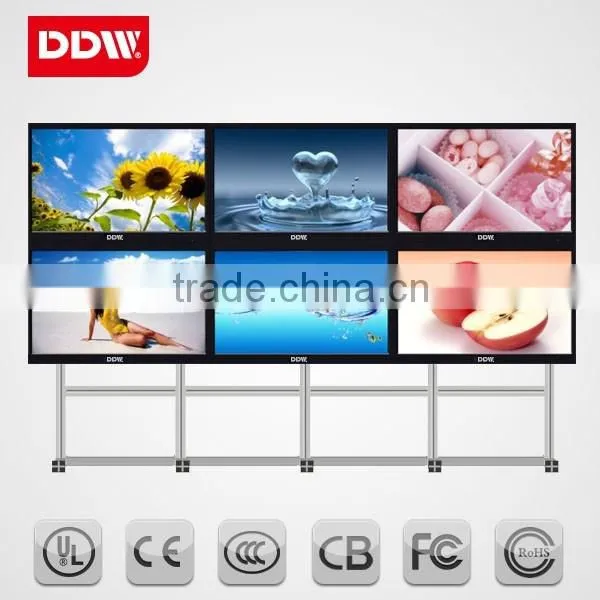

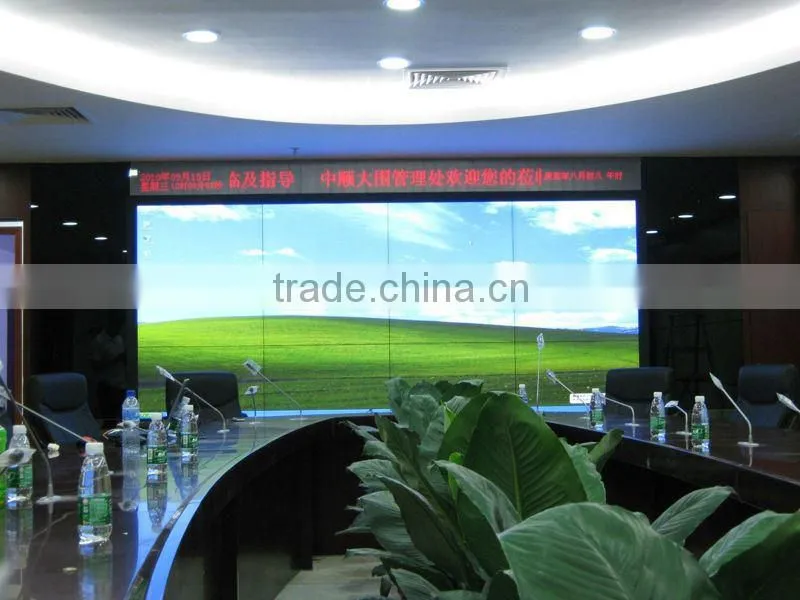

LCD video wall Floor Standing Racks
Led video wall features:
1,Original 55inch Samsung Industrial grade LCD video wall panel,16:9 a-Si TFT-LCD
2,LED backlight,500 brightness
3,HD physical resolution 1366x768
4,Only 6.3mm Ultra narrow bezel.high quality ,Practical ,good vision effect.

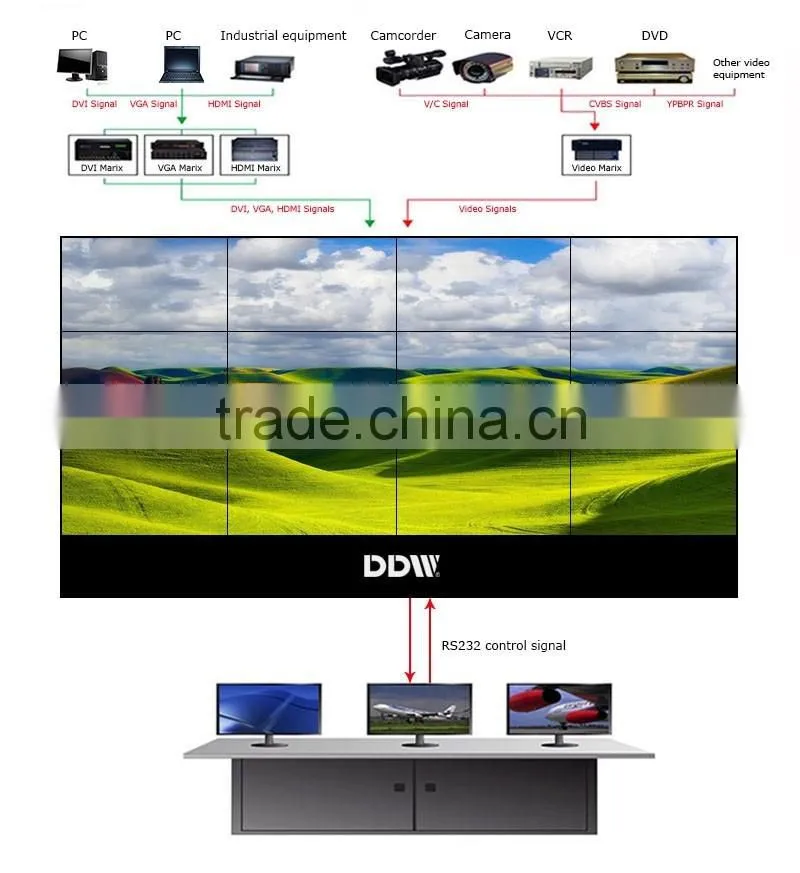

5,Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
6,HD video wall unit--- High brightness,high contrast,High gamut .
7,Flexible structure design ---easy installation ,extensible,arbitrary combination
8,Stable performance,suitable working for a long time
Applications:
Specifications
| Model No. | LD550DUN-TGB1 |
| Panel Specifications | |
| LCD Technology | Samsung a-Si TFT-LCD |
| Active Screen Diagonal | 55" |
| Pixel Pitch(WxH) | 0.630x0.630mm |
| Active Display Area(WxH) | 1328.8x747mm |
| Panel Dimension(WxHxD) | 1335.9x754.2mm |
| Total Bezel Width | 6.3mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1366x768 |
| Backight System | WLED |
| Luminance(nits) | 500cd/sqm |
| Contrast | 4000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=270W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
| Daisy chain video wall controller | |
| DVI-I DUAL LINK | 1 |
| HDMI | 1 |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 1 |
| ISP IN | 1 |
| IR IN | 1 |
| CODING BUTTON | 1 |
| AC IN | AC100-240V |
| Color System Support | PAL/NTSC/SECAM |
| Control Type | IR Remote &Software Control |
| Menu Language | English/Chinese(Multiple Language can be customized) |
