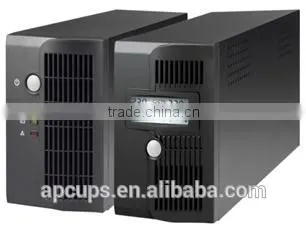

LINE INTERACTIVE UPS Power 1kva to 2kva

US$ 45.00 - 45.00 MOQ: 300 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

1kva to 2kva line interactive ups

Shenzhen Apcups Power Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen guangzhou hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OEM

Model Number 1kva to 2kva line interactive ups

Phase Single Phase

Protection Short Circuit

Weight 9.9-13.5

Output Voltage 110V/120V/220V/230V

Type Line Interactive

Application Other, computer ,home appliance

1K/2K LONG BACKUP TIME LINE INTERACTIVE UPS

Excellent microprocessor control guarantees high reliability

Boost and buck AVR for voltage stabilization

Selectable super charger

Auto restart while AC is recovering

Square sine wave

Off-mode charging

Cold start function

Product Description

1K/2K LONG BACKUP TIME LINE INTERACTIVE UPS SELECTION GUIDE

MODEL	1000VA	2000VA
CAPACITY	1000 VA / 600 W	2000 VA / 1200 W
INPUT
Voltage	230 VAC
Voltage Range	140-300 VAC
Frequency Range	50 Hz
OUTPUT
AC Voltage Regulation (Batt. Mode)	±10%
Frequency Range (Batt. Mode)	50 Hz ±1 Hz
Transfer Time	Typical 4-8 ms
Waveform (Batt. Mode)	Square Sine Wave
BATTERY
Battery Voltage	12 VDC	24 VDC
Floating Charge Voltage	13.7 VDC ± 2%	27.4 VDC ± 2%
Maximum Charge Current	5A/10A/15A/20A (Adjustable from manufacturer)
INDICATORS
AC Mode	Green lighting
Battery Mode	Yellow flashing
Fault	Red lighting
PROTECTION
Full Protection	Overload, discharge, and overcharge protection
ALARM
Battery Mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)	358.5 x 96.8 x 146.5
Net Weight (kgs)	9.9	13.5
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 40dB
