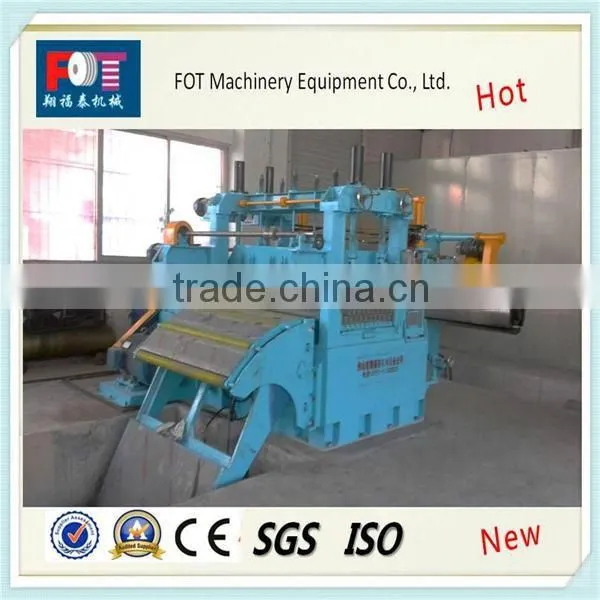

high quality cheap automatic sheet straightening machine
1 Function and usage
the cold-rolled sheet wave form of the CRS (Cold Rolled Steel) belt will be removed through stretch bending and straightening of two bending one straightening; and its property will also be adjusted. Electrostatic oiling can be equipped if necessary to make the profile shape clean and level. This unit is suitable for manufacturers of simple belt, stainless steel band, copper aluminum tape, etc.
2 Process of the production line
Unreeling→two-roll clamp feeding→ hydraulic cutting→ welder→entrance S-roll→ stretch and straightening machine→exit S-roll→ oiler→reeling machine (floating)
3 specification of the production line
Roller length |
600 |
800 |
1000 |
1200 |
1450 |
strip width |
350-500 |
550-700 |
750-900 |
950-1100 |
1100-1300 |
strip thickness |
0.2-1.2 |
0.2-1.2 |
0.2-1.2 |
0.2-1.2 |
0.2-1.2 |
Extension rate |
0.5-3% |
0.5-3% |
0.5-3% |
0.5-3% |
0.5-3% |
Note: the machine can be designed according to client's demand, and the data is for reference only
...
