Specifications
cnc cut to length line for steelPLC control
Precision cutting

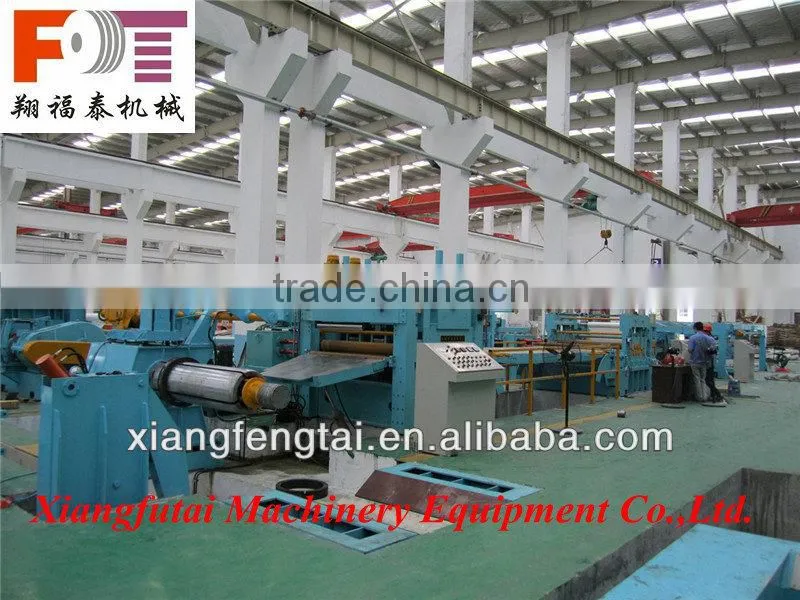

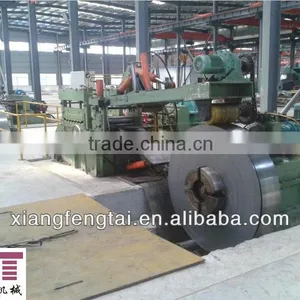

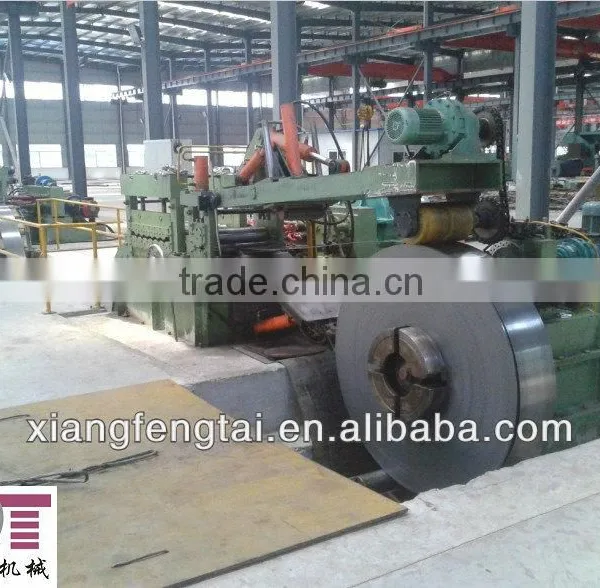

CNC cut to length line for steel PLC control
Pinch Roll leveler
Loop pit
Side guide & Measuring roll
Hydraulic Shearing machine
Roller Conveyor
Stacker
Electrical Panels & hydraulics
Characteristic:
PLC control
High cutting precision
Designed as per customers' requirement
Cut To Length Lines are purposed for Uncoil, Leveling and Straight as well as Cross Cutting metal strip to produce sheets for proper Stacking; every these functions are accomplished by our machines which are designed to cope with an impressive variety of material features ranging from the thinner softer aluminum to the thicker – tougher stainless and high strength carbon steel.
Coil strip of varying widths can be Cut to Lengths according to the desired length requirements. We provide Cut to Length lines for both H.R & C.R Coils with the following range:
Strip width - 150 mm to 1950 mm
Thickness - 0.2 to 12.0 mm
The coil strip is pulled by the leveler assembly & fed into the feeder assembly which is equipped with neoprene coated measuring roll coupled with a high resolution encoder to ensure the exact desired strip length is cut with utmost accuracy. Stacker trolley system with unique design of multiple stackers can be provided for maximum productivity with utmost efficiency by saving on the change over time of the stacks.
Model |
Sheet Thickness (mm) |
Roll Weight (ton) |
Roll Width (mm) |
Cut speed (M/min) |
Capacity (Kw) |
Occupied area (M) |
FOTH-400 |
0.2—2.0 |
5 MAX |
150-600 |
0-60 |
65 |
18X4 |
FOTH-600 |
0.2—2.0 |
10 MAX |
200-800 |
0-60 |
90 |
19X4 |
FOTH-850 |
0.2—2.0 |
15 MAX |
300-1000 |
0-60 |
150 |
20X4 |
FOTH-1300 |
0.2—2.0 |
15 MAX |
300-1300 |
0-60 |
210 |
25X8 |
FOTH-1600 |
1.0—8.0 |
30 MAX |
400-1550 |
0-60 |
360 |
30X14 |
FOTH-2000 |
4.0—12.0 |
35 MAX |
500-1950 |
0-45 |
650 |
55X14 |
