pipe processing production high frequency Stainless steel pipe mill line
pipe mill line could be make as per your design, to make good quality and make your profit larger is our target. so choose our pipe mill line is the biggest treasures of ourselves. ISO 9001:2008 and CE, GB, certificates keeps our pipe mill line good quality control, your OEM,ODM of any kind of pipe mill line is acceptable for our technicians, so email me right now while you scaning us.
we also have a good after services for you, our pipe mill line is design well so that you can control easily, we will keep 1 year repair freely. or your workers could be repair after our instructions.
1. General introduction of pipe mill line
FOT pipe mill line are used to manufacture welded steel pipes of diameter range from Φ7mm-Φ365mm, wall thickness range 0.2mm-10.0mm. They are also used to produce profiled pipes within the limit of processing round pipes, such as the square pipes,rectangular pipes, oval pipes,etc.
After absorbing advanced pipe making technology from both abroad and domestic, our innovative designed production line is not only economical but also practical.
2. Popular models and corresponding capacitiy of pipe mill line :
| Model | FOT12 | FOT25 | FOT45 | FOT60 | FOT76 | FOT115 | KJ165 | KJ219 |
| Diameter of welded tubes | 7-16mm | 8-30mm | 13-50mm | 16-63mm | 25-80mm | 40-120mm | 76-165mm | 114-219mm |
| Wall thickness of welded tubes | 0.2-0.5mm | 0.4-1.2mm | 0.8-2.0mm | 1.0-3.0mm | 1.5-4mm | 2.0-5.0mm | 2.0-6.0mm | 3.0-8.0mm |
| Speed of tube welding | 30-100M/min | 30-90M/min | 20-75M/min | 20-65M/min | 15-60M/min | 15-50M/min | 15-50M/min | 15-40M/min |
| High frequency power | 60KW | 100KW | 100KW | 200KW | 300KW | 400KW | 600KW | 800KW |
3, General Technical Flow:

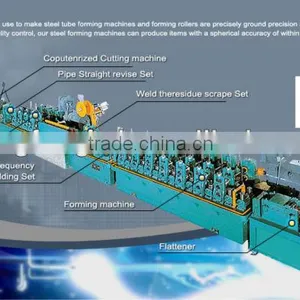

Uncoiling & Flattening→Forming, H.F. Welding & Sizing→Bead and burr removing→Cooling & tracking Cutting→Tube run out & Collecting.

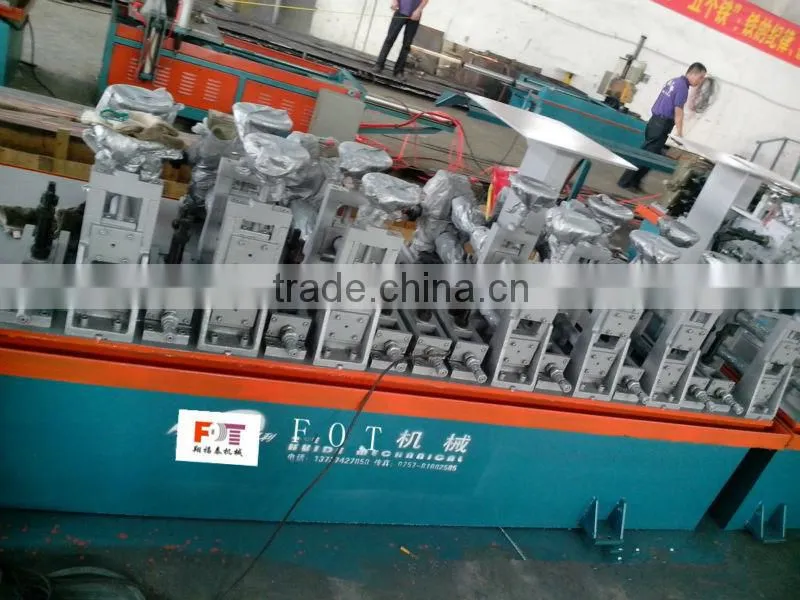

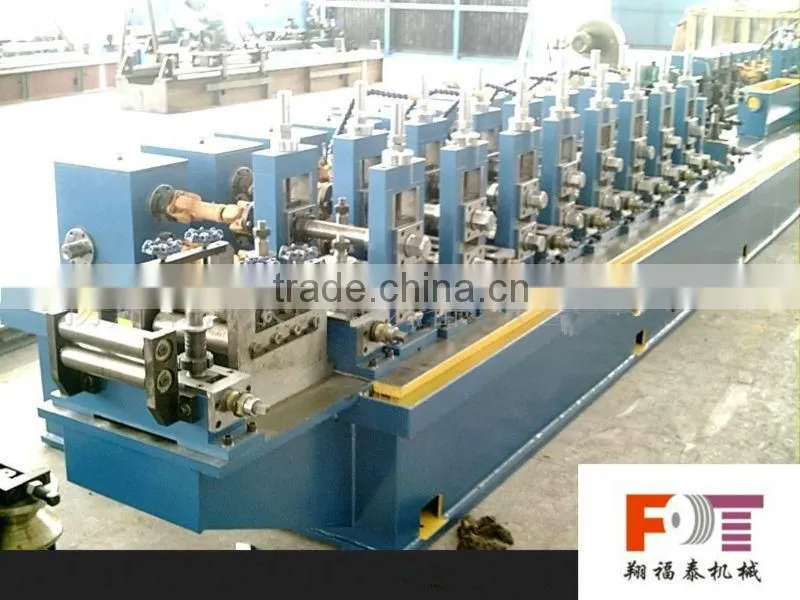

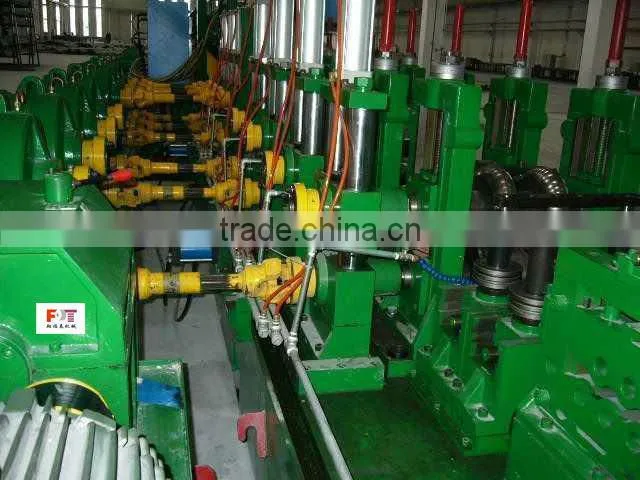

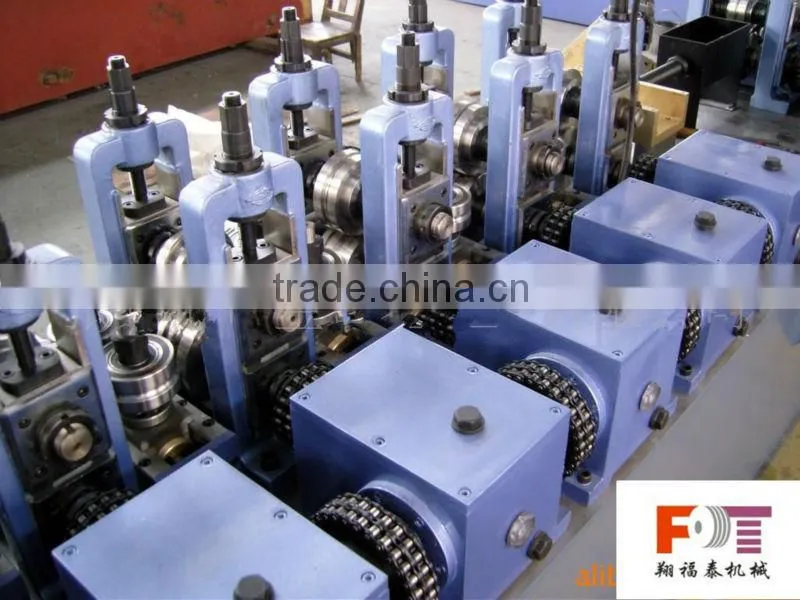

4, Photo show:
5, Certificates and contact of our pipe mill line
