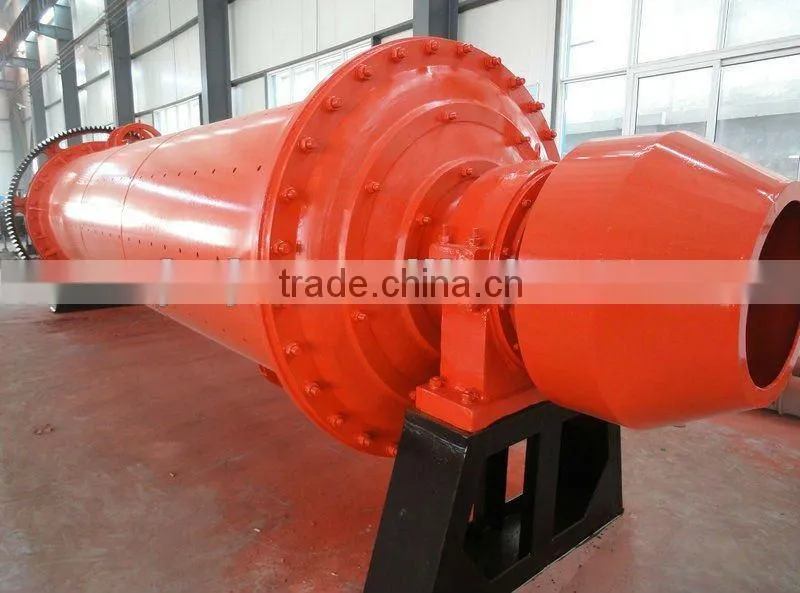

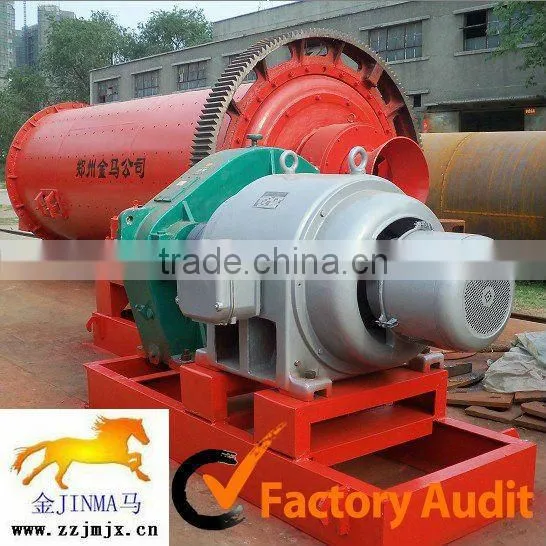

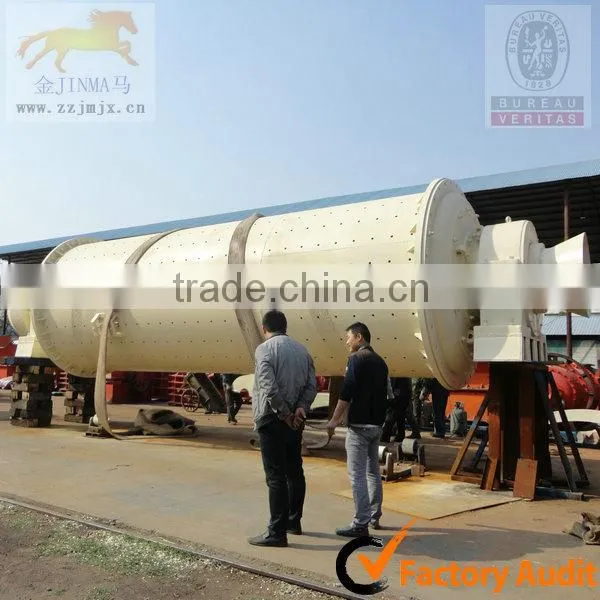

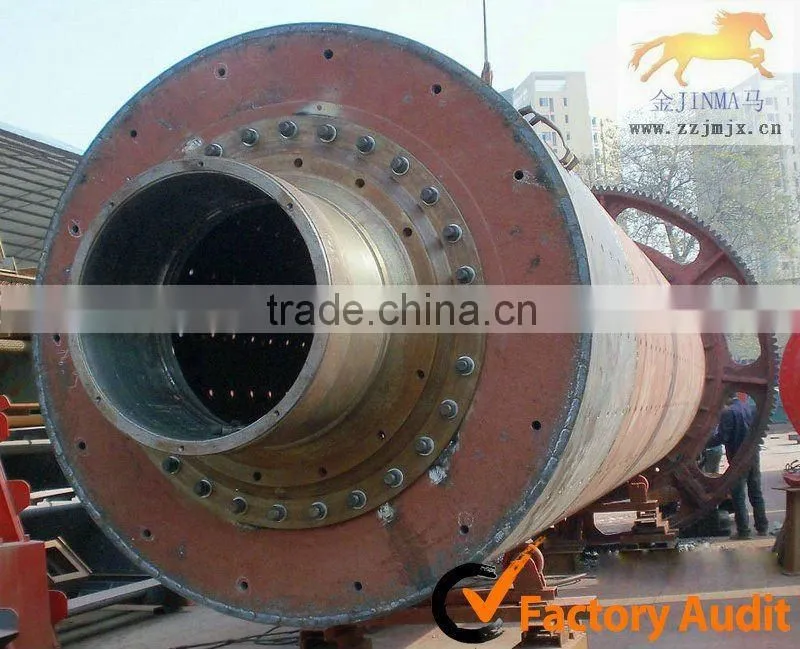

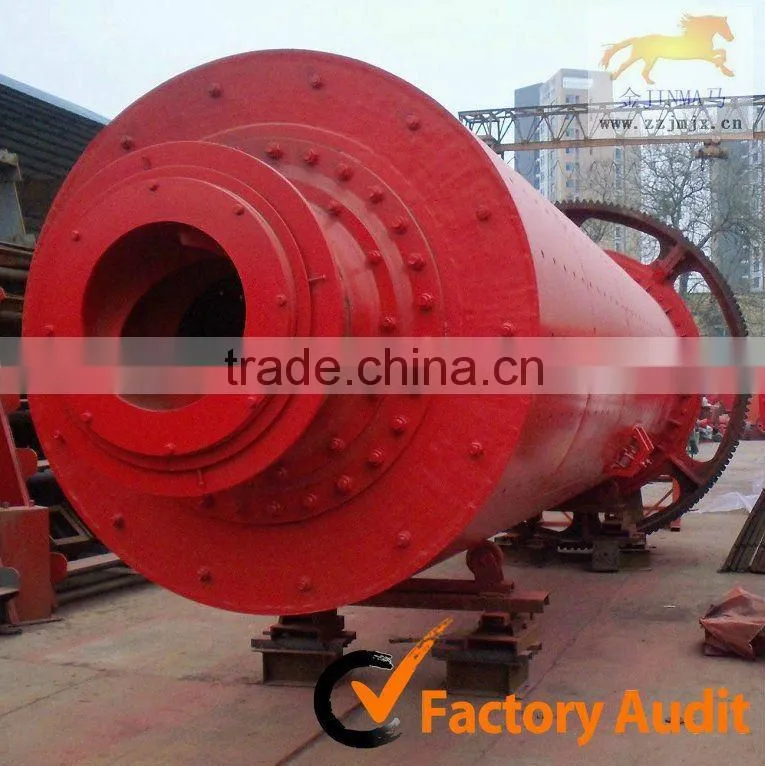

Stable Quality Conical Ball Mill For Sale
Conical Ball Mill technical parameter
Conical Ball Mill working principle
The conical ball mill
is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the
grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different
specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel
balls to a certain height and impact and grind the materials. The ground materials are discharged through the
discharging board thus the grinding process is finished.
Conical Ball Mill application
conical ball mill is an efficient tool for fine powder grinding. conical ball mill is often used for grinding
silica sand.
The conical ball mill is used to grind many kinds of mine and other materials, or to select the mine.
conical ball mill is widely used in building material, chemicalindustry, etc.
There are two ways of grinding: the dry way and the wet way.
Conical Ball Mill Structural
The conical ball mill is mainly composed of feeding mouth, discharging mouth, rotary part, transmission part (reducer, small transmission gears, engine and electric control device).
The hollow shaft is made of cast steel and the interior lining board is changeable.
The big rotary gear is fabricated with the casting gear hobbing.
Conical Ball Mill features
1.
Using large diameter double row self-
aligning bearings instead of the ordinary, a long service life, free maintenance and low friction, the actual energy consumption can be reduced by 15-30%, it is easy to start.
2. A conical structure is adopted near the discharge end, which reinforces the mill, more importantly, it makes the steel balls classified naturally, with small diameter of the steel balls near the discharging hole and fine grain size of the materials milled.
3.
By adopting an integral steel under-frame, the installation precision is high and easy to install, with a short cycle.
4.
Power consumption is suitable for outside worksite.
5.
It can grinding hardness materials, like ore,mine, lime.
Q: What' the difference of wet ball mill and dry ball mill?
Ball Mill has dry and wet ways.
When wet Ball Mill works, certain water and other liquid will be added into materials to increase flow ability of materials, so the capacity is increased.
When dry Ball Mill works, capacity is affected because material flow ability is reduced, so absorbing wind device is needed on the outlet of Ball Mill, and then negative pressure is formed in the Ball Mill to increase flowability of material, so the capacity is increased.
