Practical Sand And Gravel Wash Plant

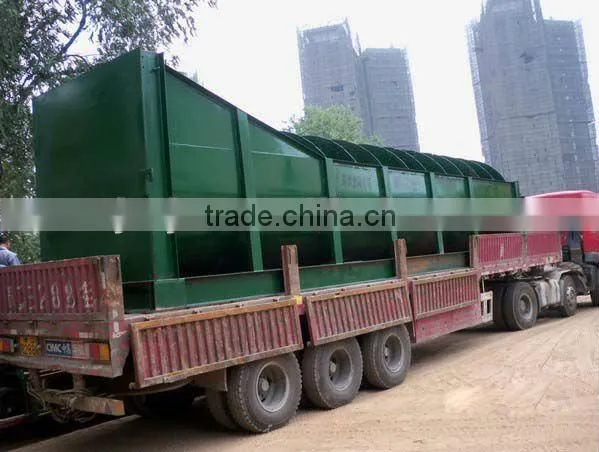

Practical Sand And Gravel Wash Plant photo-1

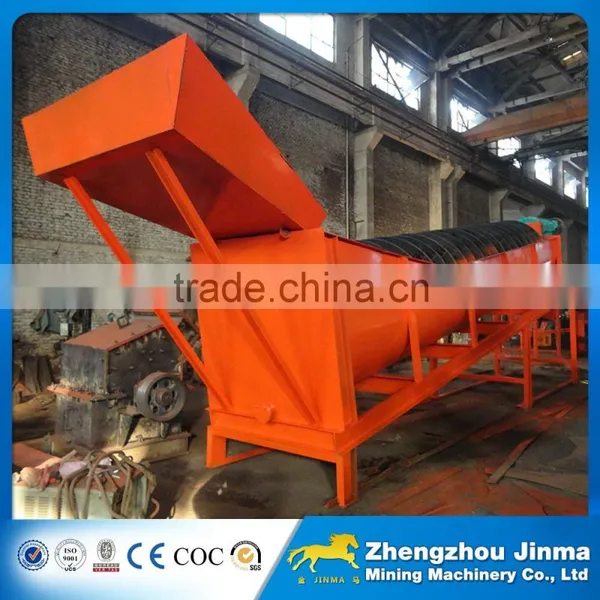

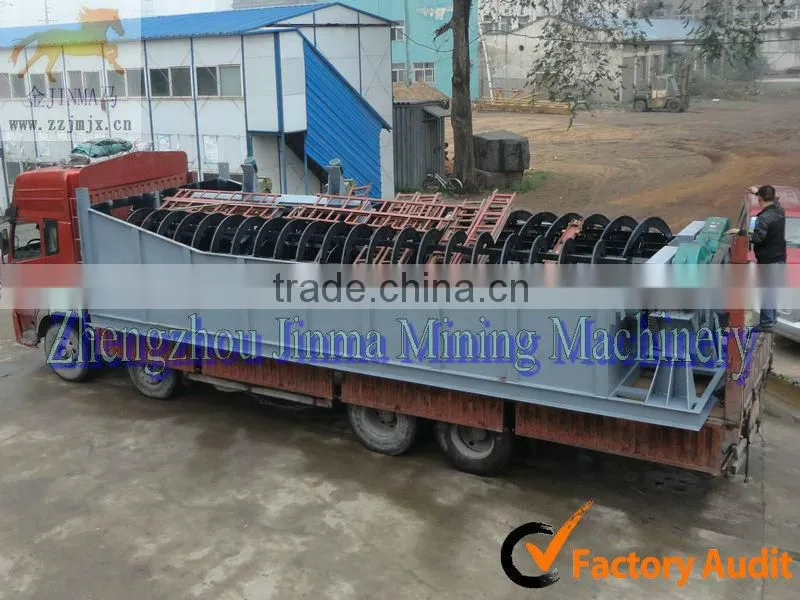

Practical Sand And Gravel Wash Plant photo-2

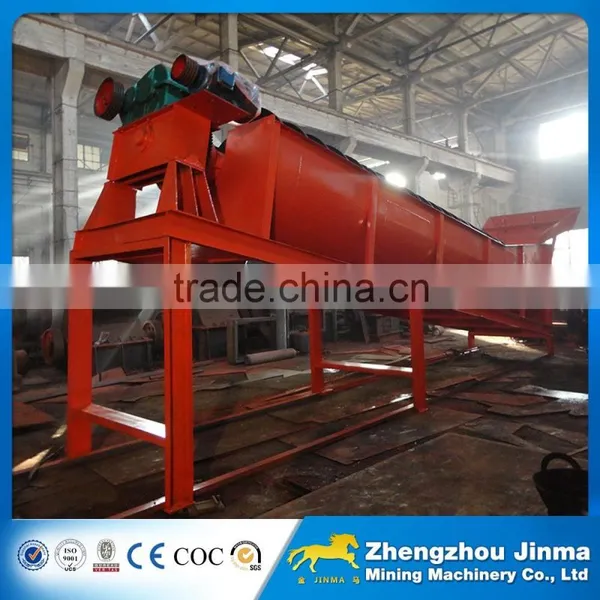

Practical Sand And Gravel Wash Plant photo-3

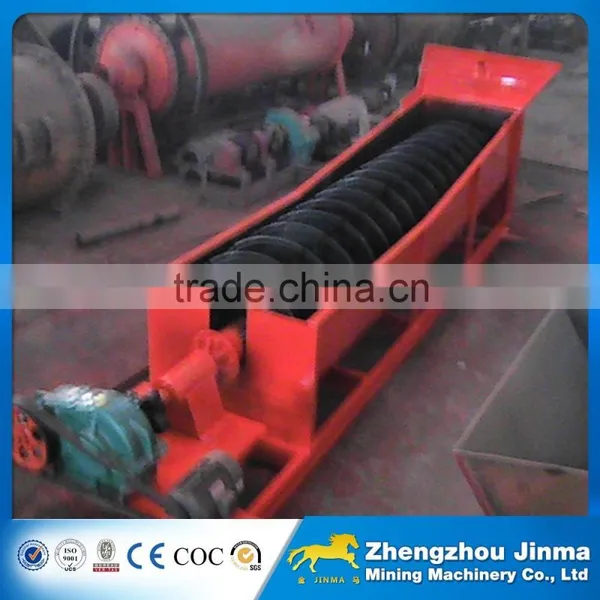

Practical Sand And Gravel Wash Plant photo-4

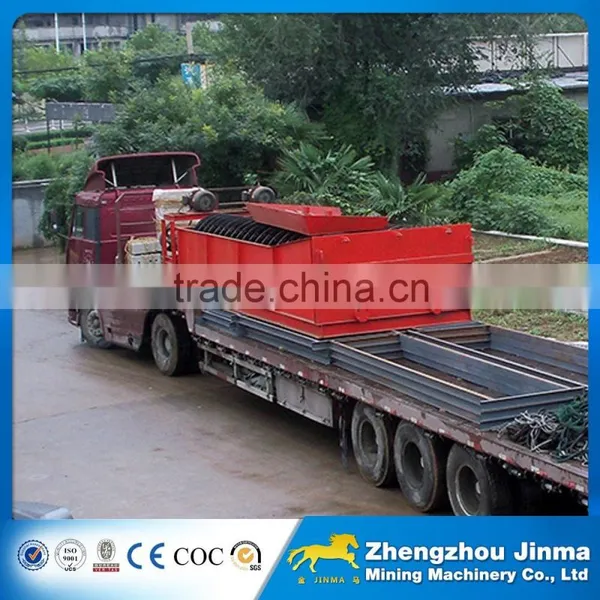

Practical Sand And Gravel Wash Plant photo-5

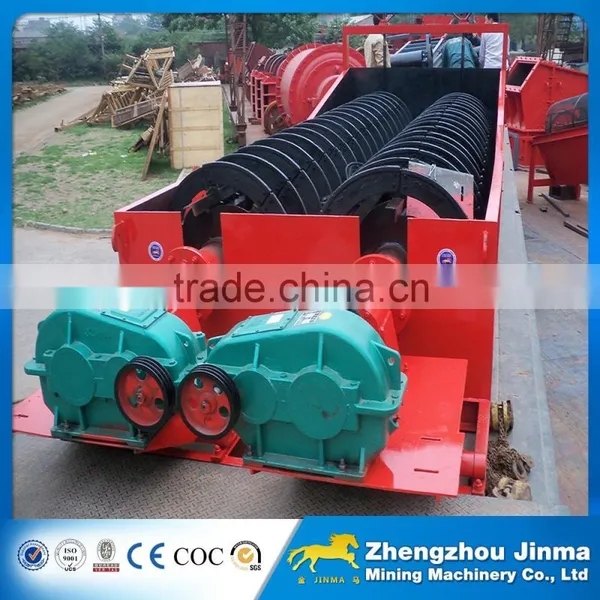

Practical Sand And Gravel Wash Plant photo-6
US$ 6,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Motor Type:
AC Motor
Power(W):
18500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjing Shanghai or as request
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Motor Type AC Motor
Power(W) 18500
Capacity(t/h) 20-130
Place of Origin Henan, China
Brand Name jinma
Model Number FG-1500
Weight 11T
Certification ISO9001:2008, BV, CE, SGS
Warranty two years
After-sales Service Provided Engineers available to service machinery overseas

! Practical Sand And Gravel Wash Plant:



Spiral sand washer is ideal for scrubbing difficult material. Tough insoluble clays, quarry, gravel, conglomerates and soft stone, and certain cemented aggregates are too difficult to clean. The spiral sand washing machinery thoroughly scouring, breaks down, and cleans the toughest materials. These high quality, highly durable machines perform well under the toughest clay conditions with minimum power, water.



!! Sand And Gravel Wash Plant working principle:

The sprial sand washer mainly consists of groove, reducer, motor, central shaft, screw blade, and trestle, etc. This machine is slope installation, the gravel is feed into groove through inlet (inlet position will be defined by user), it forms a settling tank at the bottom of groove, by the action of particles’ different settle speed in media, fine and light particle float on settling tank surface layer, then discharged from outlet, but big and heavy particles settle down, then be taken to the top outlet by screw. So the material is cleaned.





!!! Sand And Gravel Wash Plant application:



Iron Ore

Gravel

Crushed Rock

Recycled Material

Most kinds of bulk material that needs washed





!!!! Sand And Gravel Wash Plant technical parameter:





Model

spiral diameter

(mm)

Capacity

(T/h)

Inclination

(°)

Power

(kw)

Weight

(T)

FG-500

500

5-15

6-16

3

2.55

FG-750

750

6-40

6-16

7.5

3.82

FG-1000

1000

10-60

6-16

11

4.87

FG-1200

1200

15-90

6-16

15

7.9

FG-1500

1500

20-130

6-16

18.5

11

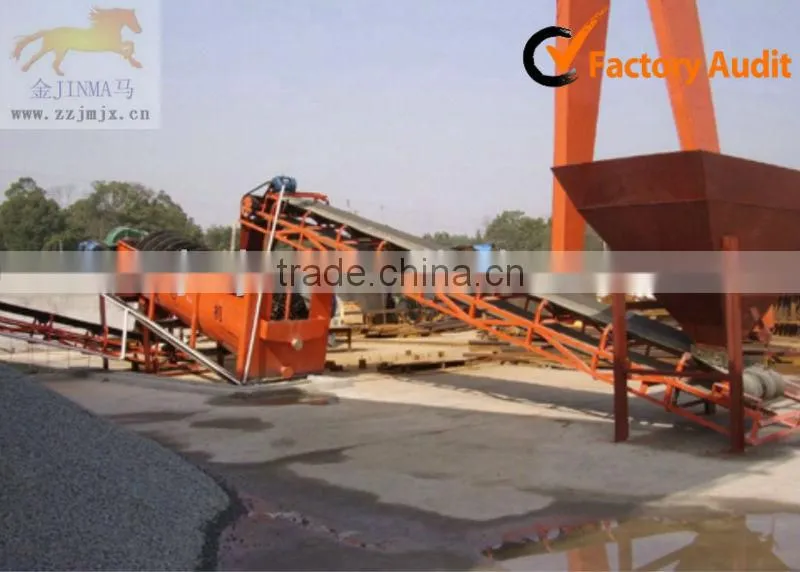

  Practical Sand And Gravel Wash Plant

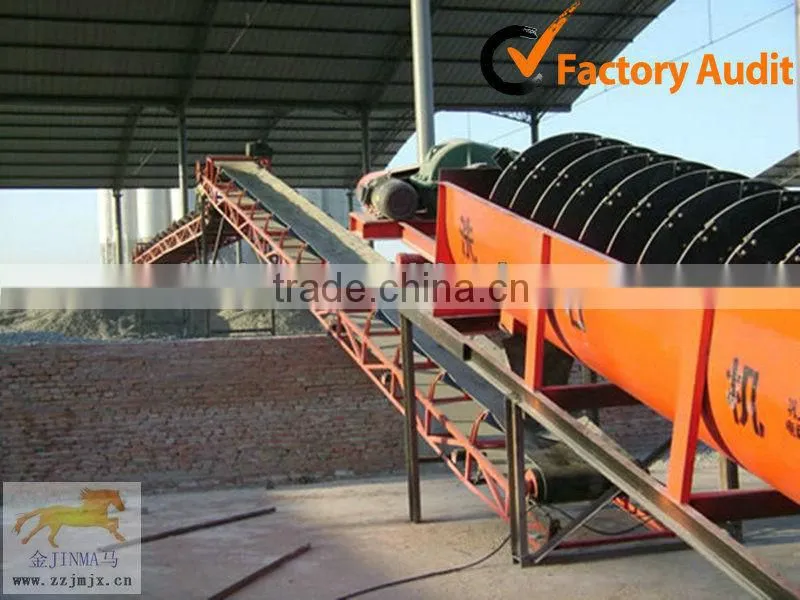

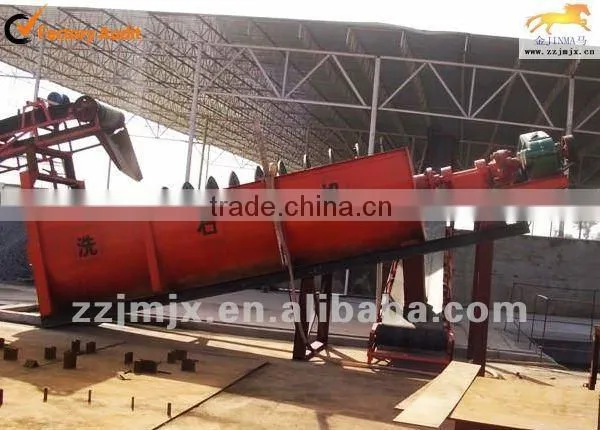

 Practical Sand And Gravel Wash PlantPractical Sand And Gravel Wash PlantPractical Sand And Gravel Wash Plant

Practical Sand And Gravel Wash Plant

Practical Sand And Gravel Wash PlantPractical Sand And Gravel Wash Plant
