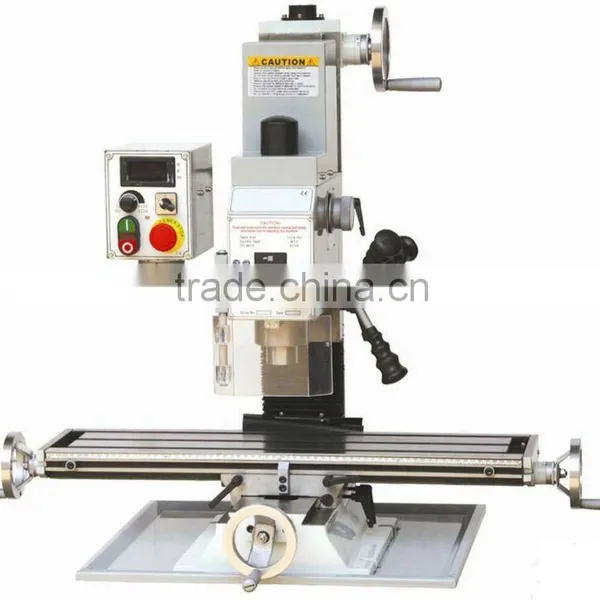

Help CenterCTS-M25V Milling Machine
Related Products
Specifications
Drilling capacity: 25mmVariable speed
Lower price
Model CTS-M25V CTS-M25VL
Drilling capacity 25mm 25mm
Face milling capacity 63mm 63mm
End milling capacity 20mm 20mm
Spindle taper MT3 or R8 MT3 or R8
Sleeve travel 50mm 50mm
Spindle speed 50-2250rpm 50-2250rpm
Head rotation 45degree 45degree
Table size 500x180mm 700x180mm
X axis travel 280mm 480mm
Y axis travel 175mm 175mm
Z axis travel 270mm 270mm
T-slot 12mm 12mm
Motor 750W 750W
Packing size 670x550x860mm 870x550x860mm
Net weight 113kg 125kg
Standard accessories: Speed display, Depth ruler, Drill chuck 3-16mm, Arbor, Drawbar, Operating tools.
Optional accessories: Machine stand and chip tray, Collet chuck set, 58pcs clamping kits, X axis power feed, Digital readout.
