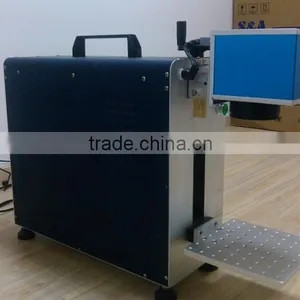

Poratable optical fiber laser marking machine 10W(Compatible for Metal,PVC,keyboard so ect)
(RE:With 3D work platform,with notebook)
Small fiber laser marking machine model features:
fiber laser marking machine is the use of the world's most advanced laser technology developed by a new generation of laser marking systems. Using fiber laser output laser, and then the system to achieve high-speed scanning galvanometer marking function. High fiber laser marking Electrical and optical conversion efficiency of over 20%, greatly saving energy. By way of cooling, thermal performance, no air conditioning and water circulation systems, fiber can be coiled, compact machine, good beam quality, the resonant cavity without optical lenses, with adjustment-free, maintenance-free, high reliability performance. Widely used in plastic buttons, plastic buttons, charger, cell phone and other marking translucent keys work. Especially for depth, smoothness, finesse higher areas, such as watches, mold, bitmap marking and so on.
Features:
1, marking software is powerful, compatible with Coreldraw, AutoCAD, Photoshop and other software files; support PLT, PCX, DXF, BMP, etc., can be used directly SHX, TTF font; support automatic coding, serial number, batch number, date, bar codes, two-dimensional code, automatically jump numbers
2, using the integration of the overall structure, equipped with automatic focusing system, user-friendly operation. 3, the use of imported isolators to protect fiber laser window, enhanced stability and laser life.
4, without any maintenance, long life, small size, suitable for harsh environments.
5, processing speed, is the traditional marking machine 2-3 times.
6, high electro-optical conversion efficiency, the machine consumes less than 500W, a lamp-pumped solid-state laser marking machine 1/10, significant savings in energy costs.
7, beam quality marking machine much better than traditional solid-state laser for the fundamental mode (TEM00) output, focus spot diameter of less than 20um. Diode-pumped laser divergence angle is 1/4. Especially for fine, precision marking..
Small fiber laser marking machine main configuration
A German IPG 10W fiber laser
2 Import field lens
3 imported high-speed galvanometer
4 optical bench, control cabinets, three-dimensional table
5 Control Box
6 Marking Card
7 computer (laptop or industrial machines and monitors)

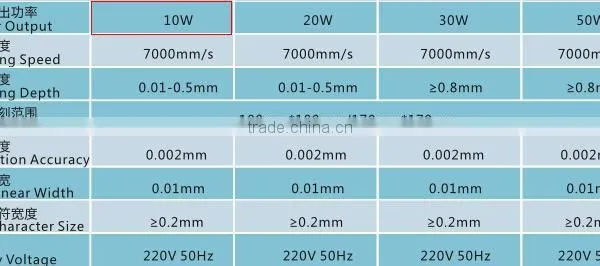

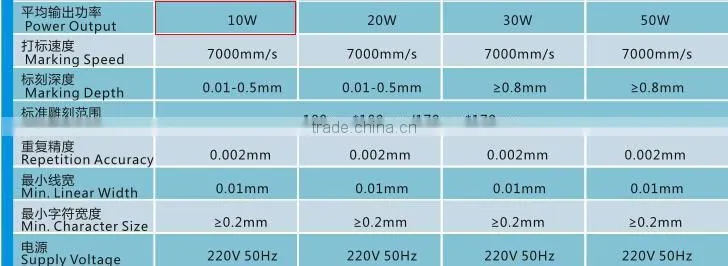

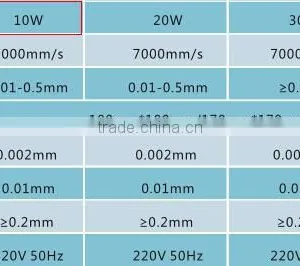

Technical Parameters
1 Maximum power:. 10w
Laser wavelength:. 1064nm
3 standard range:. 70 x 70 | 110 X 110
4 engraving depth:. ≤ 0.5mm
5 Marking speed:. ≤ 7000mm / s
6 Minimum line width:. 0.01mm
7 Minimum characters: 0.015
8 Repeatability:. ± 0.002
9 Total power consumption:. 500W
10 electricity demand: 220V/50HZ/12A
Packaging & Shipping
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
USBearth business group is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer , and Shuttle,ZM,KIDI,HonTon … Factory agent .
We has 10 years experiences in manufacturing and foreigh trade
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stationslike 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
