Help CenterFactory Price QL-1325A Wood CNC Router Cutting Machine For Sale
Related Products
-
QuanLi Stone Engraving Machine QL9015 For Natural Marble Granite Artificial StoneUS$ 7,500 - 98,000MOQ: 1 Set -
QL-9015 CNC Marble Engraving Machine Price For StoneUS$ 6,000 - 7,000MOQ: 1 Set
-
1118 Top Quality Engraver Cnc Router Machine Woodworking MultifunctionalUS$ 7,800 - 9,500MOQ: 1 Set
-
Pneumatic Bulls CNC Woodworking Series Engraving Machine For SaleUS$ 7,000 - 10,000MOQ: 1 Set
-
Foshan CNC Wood Engraving MachineUS$ 3,000 - 8,000MOQ: 1 Set
1. Parameters
| Name | Type-A wood cnc router machine |
| Dimension | 2900mm*1885mm*1660mm |
| Netto Weight | 950kg |
| Voltage | AC 220V |
| Power | 3.0kw |
| Working Area | 1300mm*2500mm*200mm |
| Working precision | <0.05/300min |
| Max. cutting speed | 8m/min |
| Max. engraving speed | 8m/min |
| Input order | G code |
| Spindle | Water cooling spindle with 3 kw/4.5kw power |
| Spindle RPM | 6000-24,000rpm |
| Shank diameter | 3.175/6.0/12.7 |
| Driver | Shenzhen RCON driver |
| Motor | Shenzhen RCON step motor |
| Frequency converter | Shenzhen Sunfar |
| Dust collection device | 3.0kw binocular |
| Control system | Ncstudio |
| Support software | cnc engraving software,CAD,CorelDRAW,Type3 |
| Rack type | Imported from Germany |
| Guide rail | 20mm linear square rail |
| Warranty | 1 year, not including consumable itemd like knife tool and collet |
2. Application:
- Widely used in making and processing sign, nameplate, acrylic-cutting, plastic moulding and large cutting, all kinds of wooworking products, photo frame, craftwork, etc.

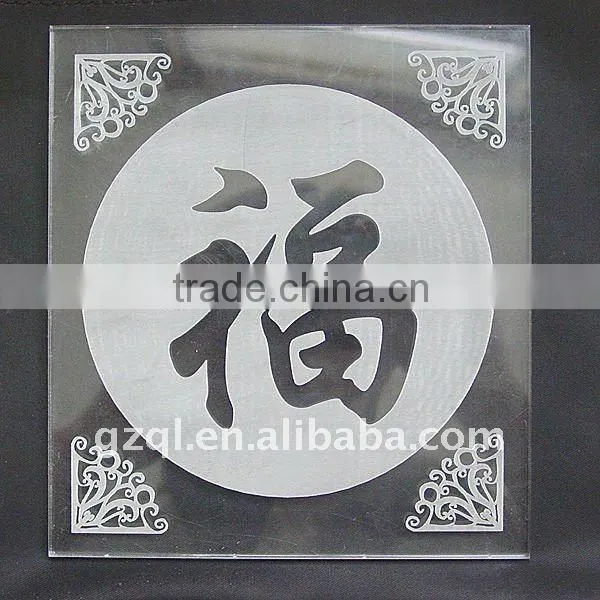

- Also applied to engraving iron, alu, plastic plate, wood and other metallic/non-metallic materials.
3. Features
- Intelligent protection against scratches on working table and mechanical impact, when desighed area exceed the working area
- Whole-iron-welded lathe bed, aging treatment gurantees no deformation
- Double motor driver on Y-axis gurantees stable movement
- High-precision gear rack transmission ensures high speed and accuracy
4. Advantages
- Speedy processing: same speed for curve and straight line, max travel speed reaches 20m/min.
- Big storage room: support direct output from USB-stick with storage room up to 4 Gegabyte.
- Two control modes:1. Ncstudio with internet, one PC controls several equipments at the same time. 2. Off-line control with hand grip and RJ 45 pattern interface.
- Compatibility of various files: Type3, ArtCAM, Casmate, CAXA, etc.. High support rate of G- and IJK-code.
- Multi-functional operation: breakpoint restore function, continued engraving from breakpoint, automated emendation, resharpen, parking position setting and positioning with up to 9 coordinates.
Warranty
1.One year quality guaranty, the machine with main parts(excluding the consumables)
2.With lifetime maintenance
3.Free training course at our company
After-sale Service
a)Engineer available to serve machinery overseas
b) All the machines will be tested and adjusted as per requirements before shipping.
c) On-site training service provided.
