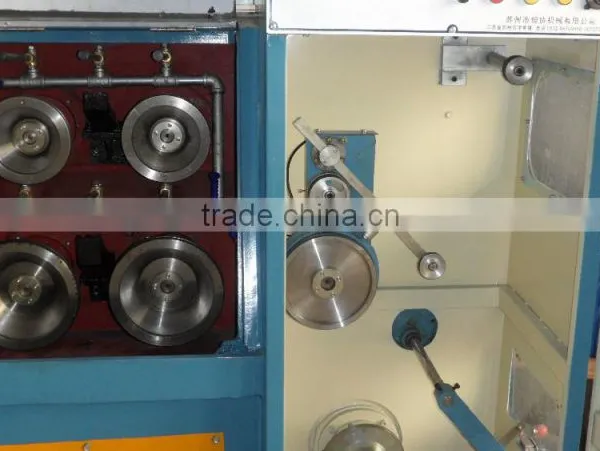

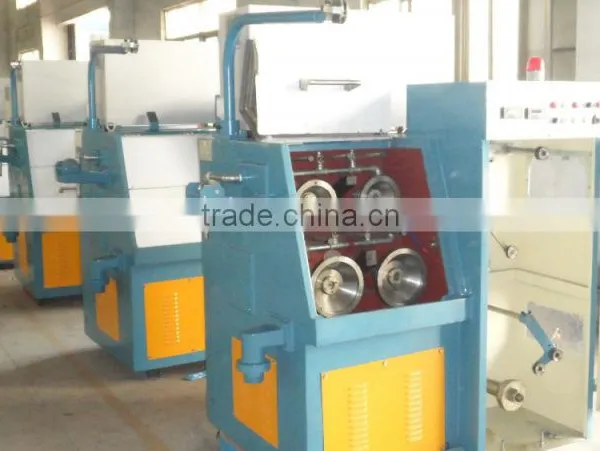

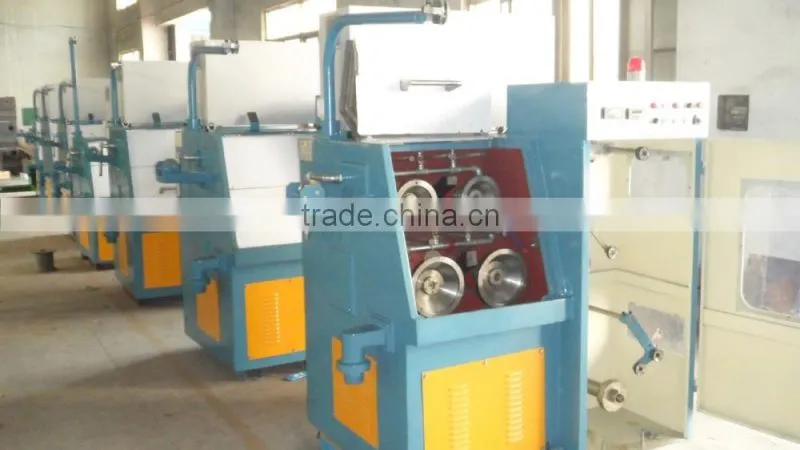

Fine House Wire Drawing Machine

Fine House Wire Drawing Machine thumbnail-3

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

HXE

Model Number:

22DS

Contact Supplier Request Quote Chat Now

Suzhou Hengxie Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name HXE

Model Number 22DS

Usage Drawing

Specification

1.Inlet size: 0.6-1.2mm

2:outlet size: 0.1-0.32mm

3.speed: 2500

Main technical parameter

Machine type	HXE-22DS	HXE-24DS	HXE-14DS
Inlet diameter	0.6-1.2mm	0.5-1.0mm	0.8-1.6mm
Outlet diameter	0.1-0.32mm	0.08-0.25mm	0.25-0.6mm
Max line speed	2500mpm	2500mpm	1500mpm
Die numbers	22	24	14
Slip ratio of machine	15%	13%	15%
Slip ratio of capstan	8%	8%	8%
capstan	Ceramic
Max capstan diameter	242	242	316
Fix speed capstan diameter	207	207	268
Frame	Cast iron	Cast iron	Welded by steel plate
Main motor	11kw three phase AC motor		15KW three phase AC motor
Spool motor	3.7KW three section AC motor		5.5KW three section AC motor
Revise system	Synchronous control spool
Transmission type	Flat belt		Synchronous belt
Pay off method	Over head
Traversing unit	Flat belt with synchronous motor
Tension control	Weight balance by swing arm
Lubrication type	Spray type
Applicable spool size	300	300	300-400
Spooler capacity	50-60	50-60	50-80
Bobbin loading&unloading type	Shaft type
Power source	380V
Brake	Magnetic brake
Dimension	2050X1600X1900H	2050X1600X1900	2600X1600X1900X
Weight	2500	2500	2200

Certification

Packaging&Delivery

Exhibition

Brand of accessories

Inverter : Invoance

Motor :Wannan

Precision resistance: WDD military enterprise

Bearing :NSK

Low voltage equipment: France Schneider

Warranty

6 month for electrical part

12 month for mechanical part

After-sell service

Pre-sale training:In order to guarantee the customers are able fully to operate the rod breakdown machine , if the customer need, we can help customer training, includes:

(1) Correct operating mode

(2) Correct maintenance way

(3) Remove simple problem
