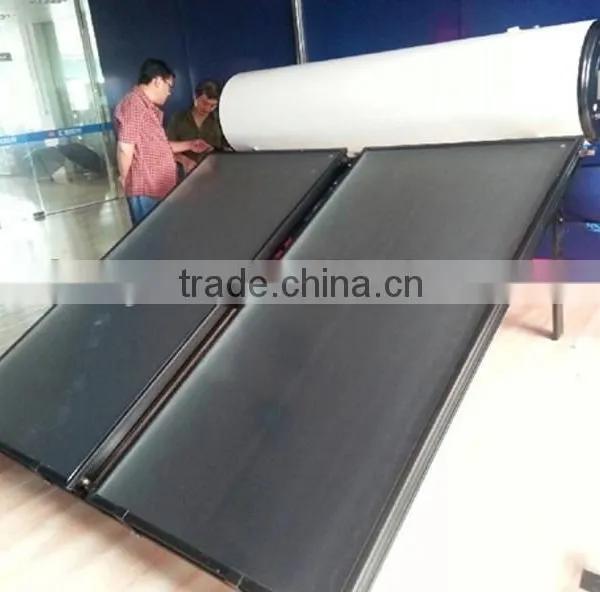

Commercial Flat Plate Solar Water Heater System Pressure 300liter CE

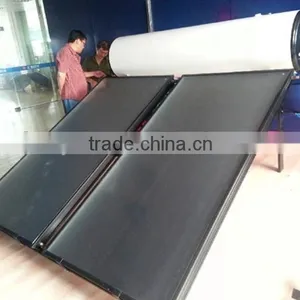

Commercial Flat Plate Solar Water Heater System Pressure 300liter CE thumbnail-1
Commercial Flat Plate Solar Water Heater System Pressure 300liter CE photo-1
US$ 298 - 998 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Flat-Plate
Pressure:
Pressurized
Circulation Type:
Indirect / Closed Loop (Active)
Contact Supplier Request Quote Chat Now
Suzhou Sinoyin Solares Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Flat-Plate
Pressure Pressurized
Circulation Type Indirect / Closed Loop (Active)
Heating System Thermosyphon (Passive)
Connection Type Split
Installation Other, flat roof mounting,pitched roof mounting,wall-mounted
Housing Material Stainless Steel
Certification CE, Other, CE, CE, solar key-mark,SRCC,CE,EN12975,ISO9001-2008,CCC
Capacity 150
Place of Origin Jiangsu, China
Brand Name Sinoyin
Model Number FP-GV2.00
Product Description

SINOYIN mian products: flat plate solar thermal collector and solar water heaters.

Quality is our culture!

All our items is coming with certification (Solar key-mark,SRCC,CE,EN12975,ISO9001-2008,CCC etc)

we can recommend the best one type solar water heater to meet your demand!

Welcome consulting latest price!

Model 1:

Compact(integrated) thermosyphon flat plate solar water heater system features:

  • High efficiency, Attractive design
  • Safe and environmental
  • Customized service
  • Easy installation and low  maintainance
  • Anti-freeze, works perfectly even -40 ℃
  • 5 years' warranty for flat plate solar collectors
  • Auxiliary electric heating system, guarantee hot water supplying for 24 hours, even under rainy day or cloudy day...
commercial flat plate solar water heater system pressure 300liter CEcommercial flat plate solar water heater system pressure 300liter CE


solar thermal panel thermosyphon water heater Specification

Specification

P-J J2-150/1.82/0.70-YTJ-01

P-J J2-300/3.64/0.70-YTJ-02

Water Tank

tank nominal Volume

150L

300L

diameter

555mm

555mm

longth

1200mm

2190mm

exchanger area

1.2m2

2.5m2

exchanger volume

8.6L

18.6L

in/out connecting

G3/4"

G3/4"

electrical heating

2500W

2500W

nominal pressure

0.7Mpa

0.7Mpa

P/T value work pressure

1.0Mpa/99℃

1.0Mpa/99℃

nominal voltage

220V,50Hz

220V,50Hz

waterproofing grade

IPX4

IPX4

weight

70Kg

120Kg

solar collectors

Specification

FP-GV2.0-80-1 for 150Liter

FP-GV2.0-80-1.0 for 300Liter

Dimensions

2000X1000X80mm

Casing material

aluminum alloy 6063-T5

Absorber area

1.823 sqm

Gross area

2.0 sqm

Absorber Material

Full-face selective Coated Aluminum,thickness0.4mm;

Absorber

Blue titanium/black chrome coating absorber

Absorptance

≥95%

Heat fluid volume

1.2L

Weight

34Kg

Thermal Efficiency

81%

Stagnation temperature

180℃



HOW TO WORK:

commercial flat plate solar water heater system pressure 300liter CE

Components:

commercial flat plate solar water heater system pressure 300liter CE

commercial flat plate solar water heater system pressure 300liter CE
System Cases show

  150 Liter compact solar water heater on flat roof:

commercial flat plate solar water heater system pressure 300liter CE



150 Liter compact solar water heater on Slope roof:

commercial flat plate solar water heater system pressure 300liter CE





If solar collector and water tank can not together put at your house roof, we recommend:

Model 2:

separate pressurized solar water heater (water tank seperately installed with solar collector, it can be layed anywhere.)



                 Temperature controller  in user's house.

commercial flat plate solar water heater system pressure 300liter CE




Name

Model

Qty of Collectors

Number of Persons

Configuration

FP-GV-S/E
(2000*1000*95/80mm)

150L
200L
300L

400L

500L

1

1-2

2

3

3-4

2-3

3-4

5-6

7-8

9-10

1.Controlled by computer totally

2.Imported blue titanium whole board flat solar collector

3.Brand expansion Case

4.Enamel/stainless steel water tank

Applicable area

 Villa, house and so on



split pressurized flat solat water heater system work principle:

commercial flat plate solar water heater system pressure 300liter CE




split pressurized flat solat water heater system accessories:
commercial flat plate solar water heater system pressure 300liter CEcommercial flat plate solar water heater system pressure 300liter CE

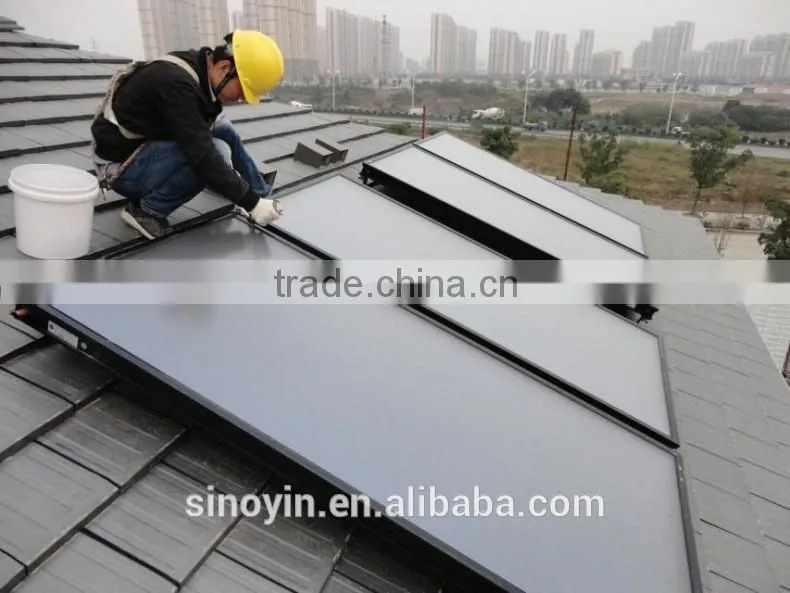

Cases show:

separate solar water heater on flat roof/pitched roof

commercial flat plate solar water heater system pressure 300liter CE

commercial flat plate solar water heater system pressure 300liter CE

We have a lot of detailed product information can not be released on this page, if you are interested, please feel free to contact us.





Part of Certificate

  Certificate: solar key-mark, SRCC, CE,CCC,ISO9001-2008, EN12975 etc.

commercial flat plate solar water heater system pressure 300liter CE





Packaging & Shipping

 commercial flat plate solar water heater system pressure 300liter CE



Because of large volume and weight, normally shipping by sea from Shanghai Port.

specially, please let us know.

FAQ



What are your main products?

Our company is factory in Suzhou Industrial Park, can provide you

  • Split pressurized solar water heater system (150L,200L,300L,400L,500L)
  • Compact pressurized solar water heater system (150L,200L,300L)
  • Solar water heater system for balcony (80L 100L 120L)
  • Central solar water supplying project (1 ton ,8 ton, 20 ton ,30 ton ,50 ton ,)
  • Solar building space heating /warming system
  • Three kinds of solar water heater collectors( 2000x1000x80mm ,2015x1015x76mm,  2050x1050x95mm)

what's the fast shippment?

The shipping date is estimated as the following :

  • European 12-30 days
  • North America 13-35 days
  • South America 25-40 days
  • Africa   28- 45 days
  • Oceania 10 - 20 days
  • Southeast Asia 3 -10 days
  • Middle East   15 - 30 days

The specific shipping date should according to your actual delivery port. Our FOB port is

Shanghai port ,delivery time is 3-15 days. Our solar system has 5 years warranty, we can

quote you FOB Shanghai price ,  ,we will send you CIF or CRF price accordingly

after you tell me your delivery port.



What is your MOQ , Payment , Production cycle ?

One set for solar system, two sets for solar collectors. 3-15 days production cycle.

T/T and L/C or other payment way after discussion.



Does your company provide free sample or how to get sample?

Since our products have high value, our company will not send free sample,

We offer samples with sample costs, shipping and taxes paid by the buyer.

or free sample when large quantity.



Why choose Sinoyin Solares?



1. S-type tube flat plate solar collector, have gotten the line patent in China.

No anywelding on the tube, no any leakage.

2. Whole plate laser welding, to minimize the damage to absorption layer.

3. The instant heat efficiency of the collector can up to 81.1%, much higher than the72% line standard, very rare in China.

4. The Solar Products has been selected into the official web of China government, it can beverified on the internet.
