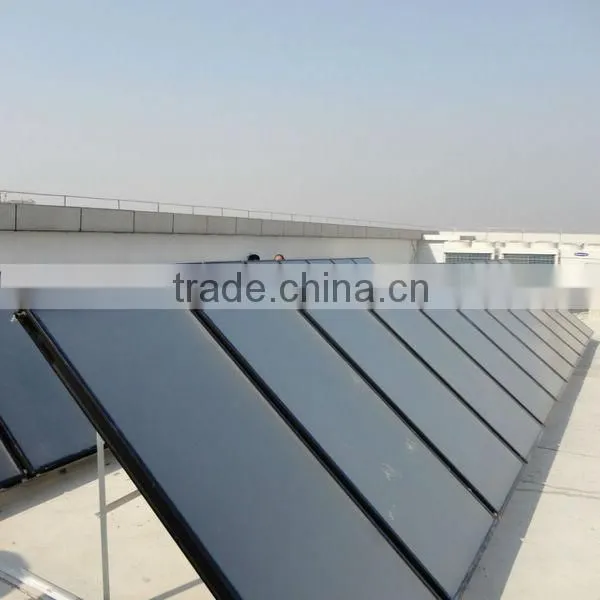

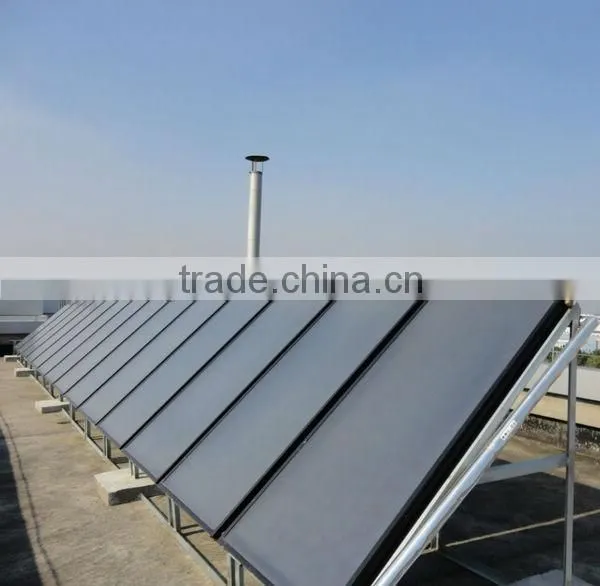

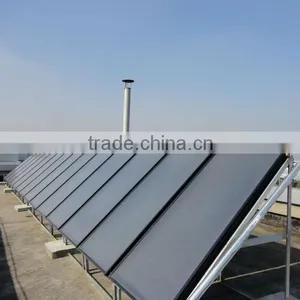

Solar Central Water Heating Project
Uses(at present)
1.For hot water heating
2.For swimming pool heating
Commercial/Industrial applications
Hotels,Hospitals,School,Food Processing,Industrial Process Heating
About Solar Water Heating Systems
Solar water heating system can be active or passive.An active system uses an electric pump
to circulate the fluid through the collector;a passive system has no pump and relies on
thermo-siphoning to circulate water.
The amount of hot water depends on the type and size of the system,the amont of sun depends
on the site,installation angle and orientation.
Quality Assurance--Solar Collector Test
* Internal pressure for absorber
* High temperature resistance
* Exposure test
* External thermal shock
* Internal thermal shock
* Rain penetration
* Mechanical load test
* Thermal performance
* Freeze resistance test
* Ice ball impact test
How to produce the collector ?
In-process
-Laser welder between absorber and copper tubing
-Process test with digital pressure meter at 1.2Mpa 5 minutes
-Automatic S type bending machine
-Automatic frame cutter
-Automatic frame assembly machine
-Automatic copper drilling machine
-Automatic plate leveling machine
System Main Configurations
1.Controlled by computer all the time
2.Imported blue titanium whole board solar collector from Germany
3.Pump station:SP116
4.Brand expansion case
5.Enamel/stainless water tank,depends on the buyer
System Characteristics
1.Unique designing plan for variety requirements
2.Intelligent control,automatic operatin
3.Auxiliary heating system,guarantee hot water supplying for 24 hours
4.Computer controlled and pressurized pipeline
5.Fully use of solar collecting area
6.Low cost input,great rewards
7.Save energy,reduce population
Water Configuration Table
Model Number |
Capacity of Water Tank |
Collector Area |
Persons |
PSD-1 |
1T |
16 m² |
18-20 |
PSD-8 |
8T |
120 m² |
120-160 |
PSD-20 |
20T |
300 m² |
350-400 |
PSD-30 |
30T |
450 m² |
500-600 |
PSD-50 |
50T |
750 m² |
800-1000 |

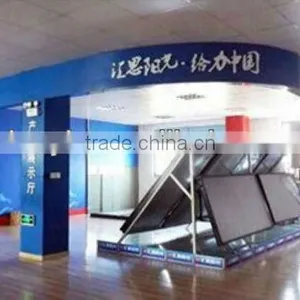

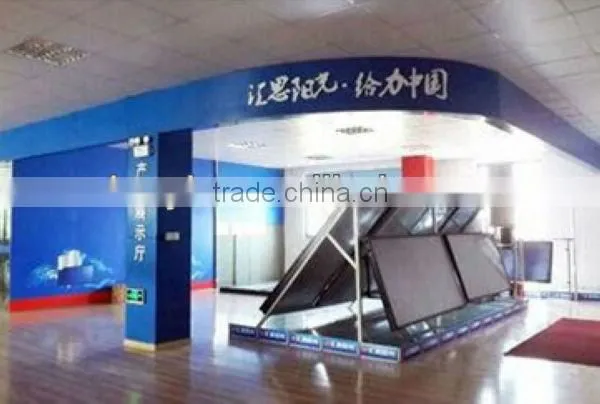

Products Showing Room
About Sinoyin Solares
Sinoyin Solares is a famous solar factory located in Suzhou Industrial Park,it mainly
specialize in developping and producing high quality flat plate solor collector and solar
water heating system for more than 6 years.
Why choose Sinoyin Solares?
1.S-type tube flat plate solar collector,have gotten the line patent in China.no any
welding on the tube,no any leakage.
2.Whole plate laser welding,to minimize the damage to absorption layer.
3.The instant heat efficiency of the collector can up to 81.1%,much higher than the
72% line standard,very rare in China.
4.The Solar Poducts has been selected into the official web of China government,it can
be verified on the internet.
How to contact us ?
Victoria
Suzhou Sinoyin Solares Co.,Ltd
Web:
Tel:86-0512-88876960/18915433725
Fax:86-0512-88876964

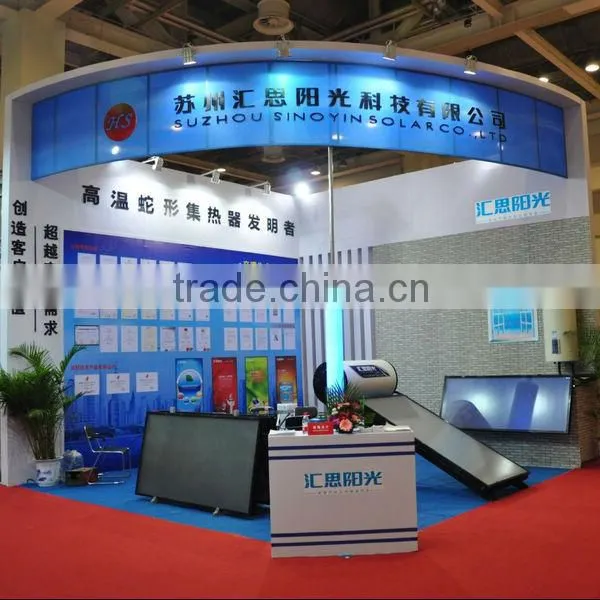

Sinoyin Solares in the Fair
