JD-88-A Type Two-step Semi-automatic Heat-resistant Bottle-blowing Machine

Name: JD-88-A Type Two-step Semi-automatic Heat-resistant Bottle-blowing Machine
Brand: koco
SKU: 104515989

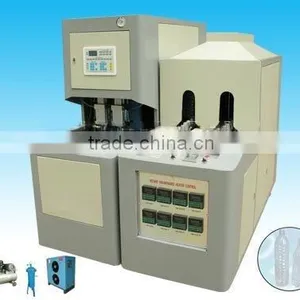

JD-88-A Type Two-step Semi-automatic Heat-resistant Bottle-blowing Machine thumbnail-1

JD-88-A Type Two-step Semi-automatic Heat-resistant Bottle-blowing Machine photo-1

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Product Type:

Plastic Bottle

Place of Origin:

Anhui, China

Contact Supplier Request Quote Chat Now

Koco Imp/Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Product Type Plastic Bottle

Place of Origin Anhui, China

Brand Name koco

Model Number JD-88-A

Certification CE

Specifications

1.It has high air pressure, big clamping force, small size
2.low energy consumption rate, easy to operate and maintain etc

JD-88-A two step semi Automatic Computer Controlled Rotatory Infrared Over Heating Bottle Blowing Machine specialized in the production of blowing the plastic container (PET/PMMA/PS/PP) with in 2L which is heat-resistant and superior difficulty.
It has high air pressure, big clamping force, small size, low energy consumption rate, easy to operate and maintain etc.

Technology Parameters

S/N	Item			Unit	Technology Parameters
1	Raw material			NO	PET/PMMA/PS/PP
2	Working pressure(air)			Mpa	0.7-0.9
3	Blowing-pressure			Mpa	0.9-3.0
4	Voltage/Frequency			V/Hz	220V/380V/50Hz,60Hz
5	Rated power	Heater		KW	4(220V)
5	Rated power	Air Compressor.		KW	11(380V)
6	Max mould effective dimension(LxWxH)			mm	335x335x220
7	Mould Opening Stroke			mm	170
8	Max mould thickness			mm	250
9	Center Distance between two Cavities			mm	80-240
10	Volume of product			ml	10-2000
11	Max Stretch Length			mm	400
12	Clamping force			kN	50
13	Capacity			Pcs/h	400-900
14	Machine dimension(lXWXH)		Main machine	mm	1600x600x1500
14	Machine dimension(lXWXH)		Heater	mm	1750X600X1450
15	Machine weight		Main machine	kg	500
15	Machine weight		Heater	kg	200
16	Air Compressor		Dimension(LxWxH)	mm	1700X670X1220
16	Air Compressor		weight	kg	410
17	Air Filter		Dimension(LxWxH)	mm	250X250X600
17	Air Filter		weight	kg	15x2pcs
18	Freezed Dryer		Dimension(LxWxH)	mm	890x550x1000
18	Freezed Dryer		weight	kg	175
19	Temperature range			°C	15-110(PET) 15-180(PMMA,PS,PP)
