JY80Z Diameter 20mm to 80mm Long Brass Bar Straightening Machine

Name: JY80Z Diameter 20mm to 80mm Long Brass Bar Straightening Machine
Brand: haige
SKU: 104534083

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New, New

Type:

Other, straightening machine

Use:

Other, straightening for bar

Yantai Haige Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao seaport

Delivery Detail:

Delivery time depends on order quantity.

Type Other, straightening machine

Use Other, straightening for bar

Place of Origin Shandong, China

Brand Name haige

Model Number JY80Z

Voltage 308V/420V

Power(W) 100KW

Dimension(L*W*H) 7.1mX2.8mX3.0m(main machine)

Weight 16.3T

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

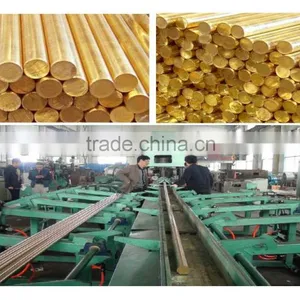

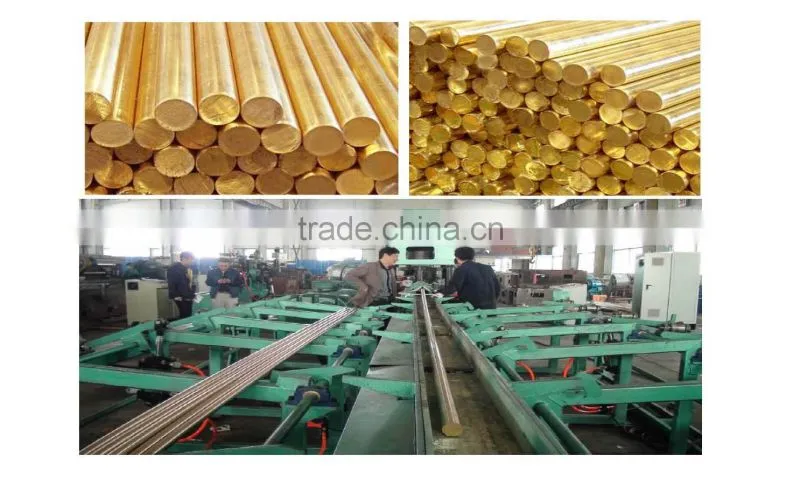

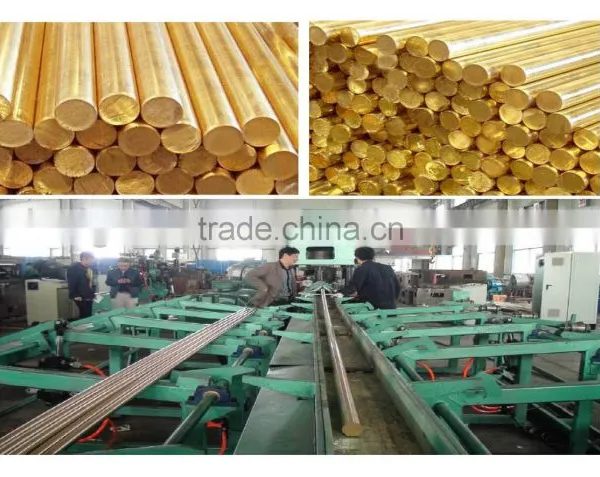

Long Brass Bar Straightening Machine

Diameter Range: from 20mm to 80mm

Bar Length Limit: ≥2000mm

Contact Person

Lily

Our Service

1. Gurantee Period: 1 year

(except for wearing parts)

2. Our engineer available to service overseas

3. Free training in our factory

Main Technical Parameters

Specification		JY80Z
Raw Material	Diameter Range(mm) (excluding drawingmaterial)	Tensile Strength σ_b≤450(M pa)		Φ20≤d≤Φ80(L ≥2000)
		Tensile Strength σ_b≤1000(M pa)		Φ20≤d≤Φ75(L ≥2000)
	Surface Hardness	≤HB380(≤HRC42)
	Straightness(mm/m)	Bright Steel ≤3
	Diameter Tolerance	Bright Steel≤IT10
	Circular Degree	d≤50	≤50% of diameter tolerance
		50<d≤80	≤65% of diameter tolerance
		d>80	≤70% of diameter tolerance
	Surface Roughness(Ra)	Bright Steel≤3.2mm~6.3mm
Finished Products	Straightness(mm/m)	Bright Steel≤0.40
	Diameter Tolerance	Bright Steel≤IT8
	Surface Roughness(Ra)	Bright Steel≤0.8μm
Roller Quantity (Pcs)		2
Roller Diameter (mm)		Φ335
Straightening Feeding Speed (m/min) (infinitely adjustable-speed)		2~14
Main Machine Motor Power (KW)		45 X 2
Lifting Motor Power (KW)		3
Main Machine Outline Dimensions (LengthWidthHeight)		7.1mX2.8mX3.0m
Weight		16.3T
Total Capacity (KW)		100
Compressed Air Source(provided by user)		0.5~0.8MPa,3m³/min,two-stage oil-waterseparator
