Home > Packaging & Printing > Printing Machinery > Digital Printing Machine > Factory Price Flatbed and Roll uv Printer With Km512 Printhead Printer

Factory Price Flatbed and Roll uv Printer With Km512 Printhead Printer

Name: Factory Price Flatbed and Roll uv Printer With Km512 Printhead Printer
Brand: DEJU
SKU: 104556231

Factory Price Flatbed and Roll uv Printer With Km512 Printhead Printer thumbnail-1

Factory Price Flatbed and Roll uv Printer With Km512 Printhead Printer photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Plate Type:

Flatbed Printer

Place of Origin:

Shanghai, China

Contact Supplier Request Quote Chat Now

Deju Digital Technology (Guangzhou) Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

huangpu

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Plate Type Flatbed Printer

Place of Origin Shanghai, China

Brand Name DEJU

Model Number FR2512

Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer

Automatic Grade Automatic

Voltage 220V

Gross Power 6.5KW

Dimensions(L*W*H) 4830*2470*1580mm

Weight 1550KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

FR2512

Feature:

1.Mechanic Superiority:dual lead screw & dual guider broadside scanning mechanical structure,industry leading machineryprecision;Table loading capacity of 45KG/sqm,automatic take-off enables the printing on different sizes of media.

2.The printing platform's vacuum absorption function can also convert suction into reverse air flow, thus creating a layer of air cushion between media and the working platform. This function makes it rather convenient to take down a heavy printed material in large format

3.Unique media alignment bar allowing a fast and easy media loading.

4.All-steel body, extruded aluminum table, double straight-line Guides.

5.Key parts from the most famous brands, such as IGUS towline cable from Germany, MEGADYNE synchronous belt from Italy, DELTA serve motor from Taiwan……

6.UPS inside keep negtive pressure more than 4 days when the power is turn off.

7.Automatic altimeter system uses infrared-sensitive probe,auto-detection to adjust the height,and precise positioning.This system replaces of traditional manual lift system and it's easy to operate.

8.Roll-to-Roll upgrade kit supports flexible media up to 2530mm wide, with a roll diameter 250mm, and up to 360kg in weight.

9.MAKECOLOR UVFR2512 UV Hybrid printer usese environmentally protective UV curing ink (a new trend in the future) which does not contain VOC (volatile organic compound).

10.The usage of UV curing ink (which can be directly typed on various materials) enables this printer to completely replace spray equipment for outdoor advertisement and indoor photography. Besides, this printer has a wide range of applications in the field of indoor and family decoration (such as wallpaper, public display board, etc.)

Technical Specifications

Model	DEJU FR2512
Top Resolution	UP TO 1440dpi
Print head controls	Print head temperature and voltage
Color management	ICC based color,adjustment curves,density adjustment.
Printhead	Gray scale piezoelectric print heads
UV energy source	Dual shuttered UV lamps, independent user-selectable control of shutter aperture and two lamp power levels
Color	4color/double 4 color/6 color/white or varnish
Roll-feed media	Max.width:2530mm,diameter:250mm,weight:360kg
Rigid media	Standard vacuum table support rigid materials up to 2770X1330mM,150kg/sqm
Ink	Eco-friendly,highly durable UV ink with bright color
Media	glass/ceramic/aluminum/wood/doors/cardboard/Paper / Advertising banner and so on
Control System	Windows 2000 workstation / Windows XP/Vista/Window7 32bit
Printing Speed	UP TO 56m2/h(8 heads double 4 color)
RIP Software	Photoprint 10 / Seeget
Operation environment	Power Supply:AC,50HZ/60HZ 220v(10%) Distortion:<0.5% Temperature:18°C~26°C Humidity:40%~70% 6.5KW
Dimension(LxWxH)	4825mm(L)X2150mm(W)X1500mm(H)
Weight	1350Kg

Application:

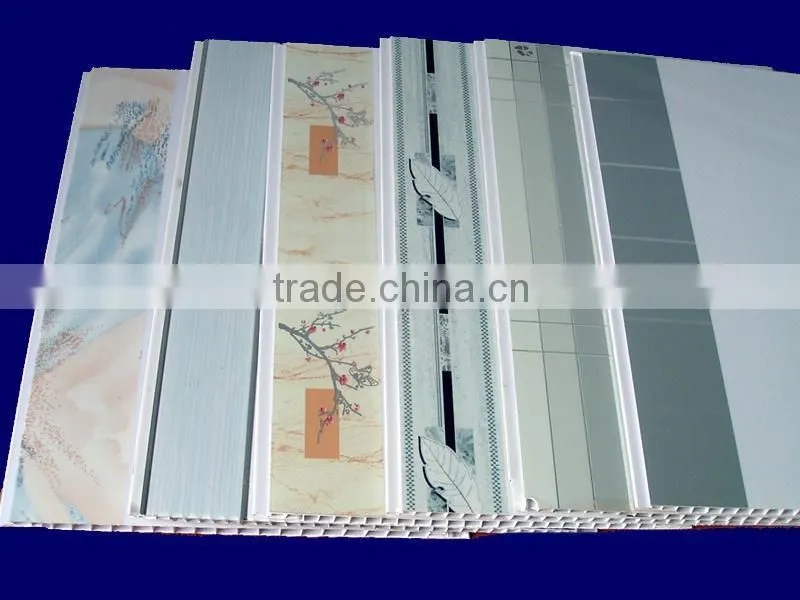

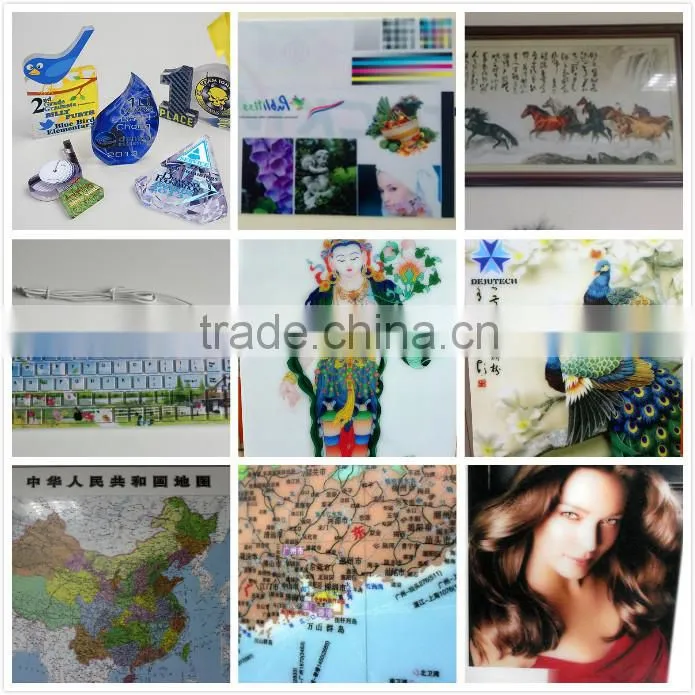

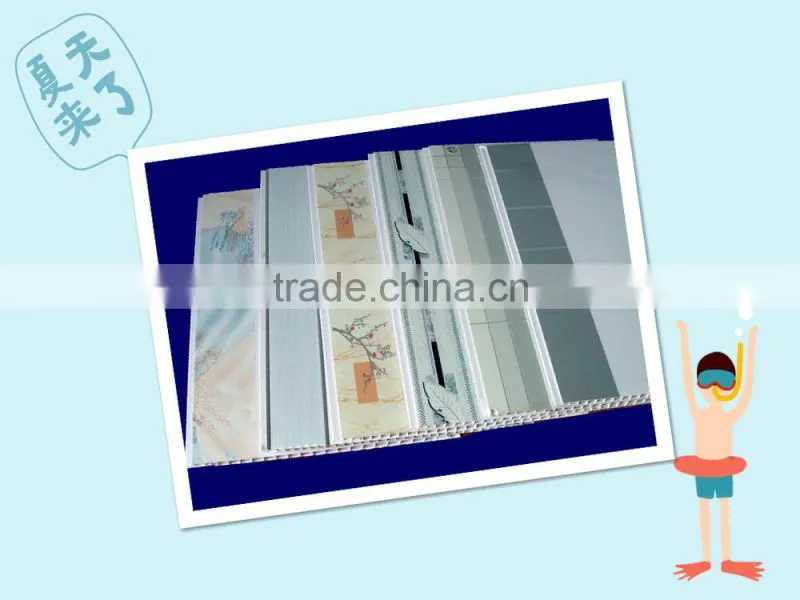

Applying to a variety of materials,like rigid media such as glass,ceramic tile, aluminum sheet, wooden board, billboard, acrylic sheet, KT board, plexiglass, foamboard and corrugated paper,flexible materials including wall paper,glistening film, canvas, carpet, leather, paper, PVC ect..

PVC

acrylic

wood
