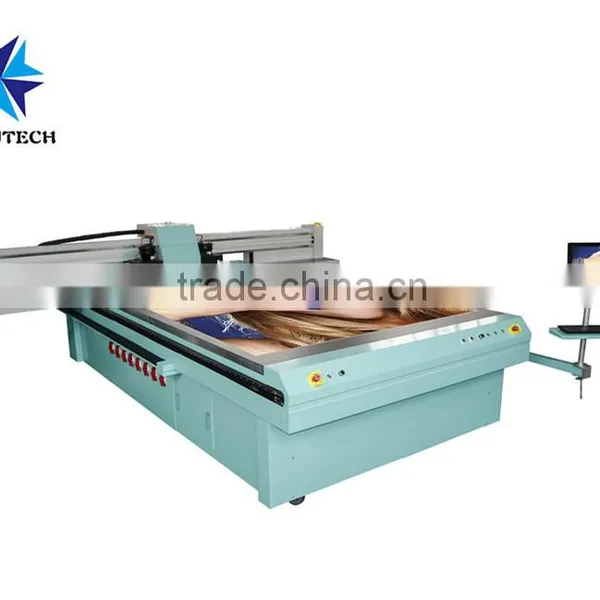

large format uv led printer ,uv printing machine konica head
Main Features
1.Create ultra-high quality, piezo inkjet method
Inkjet on a high-definition control for maximum resolution of 1440dpi to show pictures of the most meticulous detail.
Even six pounds of small text, smooth and sharp edges can print out.
2.UV lamps used internationally renowned brands
UV lamps used internationally renowned manufacturers, higher cure efficiency, longer duration of use, more stable quality.
3.White ink circulation
White ink automatic cycle anti-settling system, the line of white ink can keep intermittent circulation time period set by the user
to effectively prevent the white ink nozzle clogging caused by precipitation.
4.One-touch pneumatic positioning thimble
Unique media positioning thimble, using one-touch pneumatic control, the loading plate easier,
more accurate positioning, repetitive printing unbiased.
5.Car crash protection systems
High-precision smart car collision avoidance system can effectively avoid the car crash material damage front
6.Three kinds of car lifting regulation
Can be directly controlled by the knob height trolley, operating software, and the control panel buttons,
in many ways,the use of more humane
7.Direction control system platform
Vacuum absorption features can become a platform for the reverse suction hair, can work between the media
and the formation of a layer of cushion platform, so the finished product is very heavy large format printing can
be very easily removed.
8.Material automatically eliminate electrostatic device
Installed in a small car, in the printing process can effectively eliminate the negative charge attached to the surface
of the material, to avoid ink droplets fly ink, print more accurate.
9.Suction system platform can be divided into regions
F2030 platform points eight regional suction, each zone can be adjusted and shut down air volume for different format material.
10.A barrel of ink ink detection alarm system
Automatic high-capacity ink supply system ensures long uninterrupted print, will automatically alert the remaining ink level
is low, the operator can always add ink without stopping halfway, never affect the normal production process.
11.Negative back-up power systems
When the machine power off, you can still maintain a negative pressure system to work properly,
so that the ink stays in the print out of state without waste, but also to quickly enter the working state calls.
12.Ink thermostat system
Ink supply system enables automatic heating system to maintain a constant temperature of the ink,
the ink in the best condition for optimum print quality.
Technical Specifications
| Model | DEJU UV F2030 |
| Color | C M Y K Lc Lm White Varnish (4C/5C/6C/7C/8C optional) |
| Top Resolution | UP TO 1440dpi |
| Printhead | KM512/KM1024/PQ512/XAAR P15+ |
| Printing Speed | UP TO 56m2/h(8 PCS KM1024 heads double 4 color) |
| Media | Wood panel, Aluminum panel, door plank, paperboard, PVC expansion sheet, ceiling panel, glass, ceramics, acrylic, PVC, etc. |
| Size of Material |
Maximum Printing Area: Panel:2.0m(width) x3.0m(depth) Maximun Meterial Size: Panel:2.02m(width) x3.02m(depth) |
| Thickness of Material | Panel:≤ 120 mm |
| Weight of Material | Panel:≤ 45 kg/m2 |
| Image format | Tiff,Jpeg,Postscript3,EPS,PDF,AI and so on |
| Ink | UV Curing ink/LED Curing ink |
| Ink Capacity | 2.5L drums, automatic ink control, non-stop and ink |
| Power Supply | AC,50HZ/60HZ , 220v(±10%)>15A |
| Printing software | Photoprint 10 / Seeget |
| Optional | 1. Air Compressor 2.Computer 3.UV LED lamp |
| Dimensions (W x D x H) | 3.82 x 3.95 x 1.5 m |
| Net & Gross | 1800KG & 2150KG |
| Package dimensions | 4.05 x 2.2 x 1.35 & 4.07 x 0.87 x 1.0(m) |
| Minimum Work Area | 5.8 x 7.0 x 2.60 m |
| Operation environment |
Temperature:15-30℃(59-86℉) Humidity:40-80%RH(non-condensing) Operating noise:≤80dB |
| Safety Certification | CE Certification |

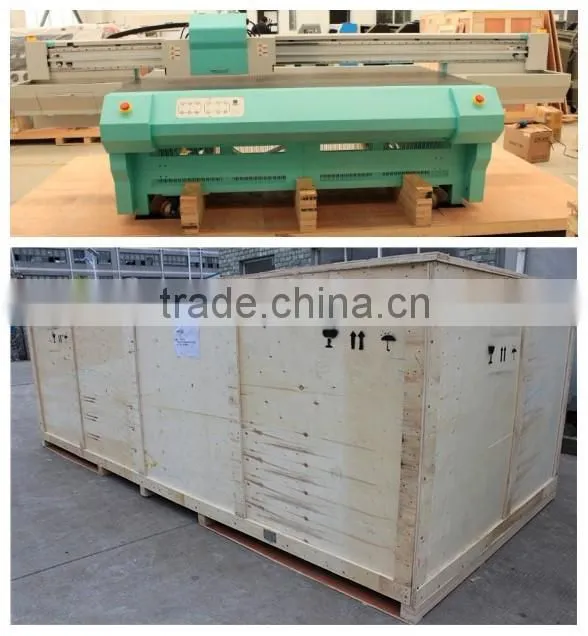

Packing and shipping
Packing:Wooden package .
Deliver time :within 15 working days
Shipping:helped by our long - term cooperation relationship forwarder ,goods will be sent by ship or by air .
Our service
1.We provide whole life warranty and online technical support for our printer .
2.When some technical problems,please send detail description,photos or vedio,then our technician will give the resolution accordingly.
3.There are complete English user manuals and inistall video to guide you easily install , operate and maintain the printer. It’s clear and easy to understand.
Application
Can be applied to all kinds of materials, the rigid materials include glass,ceramics,aluminum sheets,wood,billboards,acrylic,KT boards,plexiglass,foam boards,corrugating medium paper and so on.the flexible materials includes wallpapers,shiny film,canvas,carpets,leather,paper,pvc,etc
