Home > Lights & Lighting > LED Outdoor Lighting > LED Street Light > UL,MODULAR 210W LED STREET LIGHT BY OSRAM,hangzhou Factory

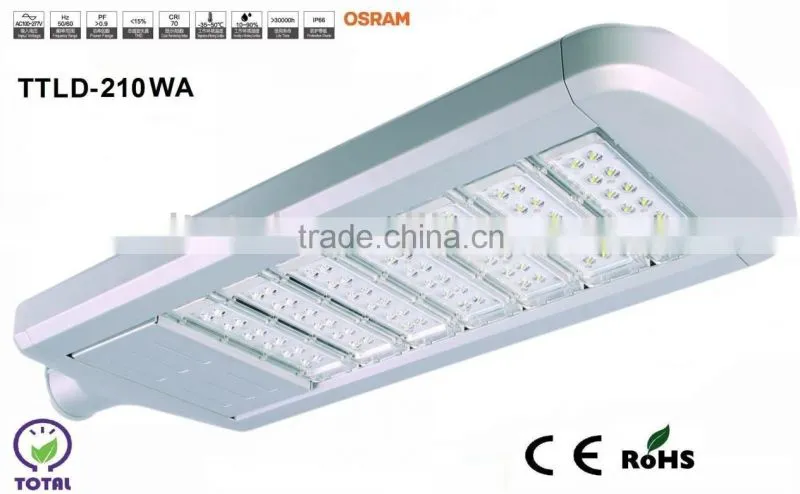

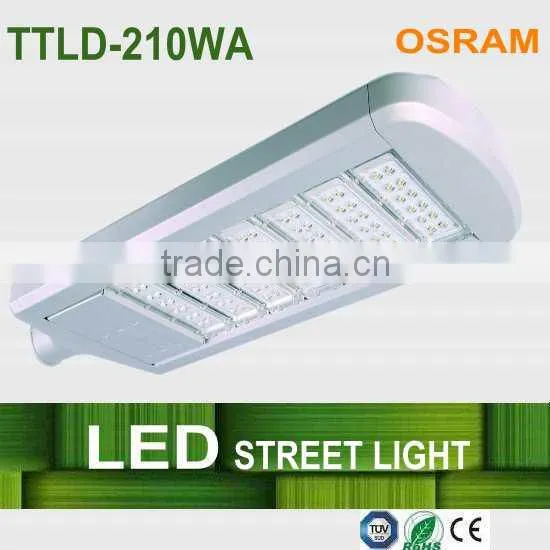

UL,MODULAR 210W LED STREET LIGHT BY OSRAM,hangzhou Factory

Name: UL,MODULAR 210W LED STREET LIGHT BY OSRAM,hangzhou Factory
Brand: TOTAL
SKU: 104578569

UL,MODULAR 210W LED STREET LIGHT BY OSRAM,hangzhou Factory thumbnail-1

UL,MODULAR 210W LED STREET LIGHT BY OSRAM,hangzhou Factory photo-1

US$ 1 - 2 MOQ: 10 Pieces

Key Specifications

Get Latest Price

LED Light Source:

orsam

Input Voltage(V):

90-260Vac

Lamp Power(W):

196

Contact Supplier Request Quote Chat Now

Zhejiang Total Economic And Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source orsam

Input Voltage(V) 90-260Vac

Lamp Power(W) 196

Lamp Luminous Flux(lm) 18946/17430/14292 lm

Lamp Luminous Efficiency(lm/w) 94

Color Temperature(CCT) Pure White

Working Temperature(℃) -35, 50

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP65

Certification CE, EMC, FCC, LVD

Warranty(Year) 3

Place of Origin Zhejiang, China

Brand Name TOTAL

Model Number TTLD-210WA

Specifications

TTLD series street lights, simple&stylish exterior design, modular light combination can achieve full power segment 60 to 300W.

TOTAL HIGH EFFICIENCY LED STREET LIGHT 30-300W TTLD-210WA AC:100-240V, 50/60Hz | DC:24V 60W,3000-6500K, IP65,IK08

Product Description

Product Code	TTLD-210WA
LED Quantity	84pcs
Rated Power	196W
Color Temperature	6500/4000/3000 K
Efficiency	94/86/71 lm/W
Luminous Flux	18946/17430/14292 lm
Installation Pipe Diameter	Φ60mm
Installation Height	11-13m
Net Weight	11.5Kg
Gross weigh	12.5Kg
Packing Size	945×390×115mm

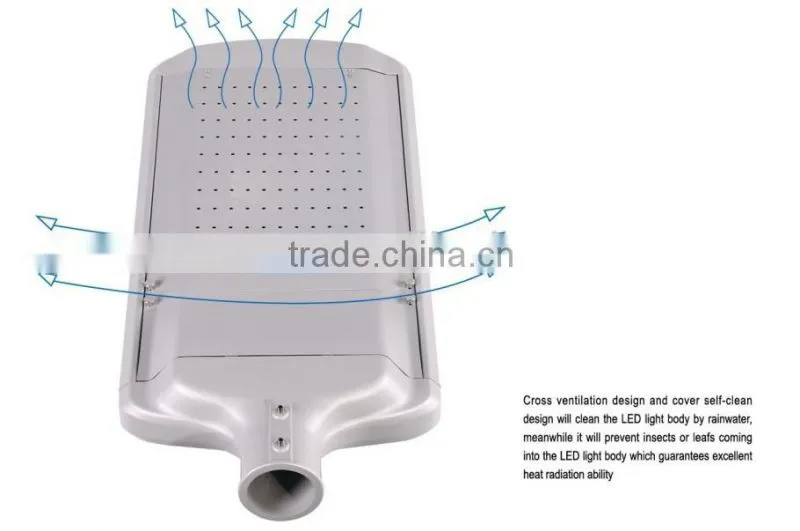

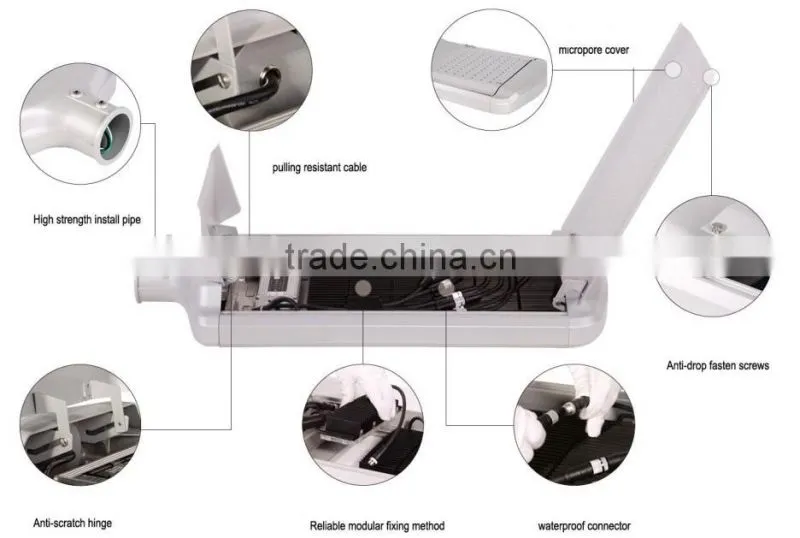

Lamp Structure

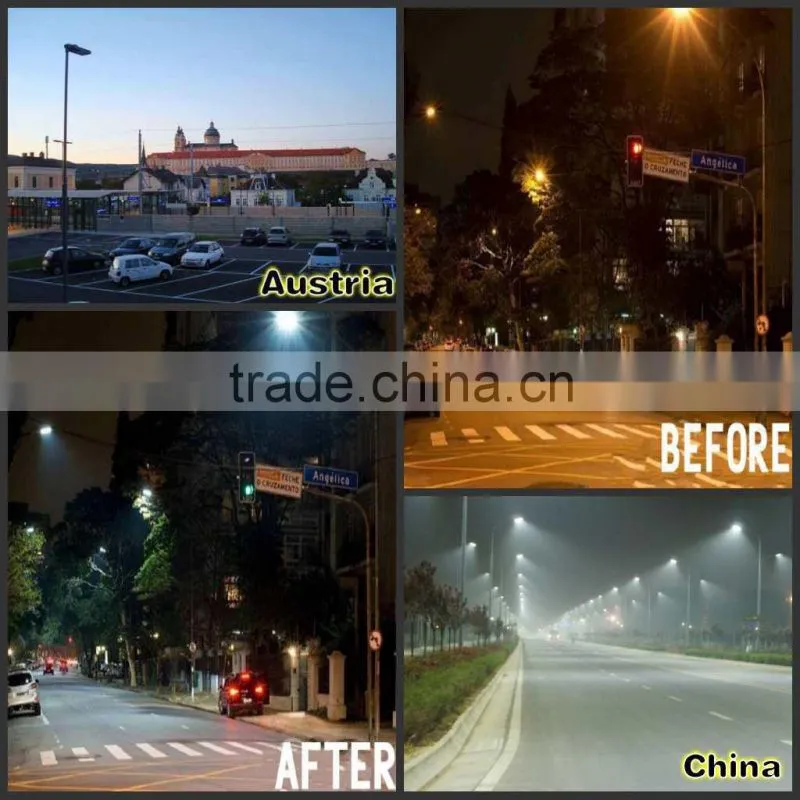

Project show

Our Services
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union for small amount .
2. Lead time : normally in 5~10 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port: Ningbo,Shanghai port,China
5. Discounts : We offer discount for big quantity.

Delivery details:
We ship goods by UPS/DHL/FEDEX/TNT express which takes 3~ 5 days to arrive, or by air cargo which takes about one week to arrive , or by sea which takes about one month to arrive , depending on your actual requirements.

Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-tranied and passional sales & after-sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects.
