Home > Instruments & Meters > Test Instrument > Test Machine > Best Model Diesel Injection Pump Test Bench/PUMP Test Bench

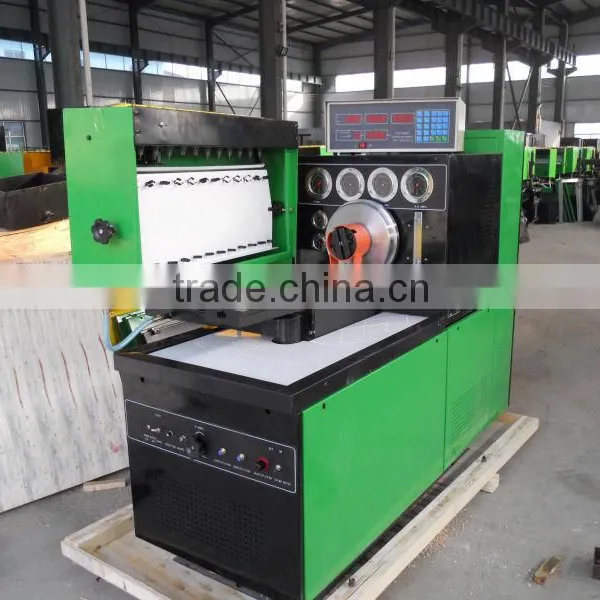

Best Model Diesel Injection Pump Test Bench/PUMP Test Bench
US$ 2,600 - 4,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
NANTAI
Model Number:
12PSB
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
NT3000 DIESEL FUEL INJECTION PUMP TEST BENCH BLUE COLORUS$ 1,000 - 5,000MOQ: 1 Set -
NT3000 DIESEL FUEL INJECTION PUMP TEST BENCH WHITE COLORUS$ 3,000 - 6,000MOQ: 1 Set
-
12PSB Fuel Pump Test Bench/diesel Injection Test Bench/US$ 100 - 1,000MOQ: 1 Set
-
NT3000 Fuel Injection Pump and Fuel Injector Test BenchUS$ 1,000 - 5,000MOQ: 1 Set
-
NT3000 Fuel Injection Pump and Injector Test BenchUS$ 1,000 - 5,500MOQ: 1 Set
Place of Origin
China
Brand Name
NANTAI
Model Number
12PSB
Power
Electronic
Usage
Auto Testing Machine
| Introduction | 12PSB series diesel fuel injection test bench is design for customer's require. This series test bench adopt high quality frequency conversing device, and it has characteristic with hi-reliability, ultra-low-noise, energy save, high output torque, perfect auto-protecting function and operate easy. It is the kind of product with high quality and good price in our business. | |
| Main function | ||
| 1.Measurement of each cylinder delivery at any speed. | ||
| 2. Test point and interval angle of oil supply of injection pump. | ||
| 3. Checking and adjust the mechanical governor. | ||
| 4. Checking and adjusting the distributor pump. | ||
| 5. .Experiment and adjusting of behavior of supercharging and compensatory device. | ||
| 6. Measurement of oil return of distributing pump | ||
| 7. Testing of the electromagnetic valve of distributor pump.(12V/24V) | ||
| 8. Measurement of the internal pressure of distributor pump. | ||
| 9. Checking of the advance angle of advance device.(on request) | ||
| 10. Checking the sealing of injection pump body | ||
| 11. Install tube of auto-sucking oil supply can check on oil supply pump(including VE pump.) | ||
| Technical characteristic | ||
| Type | Technical characteristic | Output power(KW) |
| 12PSB-I | 1.test cylinders:12 | 5.5 |
| 2.RPM 0-4000. | 7.5 | |
| 3.Three speed preset. | 11 | |
| 4.With 12v/24v DC power | 15 | |
| 5.digital display of oil cont times | 18.5 | |
| 12PSB220V-I | SAME 12PSB-I | 4 |
| 12PSB-II | 1.test cylinders:12 | 5.5 |
| 2.RPM 0-4000 | 7.5 | |
| 3.Three speed preset | 11 | |
| 4.With 12v/24v DC power | 15 | |
| 5.digital display of oil count times | 18.5 | |
| 6.digital display of temperature | ||
| 7.Measurement of oil return of distributing pumps | ||
| 8.the internal pressure of VE pump. | ||
| 12PSB220V-II | SAME 12PSB-II | 4 |
| 12PSB-III | 1.test cylinders:12 | 5.5 |
| 2.RPM 0-4000 | 7.5 | |
| 3.Ten speed preset | 11 | |
| 4.With 12v/24v DC power | 15 | |
| 5.digital display of oil count times | 18.5 | |
| 6.Digital display of temperature | ||
| 7.with air supply | ||
| 8.Measurement of oil return of distributing pumps | ||
| 9.Measure oil flux of VE pumps | ||
| 10.Measure the internal pressure of VE pump. | ||
| 12PSB220V-III | SAME 12PSB-III | 4 |
| 12PSB-IV | 1.test cylinders:12 | 5.5 |
| 2.RPM 0-4000 | 7.5 | |
| 3.Ten speed preset | 11 | |
| 4.With 12v/24v DC power | 15 | |
| 5.digital display of oil count times | 18.5 | |
| 6.Digital display of temperature | ||
| 7.with air supply | ||
| 8.Measure advance angle | ||
| 9. Measure oil return of VE pumps | ||
| 10. Measure oil flux of VE pumps | ||
| 11.Measure the internal pressure of VE pump. | ||
| 12PSB220V-IV | SAME 12PSB-IV | 4 |
