Help CenterRED4 EDC TESTER
US$ 1,100 - 1,100
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
NANTAI
Model Number:
RED4
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
China
Brand Name
NANTAI
Model Number
RED4
Power
Electronic
Usage
Auto Testing Machine

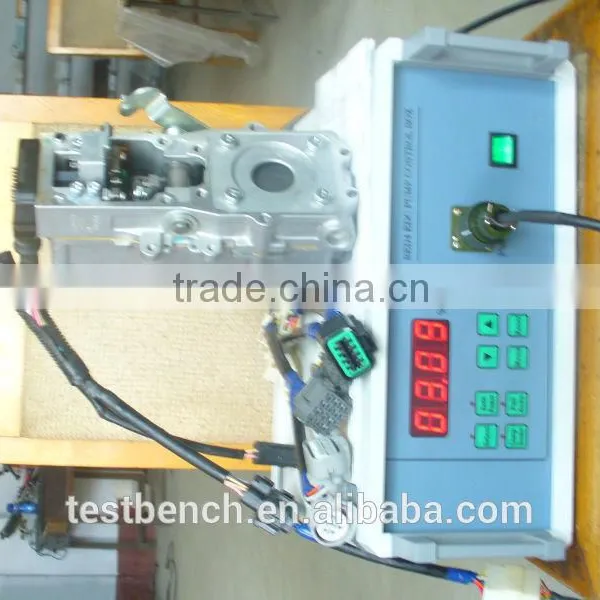

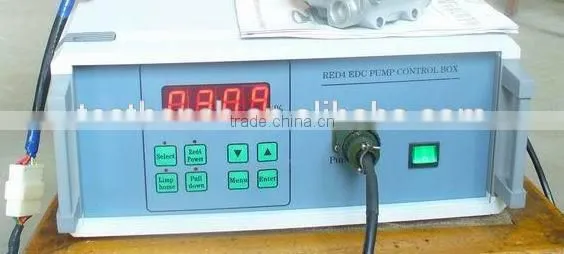

EDC-Zexel RED4 in line pump tester
| APPENDIX: 104700-9101 ZEXEL Internal combustion engines injection testing Device | |||||||
| 104700-9101 ZEXEL Internal combustion engines injection testing Data | |||||||
| ZEXEL ASS'Y NO. | 104700-9101 | ||||||
| BOSCH ASS'Y NO | 9 460 614 197 | ||||||
| BOSCH model No. | |||||||
| Engine Model | 4D56TCI | ||||||
| Manufacture's name | HYUNDAI | ||||||
| Date | 2003/10/28 | ||||||
| 1. Adjusting Situations: | |||||||
| TYPE | NAME | UNIT | SET VALUE | MIN. | MAX. | REAL VALUE | External resistance |
| testing oil | ISO4113 OR SAEJ967d | ||||||
| 1404 test oil | |||||||
| P | Oil Temp. | Degree℃ | 45 | 45 | 50 | ||
| Nozzles | 105780-0060 | ||||||
| BOSCH model | NP-DNOSD1510 | ||||||
| Nozzle support | 105780-2150 | ||||||
| P | Open Valve Pressure | Mpa | 13 | 13 | 13.3 | ||
| Open Valve Pressure | Kgf/CM2 | 133 | 133 | 136 | |||
| Injection pipe | 157805-7320 | ||||||
| P | Injection pipe | mm | 2-6-450 | ||||
| Inside diameter-outside diameter-length (mm) | |||||||
| focus compilation | 157641-4720 | ||||||
| Pipes compilation | 157641-4020 | ||||||
| P | Input oil pressure | Kpa | 20 | 20 | 20 | ||
| P | Input oil pressure | Kgf/CM2 | 0.2 | 0.2 | 0.2 | ||
| Rotational direction | R | ||||||
| Right | |||||||
