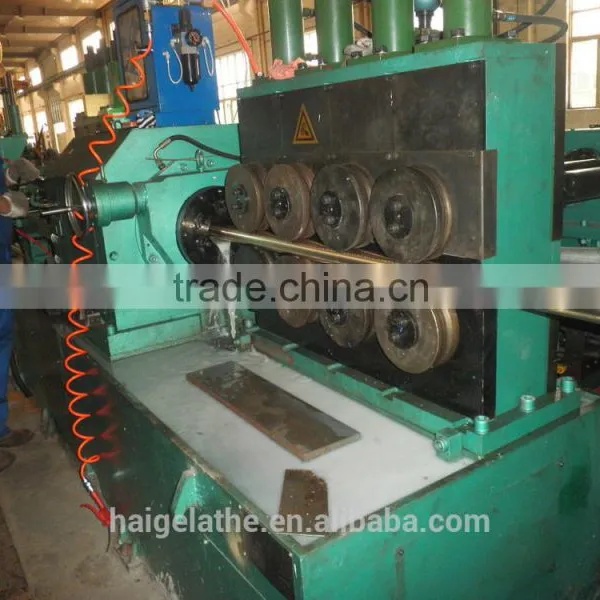

Series WXC Peeling machine is a high-efficiency lathe which is specialized in processing the surface of steel round bar and steel wire rod, for example, straightening, peeling, cutting and polishing, etc.
Not only quickly remove surface hardened layer, cracks and other defects, but also can get high precision.
During processing, the bar doesn’t rotate itself. The cutting tools rotates at high speed to peel the surface of the bar. At the same time, after peeled , the bar keeps walking forward.
Shapes of Workpiece are requested long steel round bar and steel wire rod.
Compared with ordinary lathe / universal lathe
1. When processing over-length bar, peeling machine has incomparable advantages.
Univeral lathe is good at processing short bar. But there is great restriction for processing long bar.
In theory, peeling machine can process the bar of infinite length.
2. Peeling machine is not only processing round bar, but also can process steel wire / coil. Including from wire rod to wire rod and from wire rod to bar. That's the ordinary lathe can’t do it.
3. Processing speed can reach up to 1~12m/min, the working efficiency of peeling machine is dozens of times of the ordinary lathe.
4. High precision, after peeled, tolerance of diameter can reach≤h11~h9, surface roughness Ra≤3.2μm. After straightened, Ra≤1μm.
MODEL |
WXC130S |
|
Raw material |
Diameter Range(mm) |
Φ45~Φ130 |
Raw Material Length(mm) |
≥2800 |
|
Tensile Strength(Mpa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature(mm/m) |
≤1.50 |
|
Diameter Tolerance |
According to GB 702-2004 second group |
|
Roundness(mm) |
≤50% of the diameter tolerance |
|
Surface Roughness(Ra) |
≤25-50μm |
|
Finished products |
Diameter Range |
Φ44~Φ129 |
Unilateral Turning Depth (mm) |
1~2.5 |
|
Diameter Tolerance |
≤IT9 (standard tolerance grade) |
|
Surface Roughness(Ra) |
≤12.5μm |
|
Curvature(mm/m) |
≤1.5 |
|
Roundness(mm) |
≤0.03 |
|
Feeding Cutting Speed(m/min) |
0.8-1.5 (for continuous chips and high strength and hardness should reduce the cutting speed) |
|
Cutter Head Rotational Speed(rpm) |
240-670 (Six poles) 360-1000 (Four poles) |
|
Main Machine Motor Power(KW) |
110 |
|
Auxiliary Machine Motor Power(KW) |
11(feeding part) |
|
|
Main Machine Outline Dimensions (Length*Width*Height) m |
5.3 X 3.5 X 3 |
|
|
Full Set Machine Outline Dimensions (Including auxiliary) (Length*Width*Height) m |
18M X 3.5M X 3M |
|
Main Machine Weight |
20.5 (29) |
|
Total Installed Capacity(KW) |
130 |
|
|
Compressed Air Source (users prepare by themselves) |
0.5~0.8MPa,1.8m3/min,more than 0.8 m3 gasholder, two-stage oil-water separator and compressed air freezing drier |
|
