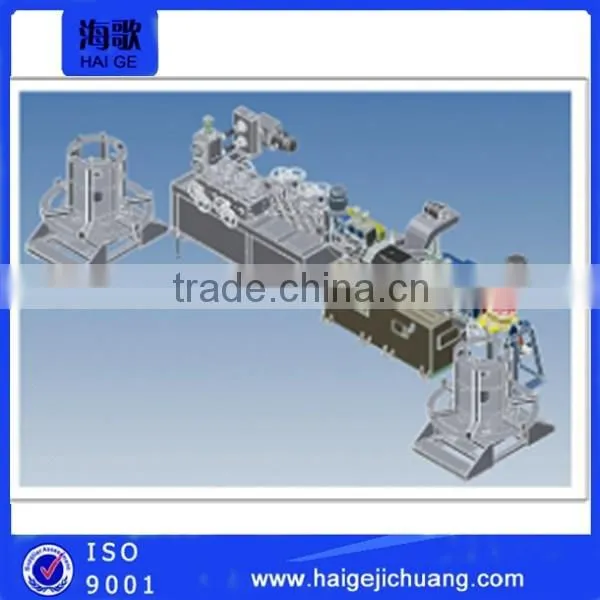

Wire peeling machine type KP25:
From wire rod to wire:
1. composition parts
| Loader | 1set |
| Uncoiling machine | 1set |
| Pre-straightener | 1set |
| Peeling machine | 1set |
| polishing machine | 1set |
| coiling machine | 1set |
2. Process Description
Loader→Uncoil machine→Centerless lathe→Cutting machine→Charging basket
Main Technical Parameters:
Specification |
KP25 |
|
Requirements before Peeling |
Diameter range(mm) |
Φ8~Φ25 (without dead bending ) |
Yield strength σb(Mpa) |
≤900 |
|
Surface hardness |
≤HB320 |
|
Requirement for curvature(mm/m) |
peeling≤1. 5 but no dead blend |
|
Diameter tolerance |
d-2-GB/T702-2004 |
|
Roundness |
≤50% of diameter tolerance |
|
Surface roughness(Ra) |
≤25mm |
|
After Peeling |
Dia peeling depth(mm) |
0.5~1.5 |
Diameter range(mm) |
Φ7.5~Φ23.5 |
|
Diameter tolerance |
≤IT10 |
|
Surface roughness(Ra) |
≤6.3μm |
|
Roundness (mm) |
≤0.03 |
|
Speed(stepless speed) |
1.0~8.0 m/min |
|
Motor of uncoiler machine |
15kw |
|
Feeding motor(uncoiler machine) |
2.2 kw |
|
Main motor (centerless lathe) |
45 kw |
|
Feeding motor (centerless lathe) |
4 kw x 2 |
|
Company introduction:
Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 1999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles.
Successful orders:
Our working machine video:
1.7-rolls straightening machine:

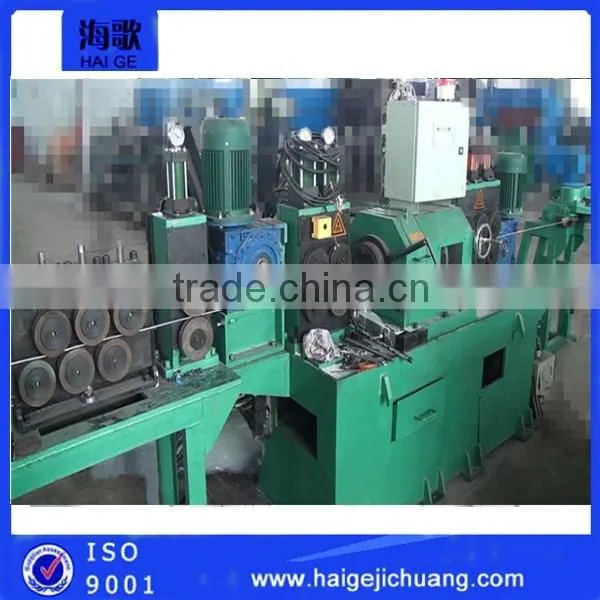

2. wire rod peeling unit:
3. bar peeling +straightening working line:
4. combined drawing machine:
5.belt sander:
6. bar peeling machine:
7.2-rolls straightening machine:
Certificate:
