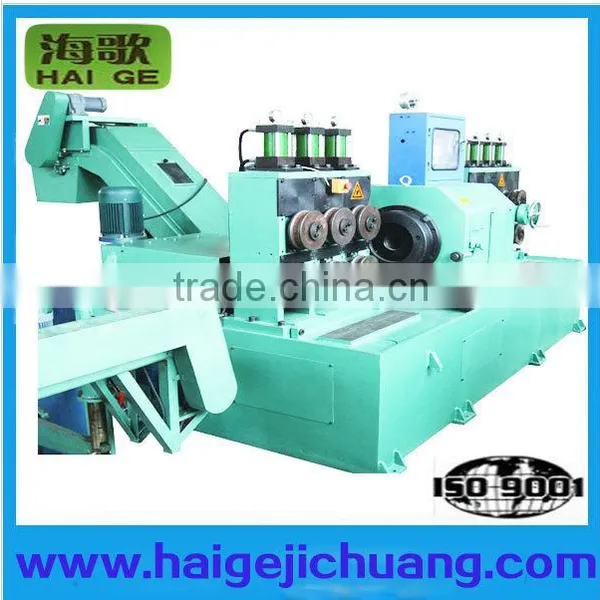

WXC40C cheap copper bar peeling machine for sale
WXC40C centerless lathe: semi-automatic product which is developed by our company, adopting the advantages of the same kinds of product at home and integrates the production features of the domestic enterprises.
Characteristics: practical, cheap, steady process, fast speed, high efficiency, good surface quality. The entire line of the equipment is semi-automatically controlled. The walking speed can be up to 12m/min which is more appropriate for the small & medium enterprises.
Main Technical Parameters
Specification |
WXC40C |
|
|
Raw
Material |
Diameter Range (mm) |
Φ6~Φ42 |
Raw Material Length (mm) |
≥1400 |
|
Tensile Strength (M pa) |
≤1100 |
|
Surface Hardness |
≤HB320 |
|
Curvature (mm/m) |
≤1.5 |
|
Diameter Tolerance |
according to GB 702-88 second group |
|
Roundness(mm) |
≤50% of diameter tolerance |
|
Surface Roughness (Ra) |
≤25~50mm |
|
|
Finished Goods |
Diameter Range (mm) |
Φ5.5~Φ40 |
Unilateral Cutting Depth (mm) |
0.2~1.0 |
|
Diameter Tolerance |
≤IT9 (standard tolerance grade) |
|
Surface Roughness (Ra) |
≤6.3μm |
|
Roundness (mm) |
≤0.03 |
|
Feeding Cutting Speed (m/min) |
1.0~8.0(for continuous chips and high strength and hardness should reduce the speed) |
|
Cutter Head Rotational Speed(rpm) |
900-2500 |
|
Main Machine Motor Power (KW) |
45 (2 Poles) |
|
Auxiliary Machine Motor Power(KW) |
4 X 2(4 Poles) |
|
|
Main Machine Outline Dimensions (Length*Width*Height) m |
2.0mX2.2mX1.5m (for your reference) |
|
|
Full Set Machine Outline Dimensions (Including auxiliary machine) m |
12.0mX2.2mX1.5m (for your reference) |
|
Main Machine Weight |
3.3 (4.5) |
|
Total Capacity(KW) |
65KW |
|
Compressed Air Source(user prepare by themselves) |
0.5~0.8MPa,1.8m3/min,more than 0.8 m3 gasholder, two-stage oil-water separator and compressed air freezing drier |
|
l It is semi-automatic button controlled. The cutting tool adjustment is manually controlled.
l Self-aligning structure is designed for the feeding and discharging devices which adjusts automatically and conveniently when the diameters of the processing materials changes and ensures the concentricity with the spindle.
l The elastic clamping and rigid clamping structures are designed for the middle-rear guide clamping devices to satisfy different requirements for processing materials, accuracy and convenience degree of different users.
l Hydraulic clamping device adopts special hydraulic loop design with long pressure holding time. It saves power with good self-locking ability, accurate position, reliable clamping which is convenient to adjust and operate.
l It has long cutting edge, smooth processing and high-speed walking.
l The feed wheel has large scope of adaption needing no frequent change of wheel with high working efficiency.
Yantai Haige Machine Tools Co., Ltd (original Yantai Ruihai Machinery Co., Ltd) establishes in 19999 and is a professional company engaged in producing finishing equipment and processing equipment of bright material, such as centerless lathe (commonly known as peeling machine or flaying machine), straightening machine, abrasive belt grinder (buffing machine), screw whirling mill and their auxiliary machines. It is an innovative and high technology enterprise, which integrates research and development, production and sale of finishing equipment for professional slender axles.
The company is equipped with specialized technical research and development department, and its ability of research and development, configuration of software and hardware and scale of personnel rank first in the industry. From design concept, technological level, production scale, quality in use to after-sale service, the company attains domestic leading level. It owns professional factories for machining and assembling, and full set of advanced equipment of precision machining, so it can produce high-precision core components by itself. Further more, the company possesses abundant ability of research and development, and perfect after-sale service system.
Diameters of products manufactured by the machine vary from Φ5mm to Φ350mm. The company can contract for full-set planning, design and manufacture of metal bar, tubing, and finishing line of wire rod, and meet the needs of customers at different levels. We are able to help users achieve digitization and automation control and management. We can also meet the needs of larger enterprises at home and abroad, and enterprises which require the equipments have higher degree of automation, to fundamentally enhance users’ production efficiency and product quality.
