Specifications
Separating and Line Pressing1.features of easy, stable adjustment, convenient repair
2.ISO & CE
Features:

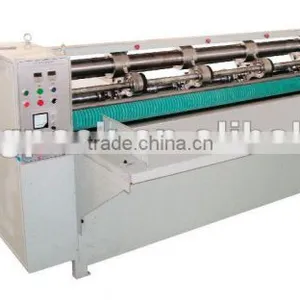

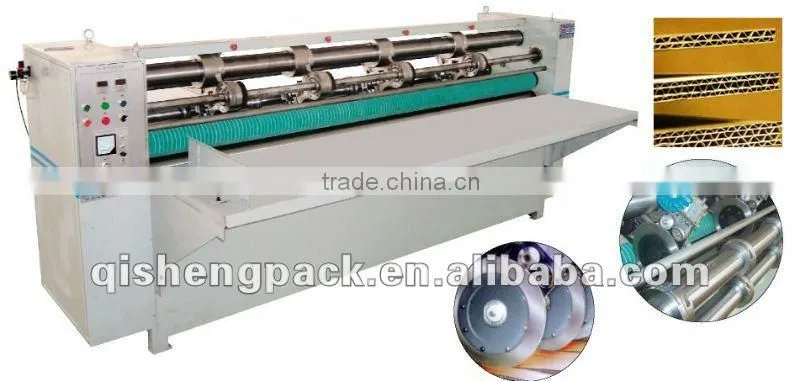

Semi-Automatic cardboard creasing and cutting machine adopts manual feeding for straight paperboards, and automatic-feeding for cross paperboards. It has the features of easy, stable adjustment, convenient repair and maintenance. This machine is used to cut the hard cardboard, grey paperboard bind in the book cover. It can cut the big size cardboard into required size, and into many slots at one time, so it has high working efficiency. This machine is necessary equipment in book binding.
Main technological parameters
Model(unit:mm) |
SBF2200 |
SBF2500 |
SBF3000 |
Width |
2200 |
2500 |
3000 |
Max feeding size |
2100 |
2400 |
2900 |
Min cutting size |
120 |
120 |
120 |
Max knife diameter |
φ260 |
φ260 |
φ260 |
Min knife diameter |
φ225 |
φ225 |
φ225 |
Power |
.3 |
4 |
4 |
Pressing line wheel |
6 |
6 |
6 |
Cutting knife |
4 |
4 |
4 |
Dimension |
3100*1250*1350 |
3400*1250*1350 |
3950*1250*1350 |
Notice: According to customer’s dimension, width can be made wide or narrow. The maximum width can be 3500mm
