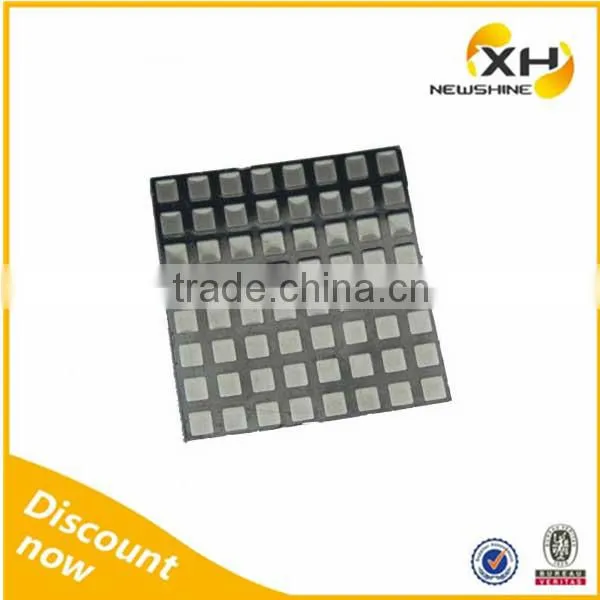

Free Sample Indoor Outdoor Using High Brightness Led Dot Matrix Module

Free Sample Indoor Outdoor Using High Brightness Led Dot Matrix Module thumbnail-1
Free Sample Indoor Outdoor Using High Brightness Led Dot Matrix Module photo-1
US$ 0.19 - 3.29 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
NEWSHINE XH
Model Number:
XH12088 15088 23088
Contact Supplier Request Quote Chat Now
Shenzhen Newshine Optics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name NEWSHINE XH
Model Number XH12088 15088 23088
Usage Indoor
Tube Chip Color Full Color
Display Function Graphics
Pixels 16mm
Screen Dimension 32MM*32MM,38MM*38MM,40MM*40MM,60MM*60MM

Free Sample Indoor Outdoor using blue High Brightness led dot matrix module



Application:

1)       Semi-outdoor/outdoor or indoor using, elevators/lift, led strip display, clock display and other different display areas of digital instruments, display screen modules, mechanical & medical equipments.

2)       Customized LED Panel Displays: Application for household appliance, special using LED

 Free Sample Indoor Outdoor using High Brightness led dot matrix module




Product Description



Specification/Parameter:

1)       Size Available: Φ3.0mm, Φ3.7mm, Φ5.0mm, Φ7.62mm, Φ10mm

Lens/Epoxy: Water Clear, Diffused color, Red color, Green color etc.

2)       Emitted Color Available

Single: Red, Orange, Yellow, Green, Blue, Yellowish-Green, White color LED

Bi-color: Red & Green, Red & Blue, Red & Orange, Green & Yellow etc.

RGB: Red & Green & Blue, Red/Yellow/Green etc. or other customized combination

3)       Characteristics:

  1. High luminous intensity output
  2. Low voltage and current operation
  3. Ultra-low power consumption, Solid-state lighting chips inside, SSL.
  4. IC compatible, easy mounting & installation on PCB/sockets
  5. Meet TUV ROHS certifications
  6. Providing free sample for testing for common models



Size & Dimension/Pins Layout, Circuit Diagram

 Free Sample Indoor Outdoor using High Brightness led dot matrix moduleFree Sample Indoor Outdoor using High Brightness led dot matrix module



Related 5*7 5*8 8*8 16*16 LED dot matrix display component modules

Free Sample Indoor Outdoor using High Brightness led dot matrix module

[--1.9mm 8*8 LED Dot Matrix XH-7088, 2.0CM*2.0CM]



 Free Sample Indoor Outdoor using High Brightness led dot matrix module

[--2.9mm/3.0mm 5*7 LED Dot Matrix XH-12057] Image as above.



Free Sample Indoor Outdoor using High Brightness led dot matrix module

[3.0mm 8*8 LED Dot Matrix XH-12088, 3.2CM*3.2CM]


Our Services



Advantages of Our LED diaplsy components/LED dot matrix/LED segment/alphanumeric digits display

1. 7*24 hours online Email service

2. Quick production schedule/arrangement

3. Professional LED display/panel/solutions provided

4. OEM/ODM services provided

5. Multi-ways for payment terms & Shipping solutions.



Company Information





Major technological process of NEWSHINE LED dot matrix/digit/alphanumeric displays

Free Sample Indoor Outdoor using High Brightness led dot matrix module

Free Sample Indoor Outdoor using High Brightness led dot matrix module







Packaging & Shipping





Shipping Solutions with NEWSHINE

Free Sample Indoor Outdoor using High Brightness led dot matrix module

Also, by AIR/SEA are all available for future cooperation; Drop-Shipping supportable.

Payment Terms:

PP, Western Union, T/T ,

ESCROW, Ali-Secure, L/C, OA are all negotiable for long-term cooperation!


FAQ



Common Questions:

1. What's the LED display components advantages, compared to LCD items?

: Brighter intensity luminous, multi-color LED choices & longer lifespan.

Also we could do special/customized LED panel display solutions base on prototype design/projects.

2. Are your LED dot matrix/digit & alphanumeric displays DIP or SMD encapsulation?

: All NEWSHINE led dot matrix, led digit displays, led customized displays are using DIP encapsulations.

3. How long can the display items last during high-temp. reflow soldering?

: 3 Seconds @260degrees.

Could not be stay longer than 3 seconds in high temperature conditions.

4. Could we use common China Post shipping, to test the samples?

: Yes, we can provide free sample plus free China Post shipping for common items, otherwise

this will last a little longer period to see the led dot matrix display/digital display items.

Should wait for the transportion patiently!

For more or any questions, contact us freely via EMAIL or other IM! Energy Saving Specialist—

SHENZHEN NEWSHINE OPTICS CO.,LTD

Free Sample provided, please click 'Send' to contact us freely!
