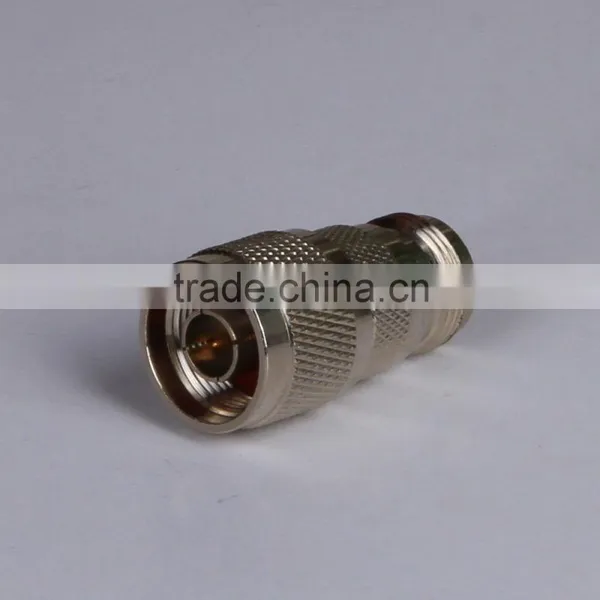

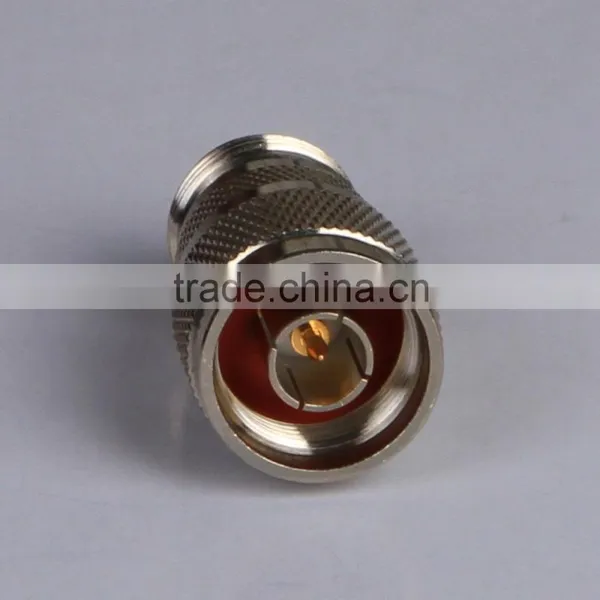

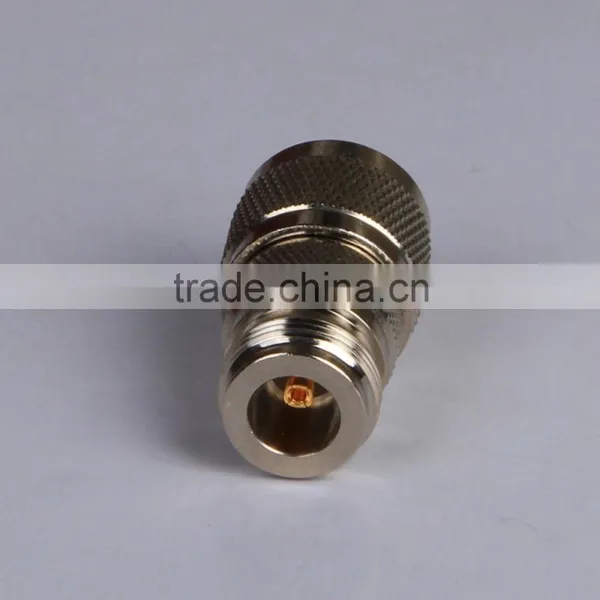

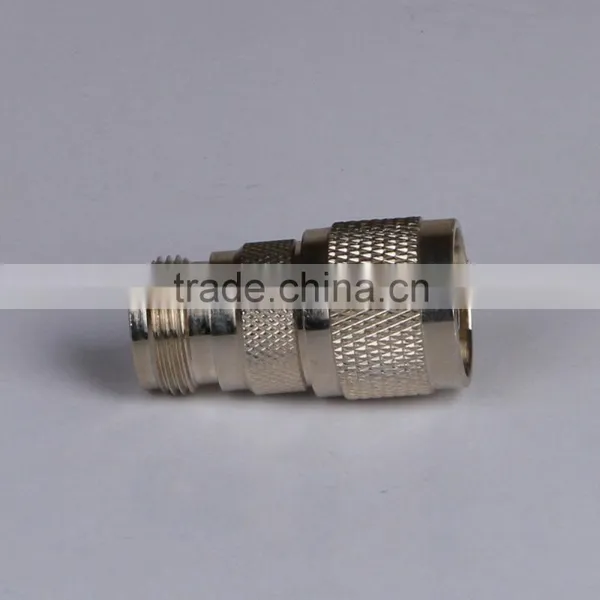

Help CenterMale to Female N Type RF Connector,adapter
Related Products
-
n Male Connector for 1/2 CableUS$ 0.5 - 1.3MOQ: 10 Pieces -
Male Gender and Microwave Application N Male Crimp Connector Rg58US$ 0.1 - 0.9MOQ: 10 Pieces
-
RoHS Certified Right Angle Double N Male ConnectorUS$ 0.5 - 1.5MOQ: 10 Pieces
-
N Male, Right Angle, Crimp Tpye for Cable RG213 rf ConnectorUS$ 0.50 - 0.50MOQ: 100 Pieces
-
Stainless Steel Adaptor for 6 Ghz Frequency of N Connector Types of Cable Joints With Coaxial Cable PriceUS$ 2.6 - 3.8MOQ: 3000 Pieces
Specifications
1.N adaptor female to female panel mount
2.Resonable price
3.Connector manufacturer
4.Thousands of different type connectors
Description
Type N connector is a kind of low to medium power connectors with screw coupling. Characteristic impedance has two types: 50Ω and 75Ω. The characteristic of connector is high reliability, great vibration performance, excellent mechanical and electrical performance etc. they are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable, this type will gain smaller VSWR, and the frequency can by up to 11GHz.
_____________________________________________________________________________
Technical Characteristics
Temperature Range |
-55~+155°C (PE Cable -40~+85°C) |
Impedance |
50Ω |
Vibration |
100m/S2 (10~500Hz), 10g |
Frequency Range |
DC-11GHz |
Insertion Loss |
<= 0.24dB/6GHz |
Withstanding Voltage |
2500V r.m.s at sea level |
Working Voltage |
1000Vr.m.s at sea level |
Insulation Resistance |
>= 5000 MΩ |
Coupling nut retention force |
450N |
Durability |
>= 500(cycles) |
Contact resistance: |
Center Contact <=1mΩ |
Outer Contact <=1mΩ | |
Voltage Standing Wave Ratio: |
Straight <= 1.15/6GHz |
Right angle <= 1.25/6GHz |
