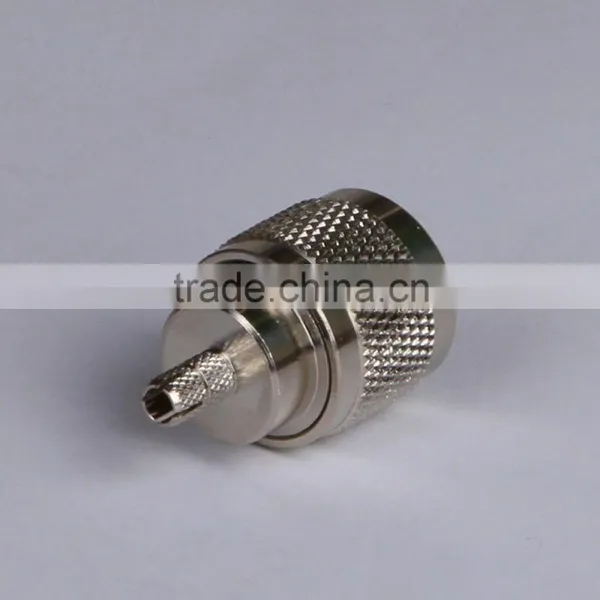

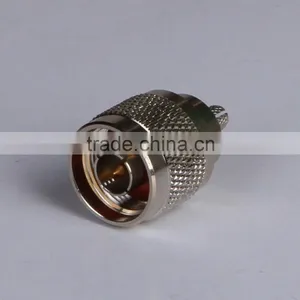

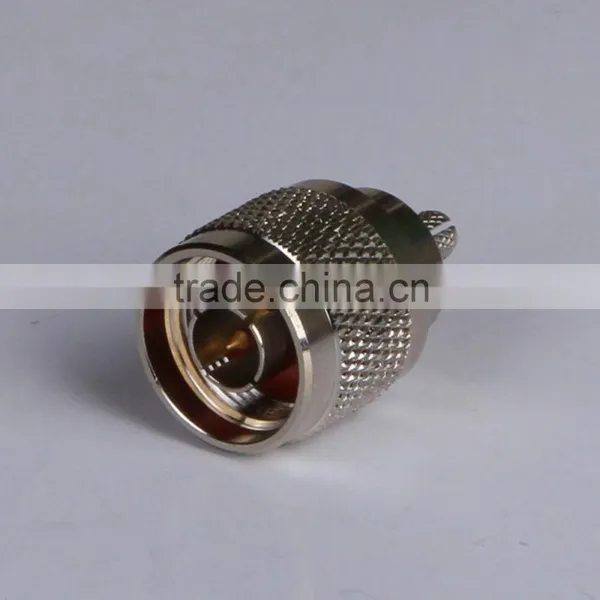

50 Ohms Male N Connector for Coaxial Cable Price, China Supply RF Connector for Communication
US$ 0.32 - 0.56
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-Link
Model Number:
N-C-J3 (double pin)
Payment & Shipping
Payment Methods:
Port of Shipment:
HK port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
N Type Connectors, High Frequency Transformer, 50ohms Female Coaxial AdaptorUS$ 0.21 - 0.92MOQ: 500 Pieces -
Crimp Terminal RF N Connector for Flange, High Frequency With 50 OhmsUS$ 0.38 - 1.62MOQ: 500 Pieces
-
Male Gender and RF Application N Male Automotive Ecu Connector for CableUS$ 0.32 - 1.8MOQ: 500 Pieces
-
N Connector, Jack, Male RF Car Coaxial Cable Connector for Feeder CableUS$ 0.1 - 1MOQ: 100 Pieces
-
N Type Micro-strip RF Male Straight Cable Price for Coaxial ConnectorsUS$ 1.4 - 1.78MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
SH-Link
Model Number
N-C-J3 (double pin)
Type
Other, N
Application
RF
Gender
Male
Product Description
Major Technical Characteristics
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | |||
| Vibration | 100m/S²(10-500Hz)10g | |||
| Impedance | 50Ω | |||
| Frequency range | DC-11GHz | |||
| Working voltage | 500V r.m.s at sea level | |||
| Withstanding voltage | 2500V r.m.s at sea level | |||
| Contact resistance | ||||
| Center contact | ≤1 mΩ | |||
| Outer contact | ≤1 mΩ | |||
| Insulation resistance | ≥5000MΩ | |||
| Center conductor retention force | ≥0.56N | |||
| Insertion loss | ≤0.24dB(6GHz) | |||
| Voltage Standing Wave Ratio | ||||
| Straight | ≤1.15/6GHz | |||
| Right angle | ≤1.25/6GHz | |||
| Coupling nut retention force | 450N | |||
| Durability(mating) | ≥500(Cycles) | |||
Our service advantage
1) factory sell directly & a good service
2) long-term, strong and steady supplying ability
3) delivery time: 5-7 working days
4) ex-factory price and competitive price
5) do as your requirements on package, brand or other designs
