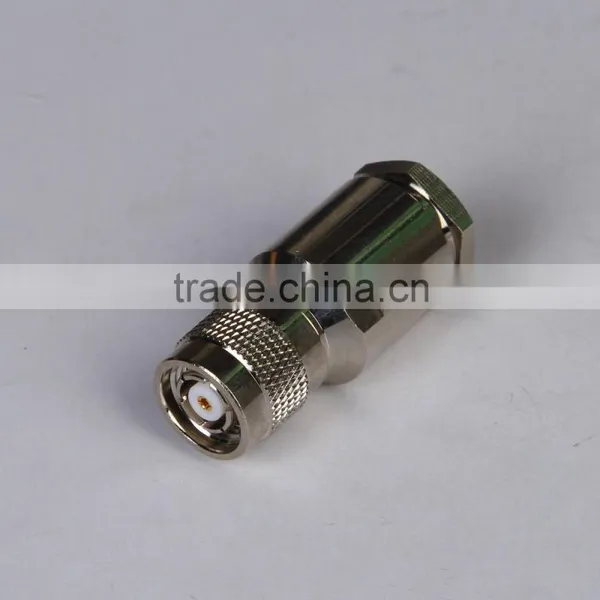

Help Centerrf Coaxial Male TNC Connector for Flexible Cable( 4D-FB)
Related Products
-
RF Coaxial Female TNC Waterproof Connector For Flexible CableUS$ 0.1 - 2MOQ: 100 Pieces -
TNC Female Crimp RF ConnectorUS$ 0.1 - 2MOQ: 100 Pieces
-
rf Micro Coaxial Connector RP-TNC Connectors for LMR240US$ 0.3 - 1MOQ: 100 Pieces
-
Female TNC RF 510 Connector For 4D/LMR240US$ 0.1 - 2MOQ: 100 Pieces
-
TNC Waterproof Connectors for Flexible CableUS$ 0.3 - 1MOQ: 1000 Pieces
TNC connectors interface looks like BNC's except the screw couping. It can be use when the frequency up to 11 GHz ,and performs well in Vibration.often used in radio signal connection with frequency 11 GHz,is widely used in network system,instrument,meter and internet.
| MAJOR TECHNICAL CHARACTERISTICS | ||
| Temperature range | -40—+85℃ | |
| Impedance | Non-constant | |
| Frequency range | DC-300MHz | |
| Working voltage | 750V r.m.s at sea level | |
| Withstanding voltage | 2000V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤5 mΩ | |
| Outer contact | ≤5 mΩ | |
| Insulation resistance | ≥5000MΩ | |
| Center conductor retention force | ≥1.1N | |
| Durability(mating) | ≥500(Cycles) | |
| Material & Plating | ||
| body | brass | nickel plated |
| pin contact | brass | gold or silver plated |
| socket contact | beryllium-copper | gold or silver plated |
| insulator | PTFE or PE | |
| crimp ferrule | copper alloy | nickel plated |
| O-ring sealing | 6146 silicone rubber | |
| Applicable standard | IEC-60169-12 | |
| GB/T 15888 | ||
Shipping :
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways.
1.Faster delivery:Fast delivery 3 days for sample order,15 days for formal order.
2.High warranty,strictly test by QC before shipping.
3.Customized packing and customer's logo are accepted.
4.Sample order is welcome and it can be free if you are real customer.
5.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
6.Excellent service-Nearly no MOQ,Reply,answer,resolve anytime.
7.Strong production ablility:Monthly output is over 50000pcs.
8.Professional factory directly sale all over the wrold.
This product is a universal product, we can customize your
products according to your demand.
