Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > Straight RP TNC Female Coaxial Connector

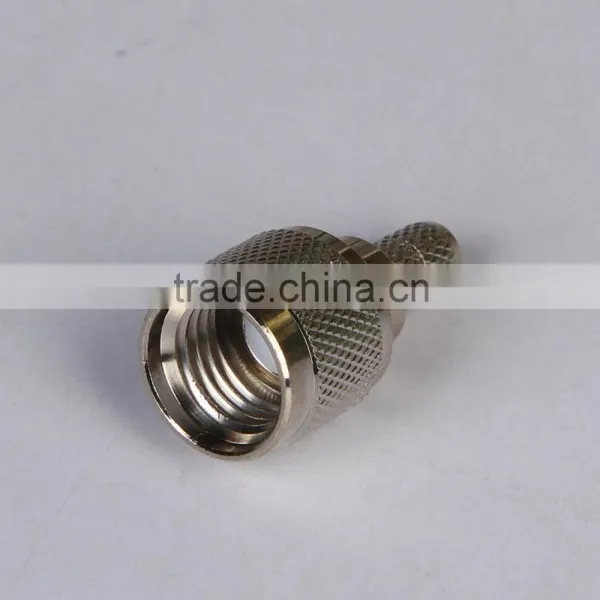

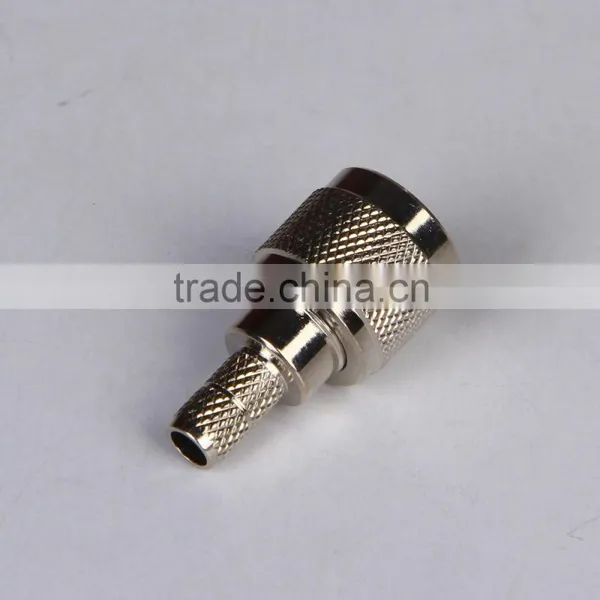

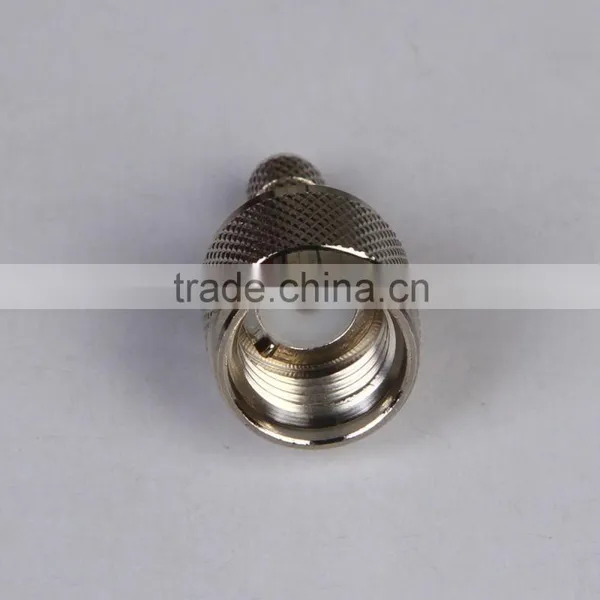

Straight RP TNC Female Coaxial Connector
US$ 0.1 - 3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SH-Link
Model Number:
RPTNC-C-K3
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
RF Crimp Clamp Solder Panel Mount Receptacles TNC Male Female ConnectorsUS$ 0.5 - 1.5MOQ: 10 Pieces -
50 Ohms Female RF Connector, TNC Honda Connector for CommunicationUS$ 0.56 - 0.78MOQ: 100 Pieces
-
50 Ohms Female Gender RP TNC Coaxial Cable Connectors, RF Connector for CommunicationUS$ 0.38 - 0.92MOQ: 100 Pieces
-
rf Coaxial Connector,waterproof TNC Connectors for Flexible CableUS$ 0.3 - 1MOQ: 100 Pieces
-
RF TNC Connector,Straight Crimp Plug for RG-58/LMR-195 Reverse PolarizedUS$ 0.1 - 2MOQ: 100 Pieces
Place of Origin
Guangdong, China
Brand Name
SH-Link
Model Number
RPTNC-C-K3
Type
TNC
Application
RF
Gender
Female
| MAJOR TECHNICAL CHARACTERISTICS | ||
| Temperature range | -40—+85℃ | |
| Impedance | Non-constant | |
| Frequency range | DC-300MHz | |
| Working voltage | 750V r.m.s at sea level | |
| Withstanding voltage | 2000V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤5 mΩ | |
| Outer contact | ≤5 mΩ | |
| Insulation resistance | ≥5000MΩ | |
| Center conductor retention force | ≥1.1N | |
| Durability(mating) | ≥500(Cycles) | |
| Material & Plating | ||
| body | brass | nickel plated |
| pin contact | brass | gold or silver plated |
| socket contact | beryllium-copper | gold or silver plated |
| insulator | PTFE or PE | |
| crimp ferrule | copper alloy | nickel plated |
| O-ring sealing | 6146 silicone rubber | |
| Applicable standard | IEC-60169-12 | |
| GB/T 15888 | |
|
