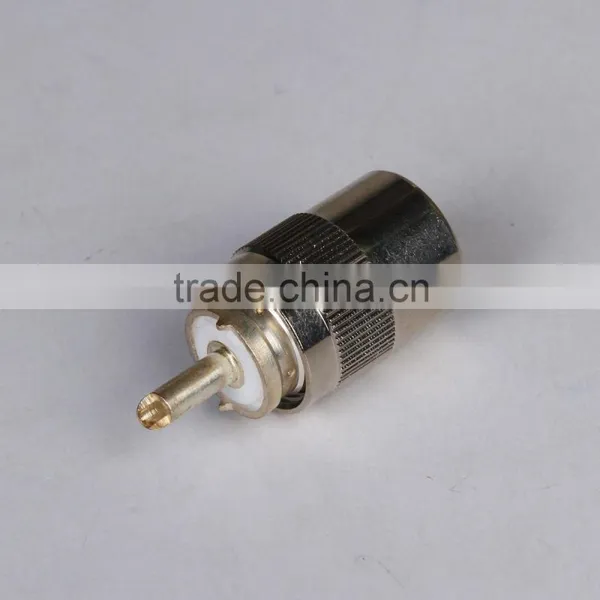

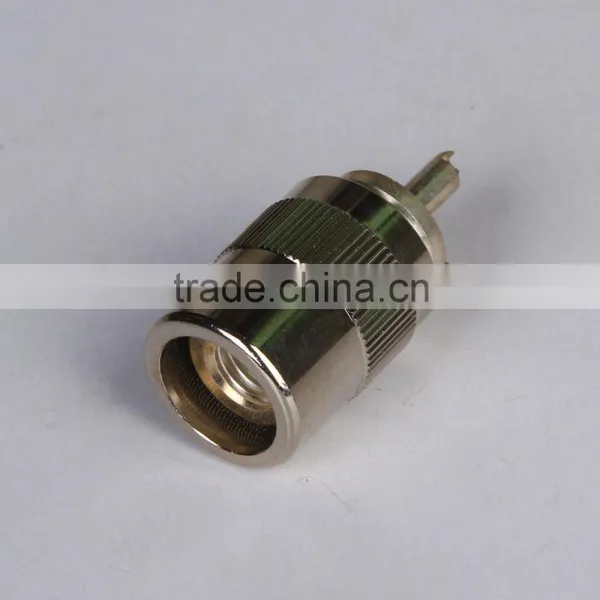

Help CenterUhf Chint Connector Shopping Site Chinese ,xxx Com
Related Products
-
rf Female Flange Adaptor Mount UHF Repeater sc ConnectorUS$ 0.3 - 0.8MOQ: 100 Pieces -
rf Coaxial UHF Connector for RG58 CableUS$ 0.2 - 1MOQ: 1000 Pieces
-
Uhf Pl259 Antenna Twist-on Plug Male Coaxial Straight Connector for Rg58 Rg59 Rg213 CableUS$ 0.5 - 1.5MOQ: 10 Pieces
-
UHF Female Jack RF Coax Connector Solder Cup Cable 4-hole Panel Mount NEW WholesaleUS$ 0.5 - 1.5MOQ: 10 Pieces
-
UHF PL-259 Male Solder RF Connector Plug For RG8 Uhf Coaxial Cable ConnectorUS$ 0.8 - 1.2MOQ: 10 Pieces
| MAJOR TECHNICAL CHARACTERISTICS | ||
| Temperature range | -40—+85℃ | |
| Impedance | Non-constant | |
| Frequency range | DC-300MHz | |
| Working voltage | 750V r.m.s at sea level | |
| Withstanding voltage | 2000V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤5 mΩ | |
| Outer contact | ≤5 mΩ | |
| Insulation resistance | ≥5000MΩ | |
| Center conductor retention force | ≥1.1N | |
| Durability(mating) | ≥500(Cycles) | |
| Material & Plating | ||
| body | brass | nickel plated |
| pin contact | brass | gold or silver plated |
| socket contact | beryllium-copper | gold or silver plated |
| insulator | PTFE or PE | |
| crimp ferrule | copper alloy | nickel plated |
| O-ring sealing | 6146 silicone rubber | |
| Applicable standard | IEC-60169-12 | |
| GB/T 15888 |
Shipping :
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 7-10 working days after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/ FedEx. Pls contact us directly and we will use your preferred ways
Why choose us ?
1.OEM & ODM are warmly welcome
2.Good service and delivery on time
3. high gain with luxury design
4. several years manufacturing experience
5.Customized packing and customer's logo are accepted.
6.Sample order is welcome and it can be free if you are real customer.
7.Accept various transportation ways.like by express, by sea, by air and also specified freight company.
8.Strong production ablility:Monthly output is over 50000pcs.
9.Professional factory directly sale all over the wrold.
This product is a universal product, we can customize your
products according to your demand.
