Specifications

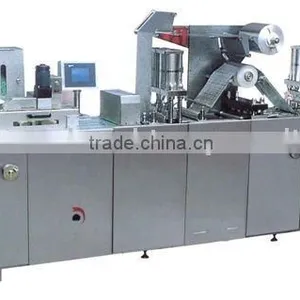

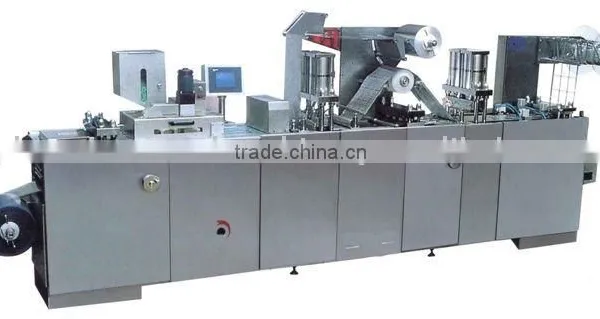

DPP-350DII TYPE AUTOMATIC BLISTER PACKING MACHINEUse and Featurs
ssembly of units separated from overall unit. The structure and performance are similar to the DPP-250DII model. This model is suitable for packing larger size and special shape AL-PL and Paper/Plastic blister, such as large honey pills, injectors, oral liquid and food, medical appliance etc.
Adopts jar shape blister for injectors, ampoule and oral liquid, locking the material as the shape of mouth smaller and inner bigger, reach to the usage of proof vibrating (Patent No.:95204869.8, 95205701.8). Can equipped with automatic feeding device and ampoule printing device.
As special shape article need to feed by hand, it can increase the length of the working table to 1 meter or so.(350DIII model)
Technical Parameters
Capacity: 10-35times/min 2ml ampoule pieces/sheet sheets/time pieces/hour | |
Forming area and depth:≤340×150×35mm | |
Range of adjustable stroke:40-160mm | |
PVC width:≤350mm thickness:0.2-0.6mm | |
power:380V 50HZ(220V 60HZ) |
Total power:6.8KW |
Dimensions of machine (L×W×H):2720×650×1560mm | |
Dimensions of packing case:2820×830×1800mm | |
Separate packing case size:1460×830×1800mm×2 | |
Net weight:1500kg |
Air compressor:≥0.5m3/min |
