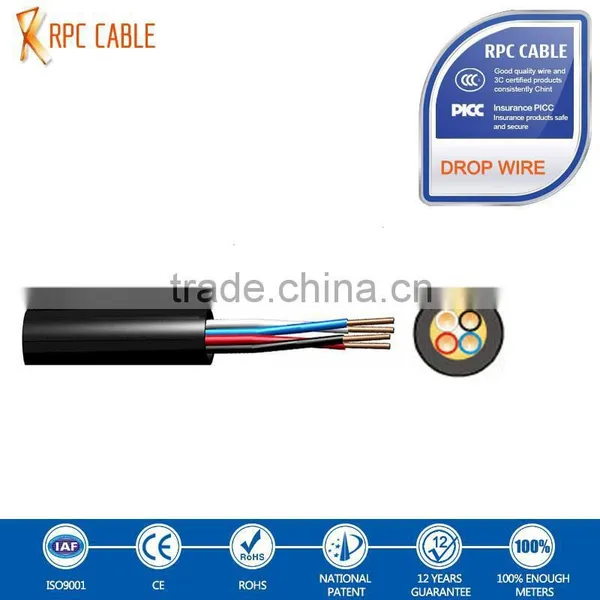

Professional wire cables in telecommunication with competitive price
Application
Self supporting drop wire one pair parallel conductor drop wire intended for aerial service connection to the subscriber .The shape may be in Figure 8 or Figure B structure
COMPLIANCE
-ANSI/ICEA S-89-648-1993
-RoHS Compliant (effective 1/1/10)
Construction
Conductors
Two conductors made of 0.9/1.0/1.023mm copper covered steel wires serve dually as conductor and strength members
Bonding
Bonding of the insulation to the conductors is made to assure the full conductor strength is transferred to the wire support clamps
Insulation
Conductors are laid in a parallel configuration and covered with low density or medium density polyethylene (PE) or Black, flame-, weather- and abrasion- resistant PVC compound extruded over two conductors in a Parallel configuration
Polarity Identification
Polarity ridge on one leg of the web located at 45 above the major axis if the wire cross-section
ElectricalCharacteristics
Nominal Conductor Diameter (mm) |
0.9 |
1.0 |
1.023 |
Conductor Gauge Size (AWG) |
19 |
18.5 |
18 |
Conductor Size (mm2) |
0.636 |
0.785 |
0.827 |
Minimum Insulation Resistance @500V DC(Mohm.km / Mohm.kft) |
30/100 |
30/100 |
30/100 |
Dielectric Strength Conductor to Conductor(3secs) - V DC |
7050 |
7050 |
7050 |
Nominal Insulation Thickness (mm/inch) |
1.02/0.039 |
1.02/0.039 |
1.02/0.039 |
Nominal Insulated Conductor Diameter (mm/inch) |
2.94/0.116 |
3.04/0.117 |
3.06/0.118 |
Mechanical and Thermal Characteristics
Temperature range during operation (fixed state):-35°C – +75°C
Temperature range during installation (mobile state):-25°C – +55°C
Minimum bending radius: 7.5 x Overall Diameter
Dimensions And Weight
Number of |
Insulation |
Nominal Insulation Thickness |
Nominal Overall Dimensions |
Nominal Weight |
2 |
PE |
1.02/0.04 |
3.0x7.0/0.11x0.28 |
32/22 |
2 |
PVC |
1.45/0.06 |
3.9x7.6/0.15x0.30 |
49/33 |
2 |
PVC |
1.02/0.04 |
3.9x7.4/0.15x0.29 |
46/31 |
2 |
PE |
1.02/0.04 |
2.9x7.7/0.11x0.30 |
25/17 |
PACKAGING
-Packages are shipped on pallets covered with stretch wrap
